10 CONNECTING DRAWING

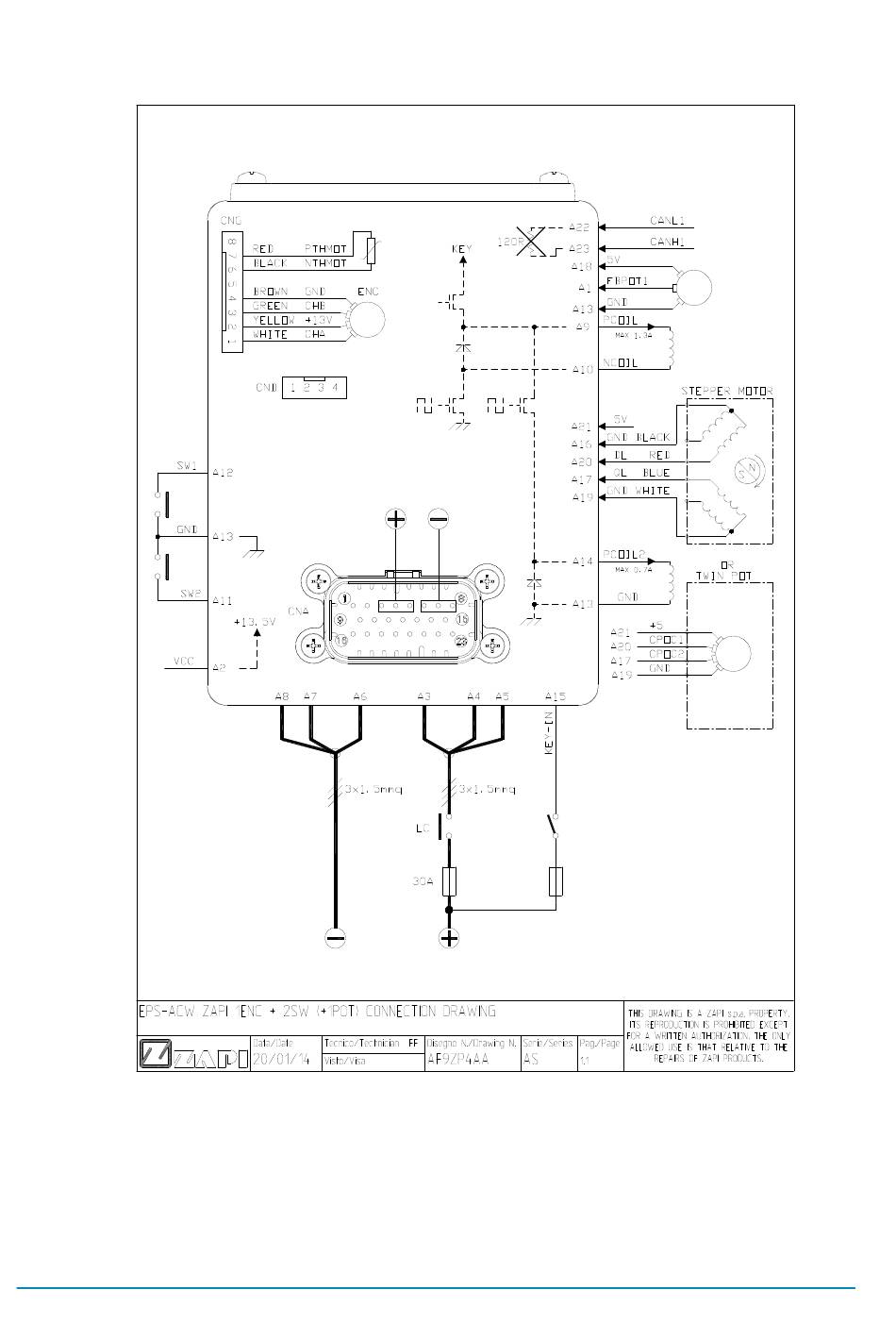

Figure 10-1 shows the connecting drawing for the epsacW suited to be used in Open Loop
(multitun steering wheel) with one encoder and two toggle switches at the Drive Unit. On
customer request, release with two encoders in the motor is available too (arrangement with
two encoders is strongly recommended for closed loop application => position control mode
with twin pot as a command or automatic functions like automatic centering into an aisle).
