7.2 Position Control Mode (Closed Loop)

In a Position Control Mode (Closed Loop), steered wheel angle is one to one
matched with the steering wheel angle.

7.3 Steer Assist Mode (Torque Assisted)

In a Steer Assist Mode (Torque Assisted), the steering motor speed is
proportional to the torque of the operator on the steering handle bar.
Page - 12/90

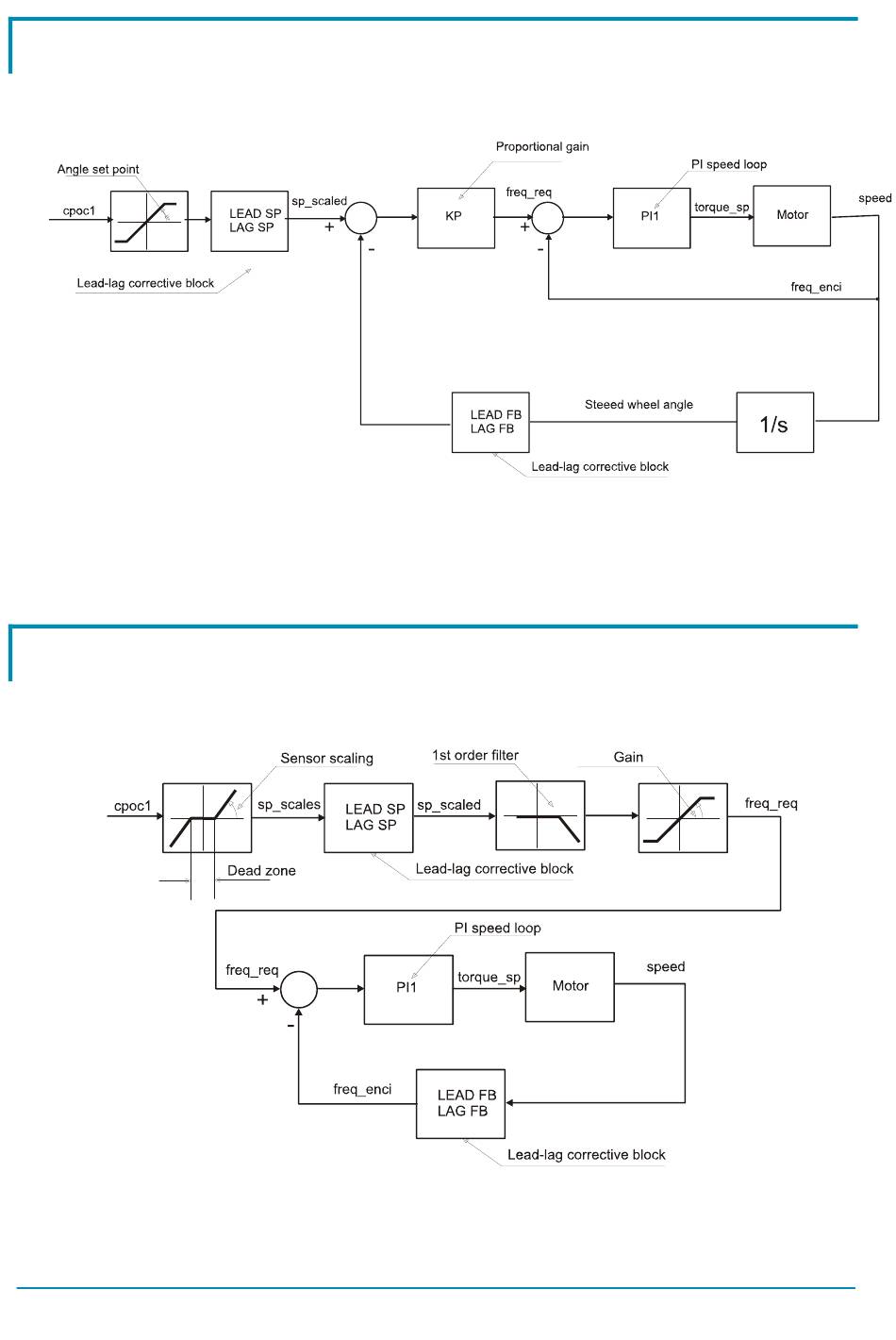

Figure 7.2–1 –Closed Loop Mode Blocks Diagram
Figure 7.3–1 – Steer Assist Blocks Diagram
