3.2 Hardware connection

The device connection includes two steps: connecting the power to the scanner
and connecting the scanner to the computer. The connection line includes a power
adapter connection line and a power data cable. The power adapter provides power to
the scanner. The power data cable has a total of four interfaces, which are respectively
connected to the computer, power adapter and scanner. The specific connection
methods are as follows (refer to Figure 3-4)：
Step 1: Connect the USB interface of the data cable to the USB 3.0 port on the
computer;
Step 2: Connect the power interface and the USB interface of the power data cable
to the corresponding interfaces of the device respectively (when connecting, pay
attention to the direction of the arrow on the cable interface to be consistent, otherwise
the interface may be damaged);
Step 3: Connect the power adapter port to the DC interface of the power data cable;
Step 4: After checking that the above steps are connected correctly, finally connect
the power adapter plug to the power interface。

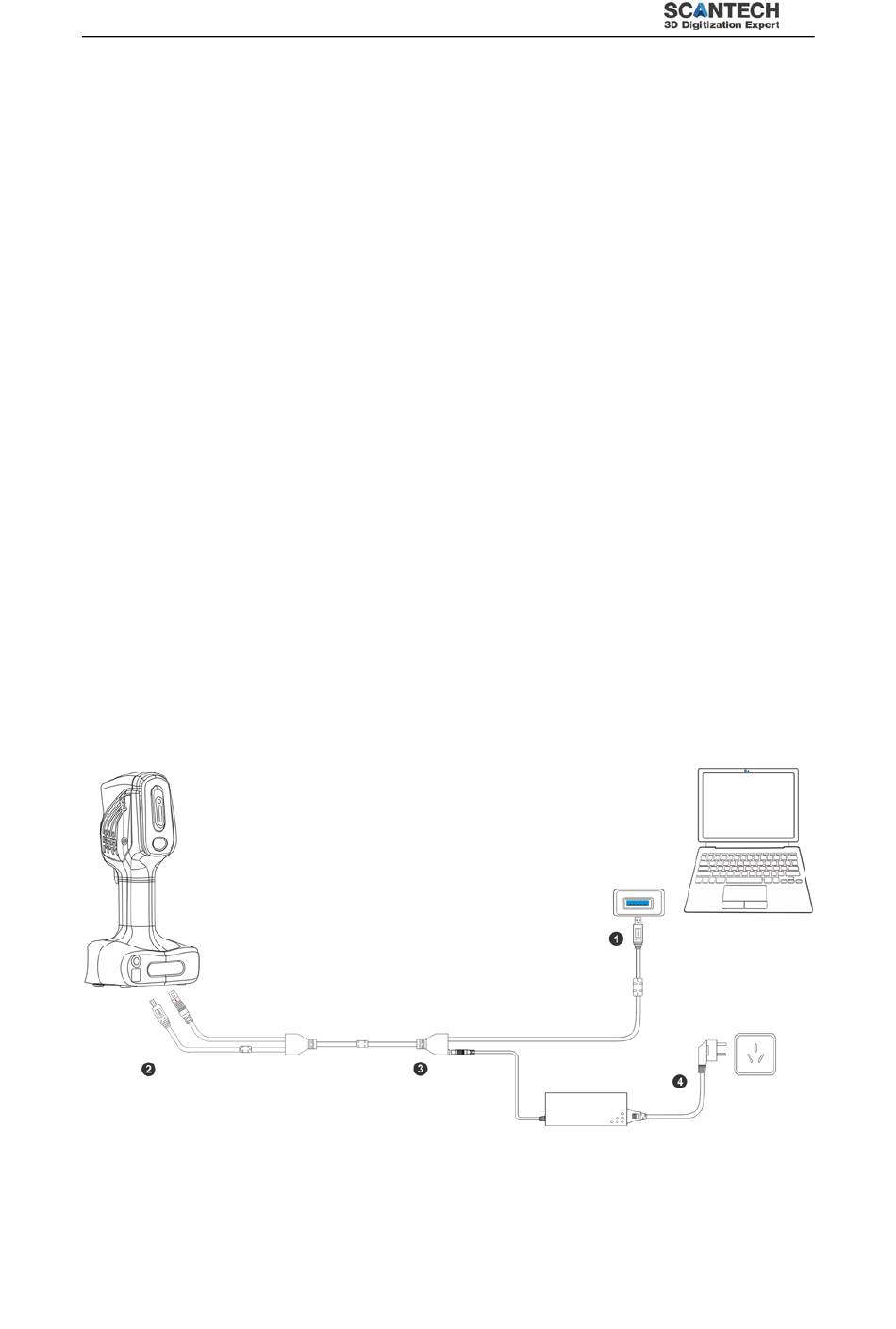

Figure3- 4 Hardware connection
