Summary of Contents for Scantech X2 Spider

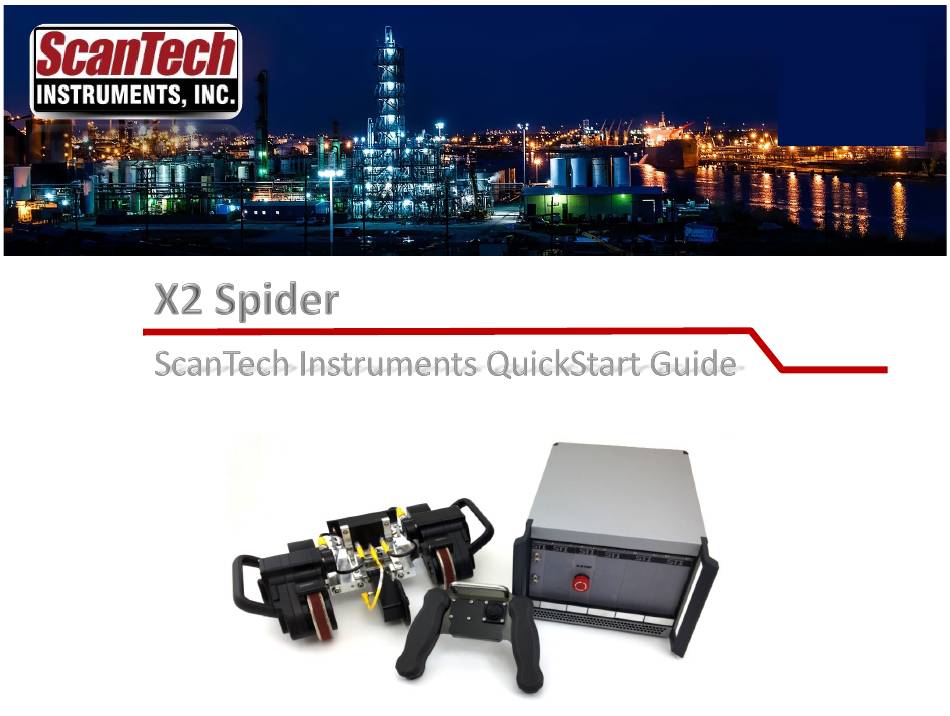

- Page 1 sales@scanndt.com www.scanndt.com Phone: (903) 234-2025 Fax: (903) 234-2033 (Tanks)
- Page 2 After you insert the Analyst key, the Ana- lyst icon will appear by the time in the task tray. Right click Ana- lyst X and select in- stall, follow the install steps. Then right click Anylsy X icon and select start Analyst X.
- Page 3 Full training is recommended. Select Quick Scan Select Utilities Fill out information Fill out information Click Finish For full training contact your ScanTech professional Contact tim@scanndt.com ScanTech Instruments 903 234 2025 Address 5501 Innovation Circle Longview TX 75605...
- Page 4 Calibrating the encoder Select Utilities Select Calibration Defaults to 6’….Push Start Calibration….drive crawler 6’….Push end calibration when finished. Select Calibrate Encoder For full training contact your ScanTech professional Contact tim@scanndt.com ScanTech Instruments 903 234 2025 Address 5501 Innovation Circle Longview TX 75605...
- Page 5 Mode : TD (Time Distance) Triggered on: Flank Waveform: Full (rectified) Unit: Inches UT Setup Settings Transducer: Single element Frequency: 5.0 MHz Gain: 37.0 Gain Increment:1 (meaning when you press the + key the gain will increase by 1 Mode •...
- Page 6 Insert the thickness of the cal step hit apply, then move transducer to another step, re- peat for various points. For full training contact your ScanTech professional Contact tim@scanndt.com ScanTech Instruments 903 234 2025 Address 5501 Innovation Circle Longview TX 75605...
- Page 7 Scan with steps after scan is finished, hit the start button push Yes push joystick to move crawler For full training contact your ScanTech professional Contact tim@scanndt.com ScanTech Instruments 903 234 2025 Address 5501 Innovation Circle Longview TX 75605...
