iReal 2s Handheld Color 3D Scanner User Manual
N o t i c e

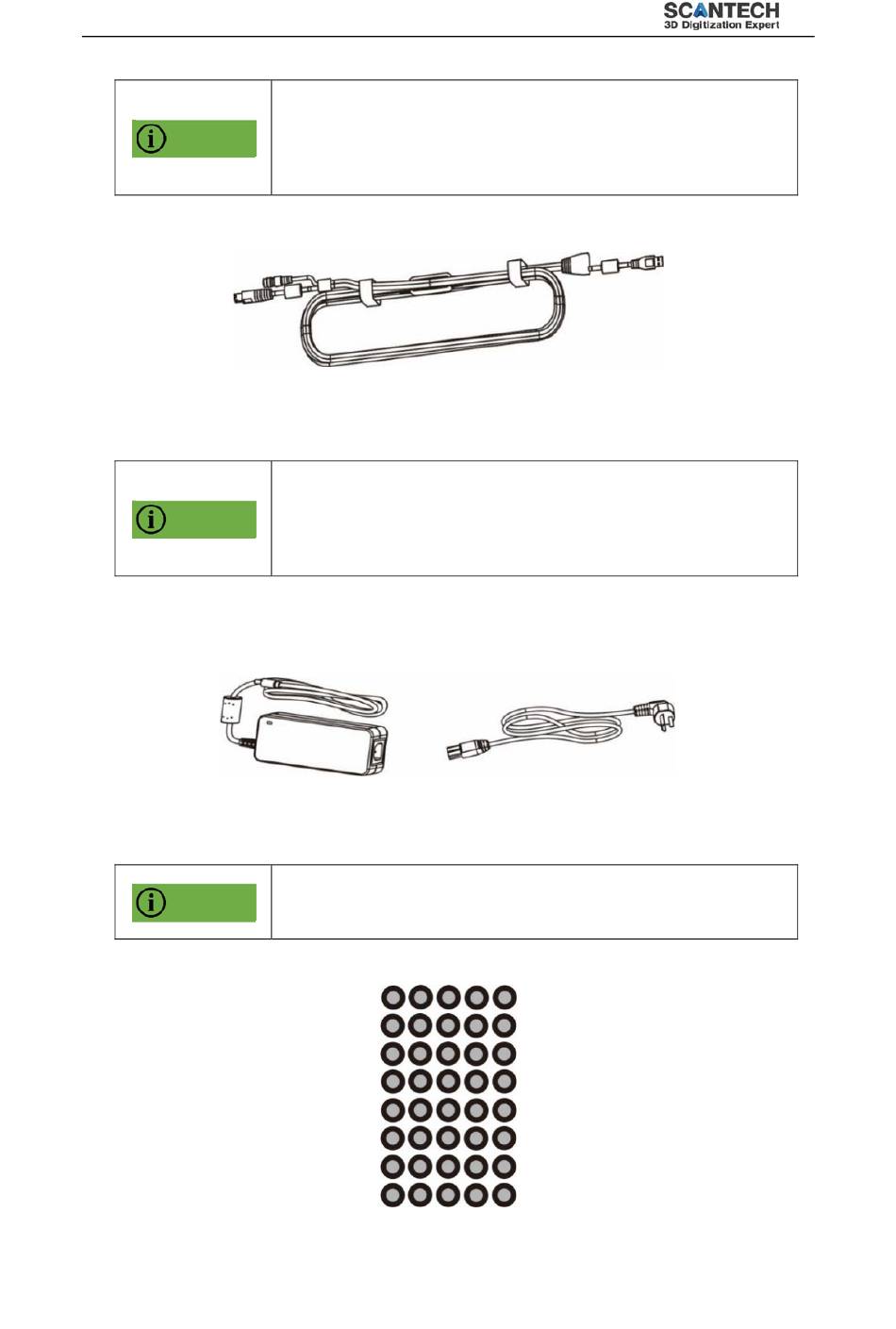

(3) Power data cable: Shape shown as Figure 2-3
Notice
(4) Power adapter: Figure 2-4 shows the shape of the power adapter.
Notice
(5) Marking points: Figure 2-5 shows the shape.
It is mainly used to calibrate camera parameters. In order to ensure
good data quality, the camera needs to be calibrated with a quick
target plate before the scanner is started or when temperature changes
or scan data quality is not good.
Figure2- 3 Power data cable
The DC interface is connected to the power adapter to power the
scanner; the Type A interface is connected to the computer and the
scan data is transmitted to the computer; the Type B interface is
connected to the scanner.
Figure2- 4 Power adapter
Connect to the device through a power data cable to provide external
power.
Figure2- 5 Marking points
3
