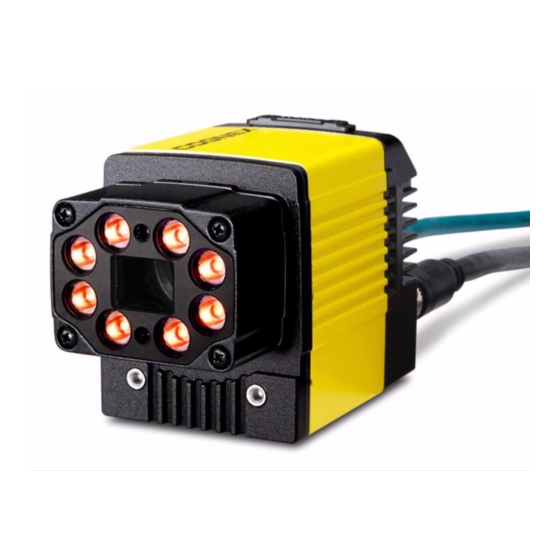

Cognex DataMan 470 Series Quick Reference Manual

Hide thumbs Also See for DataMan 470 Series:

Advertisement

Quick Links

Download this manual
®
DataMan
470 Series
Quick Reference Guide
2021 November 25
Revision: 6.1.11.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DataMan 470 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cognex DataMan 470 Series

Summary of Contents for Cognex DataMan 470 Series

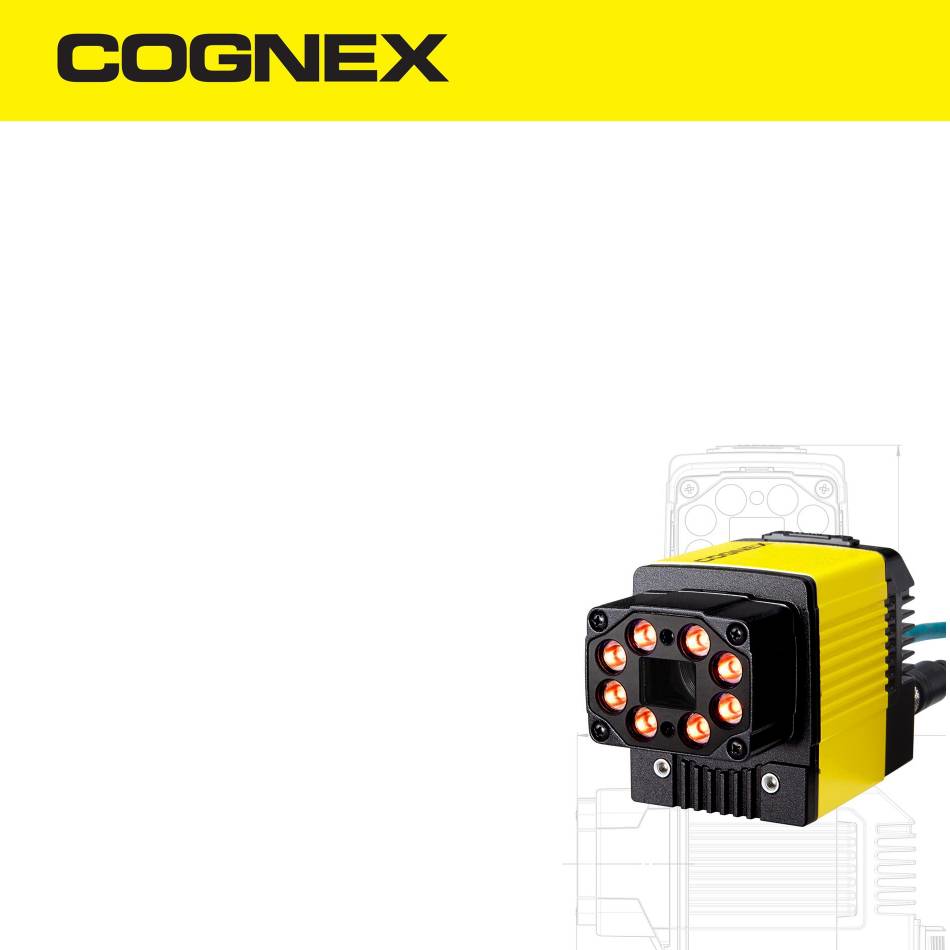

  • Page 1 ® DataMan 470 Series Quick Reference Guide 2021 November 25 Revision: 6.1.11.1...
  • Page 2 Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

  • Page 3: Product Overview

    Product Overview Number Item Lens Illumination LED clusters Mounting holes (M3 x 5mm) Indicator light ring Trigger button Power Train status Read/no-read indicator Network...
  • Page 4 Number Item Error Peak meter SD card slot Tuning button Ethernet External light control Power, I/O, and RS-232...
  • Page 5 DataMan 470 Series Accessories LENS OPTIONS AND COVERS DM474 DM475 Accessory 8 mm F5.6 fixed aperture lens LEC-CFF08- F5.6 12 mm F8 fixed aperture lens LEC-CFF12- 16 mm F8 fixed aperture lens LEC-CFF16- 25 mm F8 fixed aperture lens LEC-CFF25-...
  • Page 6 DM474 DM475 Accessory 8 mm F8 autofocus lens* (use with HPIL wide) DMLN- C8F08-HSLL 10 mm F5 autofocus lens* (use with HPIT) DMLN- C10F05- HSLL 16 mm F8 autofocus lens* (use with HPIT) DMLN- C16F08- HSLL 24 mm F6 autofocus lens* (use with HPIT) DMLN- C24F06- HSLL...
  • Page 7 DM474 DM475 Accessory Short C-Mount cover for C-Mount lenses DM300- CMCOV- Extension kit DM300- DM500 C-Mount cover (use with HPIA) DM500- CMTLC- DM500 Lens cover extender DM500- LNSEXT-...
  • Page 8 DM474 DM475 Accessory Red LED HPIL, 10.3 mm lens DM360- HPIL-RE (Risk Group Red LED Exempt acc. IEC 62471, Risk Group Green LED Aimer Exempt acc. IEC 62471) Polarized red LED HPIL, ESD safe, 10.3 mm lens DM360- HPIL-RE-P (Risk Group Red LED Exempt acc. IEC 62471, Risk Group Green LED Aimer Exempt acc.
  • Page 9 DM474 DM475 Accessory Back light CLRB-F100100G1 Coaxial (DOAL) light CLRO-K5050G1 Spot light CLRS-P14G1 Dark-field light CLRD-D120G1 Brick light, narrow blue IVSL-ODDM-S75-470 Brick light, narrow red IVSL-ODDM-S75-625 Brick light, narrow white IVSL-ODDM-S75-WHI...
  • Page 10 DM474 DM475 Accessory Bar light, wide red IVSL-YLW2X-625 Bar light, narrow red, linear polarizer IVSL-YLW2X-625P Bar light, narrow infrared IVSL-YLW2X-850 Bar light, narrow blue IVSL-YLW2X-470 Bar light, wide red IVSL-YLW2X-625-W Bar light, narrow white IVSL-YLW2X-WHI Bar light, wide white IVSL-YLW2X-WHI-W Bar light, wide white, linear polarizer IVSL-YLW2X-WHIP-W Bar light, blue...
  • Page 11 DM474 DM475 Accessory HPIA, Red narrow DM30X-HPIA3-625 HPIA, Red wide DM30X-HPIA3-625-W HPIA, White narrow DM30X-HPIA3-WHI (Risk Group White LED low risk acc. IEC 62471) HPIA,White wide DM30X-HPIA3-WHI-W (Risk Group White LED low risk acc. IEC 62471) HPIA, Blue narrow DM30X-HPIA3-470 (Risk Group White LED low risk acc.
  • Page 12 DM474 DM475 Accessory Passive Dome front cover DMLA-HPIT-DFCOV Adapter (includes PCB light port adapter) DMLA-HPIT-ADAP470 FIELD OF VIEW EXPANDERS DM474 DM475 Accessory Field of view expander with mount DMA-XPAND-100 Field of view expander DMA-XPAND-150 Field of view expander DMA-XPAND-350...
  • Page 13 OTHER Accessory DM474 DM475 Connection cable RS-232 CCB- M12xDB9Y- Connection cable 24 V, I/O, RS-232 (y CCB- straight/angled, xx specifies length) M12x12Fy- Connection cable 24 V, I/O, RS-232 CCBL-05-01 Power and I/O breakout cable, M12-12, straight, xx CCB- specifies length: 5 m, 10 m, 15 m, PWRIO-xx CCB- angled, xx specifies length: 5 m, 10 m, 15 m...
  • Page 14 Accessory DM474 DM475 LX280-series light cable IVSL-FSK- J5000 I/O extension cable, 5 m straight CKR-200- CBL-EXT Laser aimer (use with HPIA) DM300- AIMER-00 Connection module (4 or 1 camera) DMA-CCM- (xx can be US, EU, UK or JP) 4X-xx DMA-CCM- 1-xx Mounting Bracket Kit DMBK-470-...
  • Page 15 Accessory DM474 DM475 Pivot Mounting Bracket (for logistics) DMBK- DMPIVOT- External heat sink DMHS-370- Note: For use with Xpand and over 40° C environments only. WARNING: For DM300-AIMER-00 and HPIT equipped with laser: This device has been tested in accordance with IEC60825-1 3rd ed., 2014., and has been certified to be under the limits of a Class 2 Laser device.
  • Page 16 Dimensions Light emitting area Optical axis DataMan 474 with High Power Integrated Light (HPIL)
  • Page 17 DataMan 470 Series with High power Illumination Accessory (HPIA)
  • Page 18 DataMan 470 Series with High Power Integrated Torch (HPIT)
  • Page 19 DataMan 470 Series with High Power Integrated Torch (HPIT) and Passive Diffuser...

  • Page 20: Field Of View And Reading Distances

    Field of View and Reading Distances Note: Due to tolerances, ranges can vary by +/- 5 % from unit to unit. Distances in mm / 1D min code Distances in mm / 2D min code Device 8 mm HSLL 8 mm HSLL 5 MIL 5 MIL 7.5 MIL...
  • Page 21 Distances in mm / 1D min code Distances in mm / 2D min code Device 10 mm HSLL 10 mm HSLL 6 MIL 6 MIL 8 MIL 8 MIL 10 MIL 10 MIL DM474 13 MIL 13 MIL 1104 15 MIL 15 MIL 1471 20 MIL 1013...
  • Page 22 Distances in mm / 1D min code Distances in mm / 2D min code Device 16 mm HSLL 16 mm HSLL 6 MIL 6 MIL 8 MIL 8 MIL 1125 10 MIL 10 MIL DM47x 1462 13 MIL 1006 13 MIL 1687 15 MIL 1160 15 MIL...
  • Page 23 Distances in mm / 1D min code Distances in mm / 2D min code Device 24 mm HSLL 24 mm HSLL 1029 6 MIL 6 MIL 1370 8 MIL 8 MIL 1711 10 MIL 1178 10 MIL DM47x 2223 13 MIL 1530 13 MIL 2564 15 MIL...
  • Page 24 Distances in mm / 1D min code Distances in mm / 2D min code Device 35 mm HSLL 35 mm HSLL 1300 6 MIL 6 MIL 1750 8 MIL 1110 8 MIL 2170 10 MIL 1390 10 MIL DM47x 2820 13 MIL 1800 13 MIL 3250...

  • Page 25: Connecting The Reader

    Connecting the Reader CAUTION: Make sure that the Ethernet cable is grounded at the far end. Whatever this cable is plugged into (usually a switch or router) should have a grounded Ethernet connector. Use a digital voltmeter to validate the grounding.

  • Page 26: Installation

    Cognex > DataMan Software vx.x.x > Documentation. Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are "keyed" to fit the connectors on the DataMan system;...
  • Page 27 Mounting CAUTION: Make sure that the reader is grounded, either by mounting the reader to a fixture that is electrically grounded or by attaching a wire from the reader’s mounting fixture to frame ground or Earth ground. If using a ground wire, attach it to one of the four mounting points on the back plate of the reader;...

  • Page 28: Connect The Ethernet Cable

    Connect the Ethernet Cable CAUTION: Make sure that the Ethernet cable is grounded at the far end. Whatever this cable is plugged into (usually a switch or router) should have a grounded Ethernet connector. Use a digital voltmeter to validate the grounding.

  • Page 29: Connect The Breakout Cable

    Connect the Breakout Cable CAUTION: To reduce emissions, connect the far end of the Breakout cable shield to frame ground. Note: Make sure that the reader is not receiving power before you perform any I/O wiring or adjustments to I/O devices. You can clip unused wires short or use a tie made of non-conductive material to tie them back.Keep bare wires separated from the +24 VDC wire.
  • Page 30 DataMan 470 Specifications Specification DataMan 470 Weight 373 g with S-mount adapter, without rubber front cover Power 24 VDC ±10%, 1.5 A maximum (HPIL* and HPIT**) Consumption 24 VDC , 250 mA maximum (non-HPIL)* 24 VDC, 1000 mA (HPIA)*** Supplied by LPS or NEC class 2 only. *HPIL denotes one of the DM360-HPIL-xxx-xx or DMLT-HPIL-xxx-xx accessories.
  • Page 31 Specification DataMan 470 Shock IEC 60068-2-27: 18 shocks (3 shocks in each polarity in each (X, Y, Z) axis) 80 Gs (800 m/s (Shipping and 11 ms, half-sinusoidal) with cables or cable plugs and appropriate lens cover attached. Storage) Vibration IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10 Gs (10 to 500 Hz at (Shipping and 100 m/s...
  • Page 32 Max. 37 Hz at Full Resolution Lens Type See DataMan 470 Series Accessories on page 5 Limitations to C-Mount lenses: The length of the thread cannot exceed 5.4 mm. For a chosen lens, the distance from the C-mount shoulder to the bottom of the lens cannot exceed 5.4 mm.
  • Page 34 LED and Laser Wavelengths The following table shows LED types and the related peak wavelengths: λ [nm] WHITE 6500K (Color Temperature) BLUE HIGH POWER RED TORCHLIGHT - WHITE 2500-5000K (Color Temperature) TORCHLIGHT - RED...
  • Page 35 Regulations/Conformity Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. DataMan 470 has Regulatory Model R00062, and meet or exceed the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow.
  • Page 36 2014/30/EU Electromagnetic Compatibility Directive and the 2011/65/EU RoHS Directive. For further information, please contact: Cognex Corporation, One Vision Drive, Natick, MA 01760, USA. Cognex Corporation shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE.

  • Page 37: For European Community Users

    For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 39 表 示 用 于 本 部 件 的 至 少 一 种 均 质 材 料 中 所 含 的 危 害 物 质 超 过 GB / T26572 - 2011 的 限 制 要 求 。 Copyright © 2021 Cognex Corporation. All Rights Reserved.
