Model: R72616A
Wireless PM2.5/Temperature/Humidity Sensor
Wireless PM2.5 /
Temperature / Humidity Sensor
R72616A
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the R72616A and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R72616A

Summary of Contents for netvox R72616A

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ..............2 2. Appearance ..............3 3. Main Feature ..............4 4. Set up Instruction ............. 4 5. Data Report ..............6 6. Installation ............... 8 7. Information about Battery Passivation ......10 8. Important Maintenance Instruction ........ 11...

  • Page 3: Introduction

    R72616A is a ClassA type device based on the LoRaWAN protocol of Netvox and is compatible with the LoRaWAN protocol. R72616A can connect with the detector of PM2.5, temperature, and humidity, and report the collected values to the corresponding gateway.

  • Page 4: Appearance

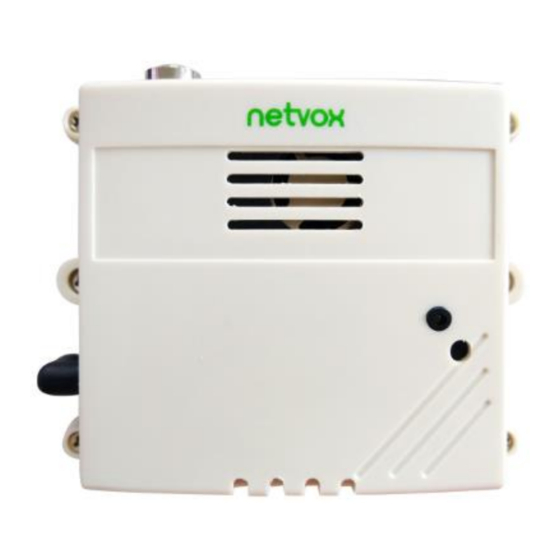

    2. Appearance Temperature and Humidity Sensor PM2.5 Sensor Battery Pack Batteries (ER14505x8 pcs) Indicator Function Key DC in...

  • Page 5: Main Feature

     Low power consumption and long battery life  Note: Battery life is determined by the sensor reporting frequency and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find battery life of various models in different configurations. 4. Set up Instruction...
  • Page 6 6.8 V Threshold Restore to Factory Setting R72616A has the function of the power-down saving the memory of network-joining information. This function acquiesces in turn off, that is, it will rejoin every time when it is power on. If the device is turned on by the...

  • Page 7: Data Report

    (6) It would take 45 seconds for the sensor to sample and process the collected value after pressing the button, please be patient. The device reported data parsing please refer to Netvox LoraWAN Application Command document and Netvox Lora Command Resolver...
  • Page 8 Reserved 0x82 ReportRsp (2bytes Unit: s) (2bytes Unit: s) (5Bytes, Fixed 0x00) （1） Configure R72616A device parameters MinTime = 30s, MaxTime = 3600s (3600> 30 * 2 + 10) Downlink: 016A001E0E100000000000 Device Return: 816A000000000000000000 (configuration success) 816A010000000000000000 (configuration failure) Note: 1.

  • Page 9: Installation

    This product does not have a waterproof function. After the network joining is completed, please place it indoor. (1) Environmental sensor - temperature and humidity _PM2.5 (R72616A) and battery box are fixed by screws at the factory for transportation reasons. Before installation, the screws need to be unscrewed (red circle below).
  • Page 10 Screws Fixed (4) When the ambient sensor - temperature and humidity _PM2.5 (R72616A) regularly reports data according to Max Time - temperature, humidity and PM2.5 concentration value, the default Max Time are 180 seconds. Note: Max Time can be modified by the downlink command, but it is not recommended to set this time too small to avoid excessive battery drain.

  • Page 11: Information About Battery Passivation

    7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 12: Important Maintenance Instruction

    8. Important Maintenance Instruction The device is a product with superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits.
