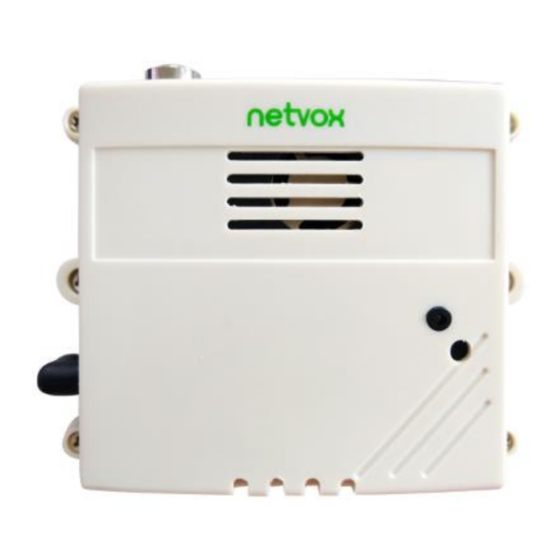

- Page 1 R72616A Model： Wireless PM2.5 / Temperature & Humidity Environment Sensor Wireless PM2.5 / Temperature & Humidity Environment Sensor User Manual...
-
Page 2: Table Of Contents
Table of Content 1. Introduction ....................................... 2 2. Appearance ....................................... 3 3. Main Features ....................................4 4.Set up Instruction ....................................4 5. Data Report ....................................... 5 6. Installation ......................................6 7. Important Maintenance Instruction ..............................7... -
Page 3: Introduction
R72616A is a ClassA type device based on the LoRaWAN open protocol of Netvox and is compatible with the LoRaWAN protocol. R72616A is unmasked for indoor inspection. R72616A is connected to a variety of sensors. As detectors for PM2.5, temperature and humidity, the values collected by the sensor are reported to the corresponding gateway. -
Page 4: Appearance
2. Appearance Function Key PM2.5 Sensor Indicator Temperature and Humidity Sensor Front Batteries (ER14505x8 pcs) Back Side view DC in R72616A... -
Page 5: Main Features
1. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor inductance Note: and other energy storage components. 2. The R72616A does not have a built-in testing mode and needs to be programmed separately. Network Joining Turn on the device to search the network to join. -
Page 6: Data Report
The interval between two reports must be the maximum time The R72616A device does not support the ReportChange function, that is, the configuration is invalid. The report data string sent is always sent according to the ReportMaxTime cycle (start from the first data). -
Page 7: Installation
This product does not have a waterproof function. After the network joining is completed, please place it indoor. (1) Environmental sensor - temperature and humidity _PM2.5 (R72616A) and battery box are fixed by screws at the factory for transportation reasons. -
Page 8: Important Maintenance Instruction
(4) When the ambient sensor - temperature and humidity _PM2.5 (R72616A) regularly reports data according to Max Time - temperature, humidity and PM2.5 concentration value, the default Max Time are 180 seconds. Note: Max Time can be modified by the downlink command, but it is not recommended to set this time too small to avoid excessive battery drain.
