Model: R72615A

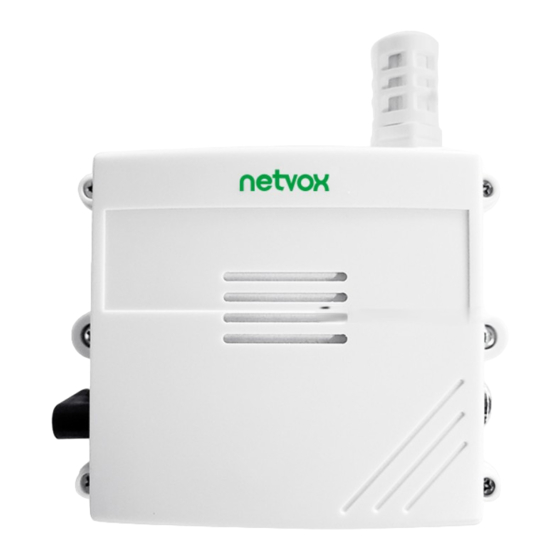

Wireless CO2/Temperature/Humidity Sensor
Wireless CO2/
Temperature/Humidity Sensor
R72615A
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall
be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R72615A and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R72615A

Summary of Contents for netvox R72615A

  • Page 1 User Manual Copyright©Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ....................................... 2 2. Appearance ......................................3 3. Main Features ....................................3 4.Set up Instruction ....................................4 5. Data Report ....................................... 5 6. Installation ......................................8 7. Information about Battery Passivation ............................10 7.1 To determine whether a battery requires activation........................ 10 7.2 How to activate the battery ..............................

  • Page 3: Introduction

    1. Introduction R72615A is a ClassA type device based on the LoRaWAN open protocol. R72615A is connected to a variety of sensors. As detectors for CO2, temperature and humidity, the values collected by the sensor are reported to the corresponding gateway.

  • Page 4: Appearance

    2. Appearance Temperature and Humidity Sensor CO2 Sensor Battery Pack Batteries (ER14505x8 pcs) Indicator Function Key DC in 3. Main Features  Compatible with LoRaWAN  7.2V battery power supply  Simple operation and setting  CO2 and temperature and humidity detection ...

  • Page 5: Set Up Instruction

    The green indicator flashes for 20 times: success The green indicator remains off: fail The device is in the network: The green indicator flashes once,R72615A will send first data Press once after 180 seconds then send second data after 30 seconds again.

  • Page 6: Data Report

    2. The interval between two reports must be the maximum time 3. R72615A does not support the ReportChange so the configuration is invalid. 4. Report cycle will be based on ReportMaxTime period when sending data packet (beginning to the end of the first data as a period) 5.
  • Page 7 Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes)
  • Page 8 MaxTime 0x82 Reserved ReportRsp (2bytes Unit:s) (2bytes Unit:s) (1) Configure the R72615A parameters: MinTime = 30s, MaxTime = 3600s Downlink: 0109001E0E100000000000 Devices return: 8109000000000000000000 (the configuration is successful) 8109010000000000000000 (the configuration is failed) (2) Read the R72615A device configuration parameters...

  • Page 9: Installation

    6. Installation 1. Due to transportation reasons, the R72615A and the battery pack will be screwed in advance at the factory. Please unscrew the screws before installation (red circle below). 3. R72615A uses battery pack to supply power. Please unscrew the screws at the four corners of the battery pack before installation and insert 8 ER14505 3.6V batteries into the battery compartment (4 sections on the front and 4 sections on the back side) as shown in Figure 1&2...
  • Page 10 Note: Do not install the device in a metal shielded box or environment with other electrical equipment around it to avoid affecting the wireless transmission of the device. 5. R72615A will report data regularly according to MaxTime(default:720 min), and take about 180 seconds for the CO sensor to sample and process the collected CO value.

  • Page 11: Information About Battery Passivation

    7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 12: Important Maintenance Instruction

    8. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture or any liquid might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.
