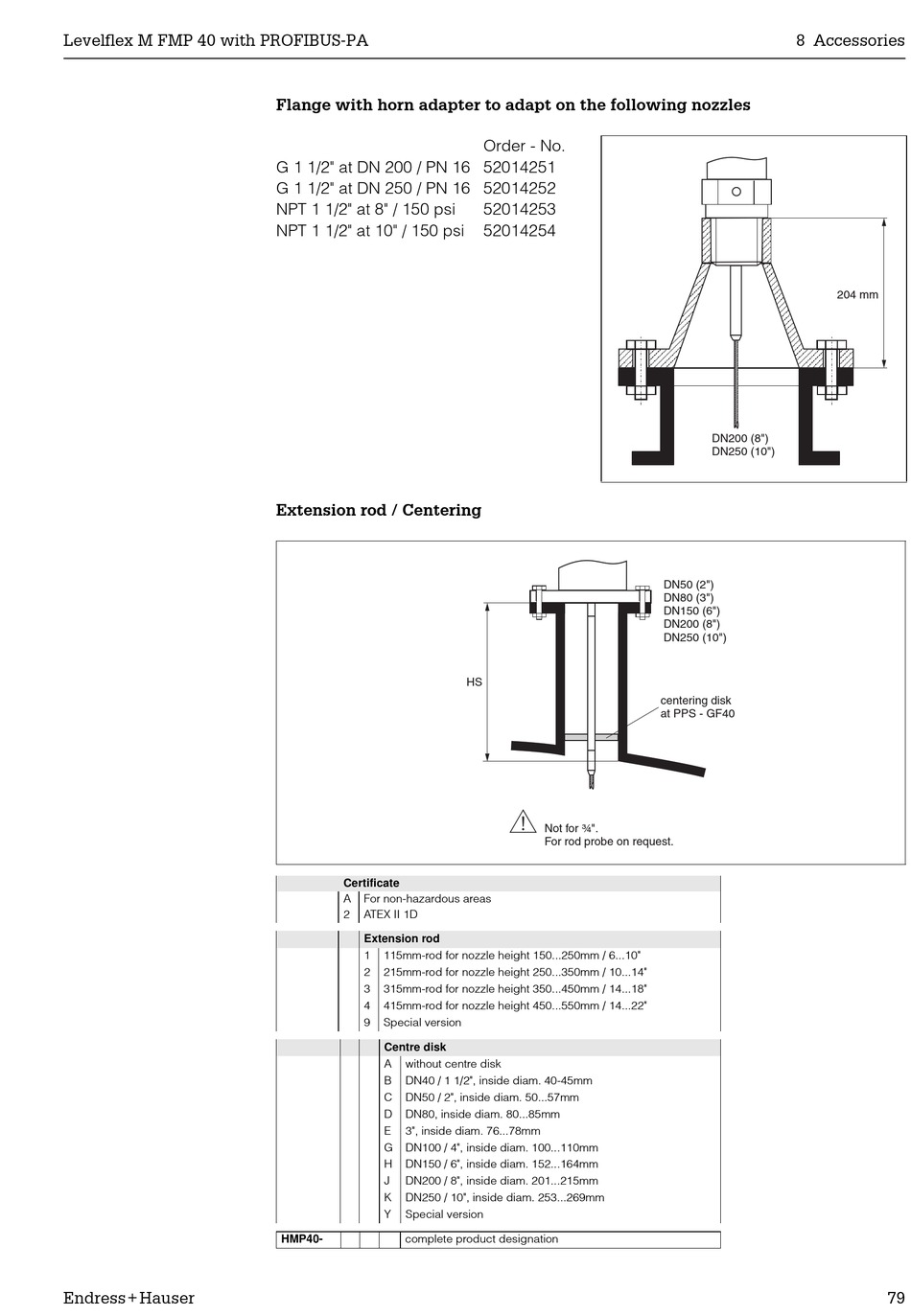

Flange with horn adapter to adapt on the following nozzles
G 1 1/2" at DN 200 / PN 16 52014251
G 1 1/2" at DN 250 / PN 16 52014252
NPT 1 1/2" at 8" / 150 psi
NPT 1 1/2" at 10" / 150 psi
Extension rod / Centering
Certificate
A For non-hazardous areas
2 ATEX II 1D
Extension rod
1 115mm-rod for nozzle height 150...250mm / 6...10"
2 215mm-rod for nozzle height 250...350mm / 10...14"
3 315mm-rod for nozzle height 350...450mm / 14...18"
4 415mm-rod for nozzle height 450...550mm / 14...22"
9 Special version
Centre disk
A without centre disk
B DN40 / 1 1/2", inside diam. 40-45mm
C DN50 / 2", inside diam. 50...57mm
D DN80, inside diam. 80...85mm
E 3", inside diam. 76...78mm
G DN100 / 4", inside diam. 100...110mm
H DN150 / 6", inside diam. 152...164mm
J DN200 / 8", inside diam. 201...215mm
K DN250 / 10", inside diam. 253...269mm
Y Special version
HMP40- complete product designation
Order - No.
52014253
52014254
HS
#
Not for ¾".
For rod probe on request.
8 Accessories
DN200 (8")
DN250 (10")
DN50 (2")
DN80 (3")
DN150 (6")
DN200 (8")
DN250 (10")
centering disk
at PPS - GF40
204 mm
