Levelflex M FMP 40 with PROFIBUS-PA
Endress+Hauser
11.4.2 Equipment architecture
Stand-alone
The Levelflex M can be used for measurement in a stilling well / bypass as well as in free
space.
System integration via PROFIBUS-PA

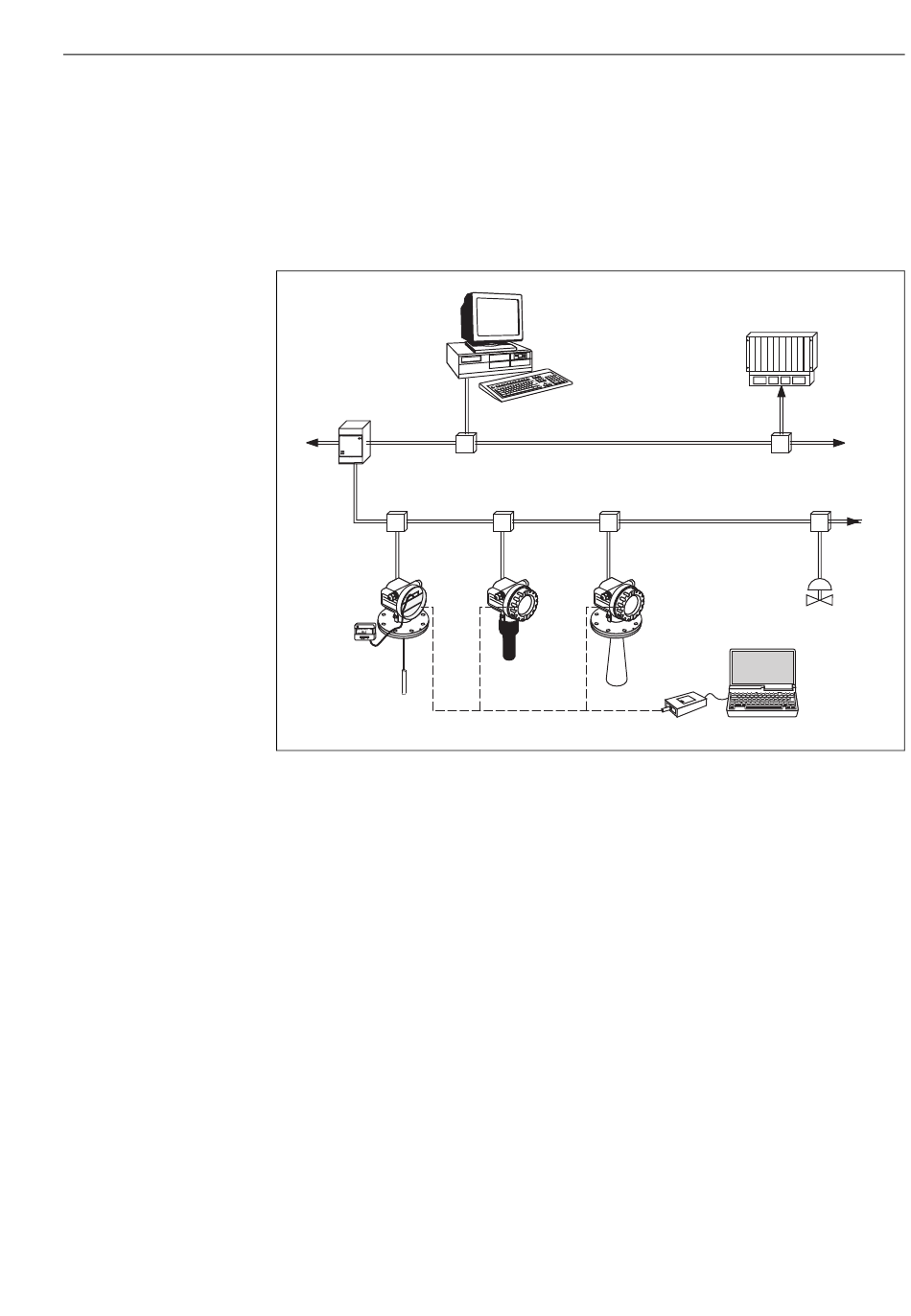

The complete measuring system consists of:
segment coupler
ENDRESS + HAUSER
PROFIBUS-PA
operating and
display module
VU 331
ENDRESS + HAUSER
%
– +
E
Levelflex M
On-site operation:
• with display and operating module VU 331,
• with a Personal Computer, FXA 193 and the operating software ToF Tool.
The ToF Tool is a graphical operating software for instruments from Endress+Hauser
that operate based on the time-of-flight principle (radar, ultrasonic, guided micro-
impulse). It assists with commissioning, securing data, signal analysis and
documentation of the measuring point.
Remote operation:
with a Personal Computer, Profiboard resp. Proficard and the operating software
COMMUWIN II respectively ToF Tool.
personal computer
e.g. with
Commuwin II or
ToF Tool and
Profibard resp. Proficard
PROFIBUS-DP
Micropilot M
Prosonic M
11 Appendix
PLC
More
Functions
(valves etc)
FXA 193
ToF Tool
101
