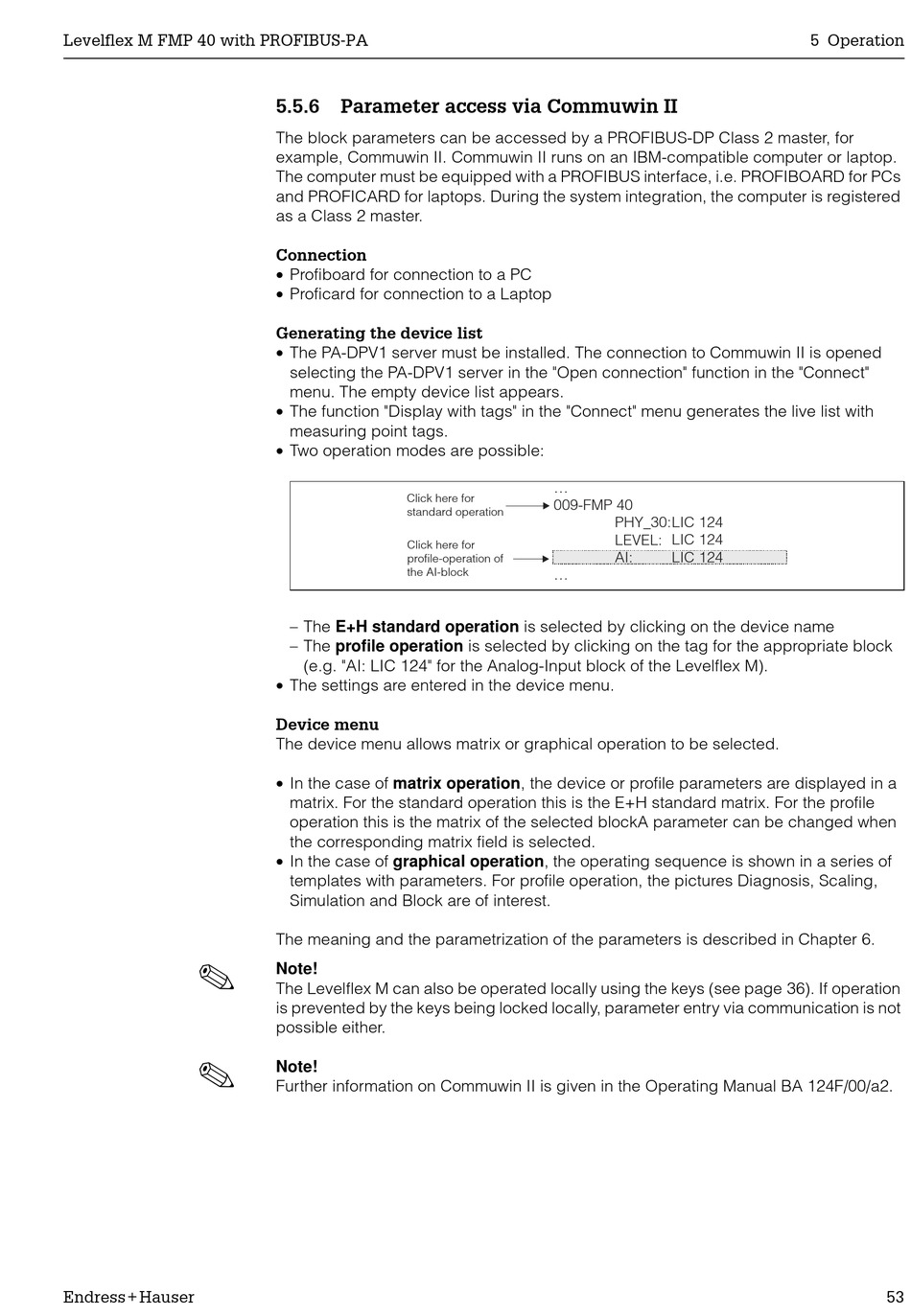

5.5.6 Parameter access via Commuwin II
The block parameters can be accessed by a PROFIBUS-DP Class 2 master, for
example, Commuwin II. Commuwin II runs on an IBM-compatible computer or laptop.
The computer must be equipped with a PROFIBUS interface, i.e. PROFIBOARD for PCs
and PROFICARD for laptops. During the system integration, the computer is registered
as a Class 2 master.
Connection
• Profiboard for connection to a PC
• Proficard for connection to a Laptop
Generating the device list
• The PA-DPV1 server must be installed. The connection to Commuwin II is opened
selecting the PA-DPV1 server in the "Open connection" function in the "Connect"
menu. The empty device list appears.
• The function "Display with tags" in the "Connect" menu generates the live list with
measuring point tags.
• Two operation modes are possible:
Click here for
standard operation
Click here for
profile-operation of
the AI-block
– The E+H standard operation is selected by clicking on the device name
– The profile operation is selected by clicking on the tag for the appropriate block
(e.g. "AI: LIC 124" for the Analog-Input block of the Levelflex M).
• The settings are entered in the device menu.
Device menu
The device menu allows matrix or graphical operation to be selected.
• In the case of matrix operation, the device or profile parameters are displayed in a
matrix. For the standard operation this is the E+H standard matrix. For the profile
operation this is the matrix of the selected blockA parameter can be changed when
the corresponding matrix field is selected.
• In the case of graphical operation, the operating sequence is shown in a series of
templates with parameters. For profile operation, the pictures Diagnosis, Scaling,
Simulation and Block are of interest.
The meaning and the parametrization of the parameters is described in Chapter 6.
Note!
The Levelflex M can also be operated locally using the keys (see page 36). If operation
is prevented by the keys being locked locally, parameter entry via communication is not
possible either.
Note!
Further information on Commuwin II is given in the Operating Manual BA 124F/00/a2.
...
