3 Mounting
22
Mounting Location
• Recommended distance B wall-
mounted rope probe: ~1/6...1/4 of the
container diameter (min. 100 mm/4",
concrete silos: min. 500 mm).
• Not central (2) in metallic tanks.
• Not in the filling curtain (3).
• Please order the probe length such that
it ends approx 30 mm above the floor of
the tank.
• Temperature conditions must be met.
• It is recommended that a protective
cover (1) be used, in order to protect the
transmitter against direct sunlight or
rain. Mounting and demounting are
carried out simply with a clamp (see
»Accessories« on page 78.).

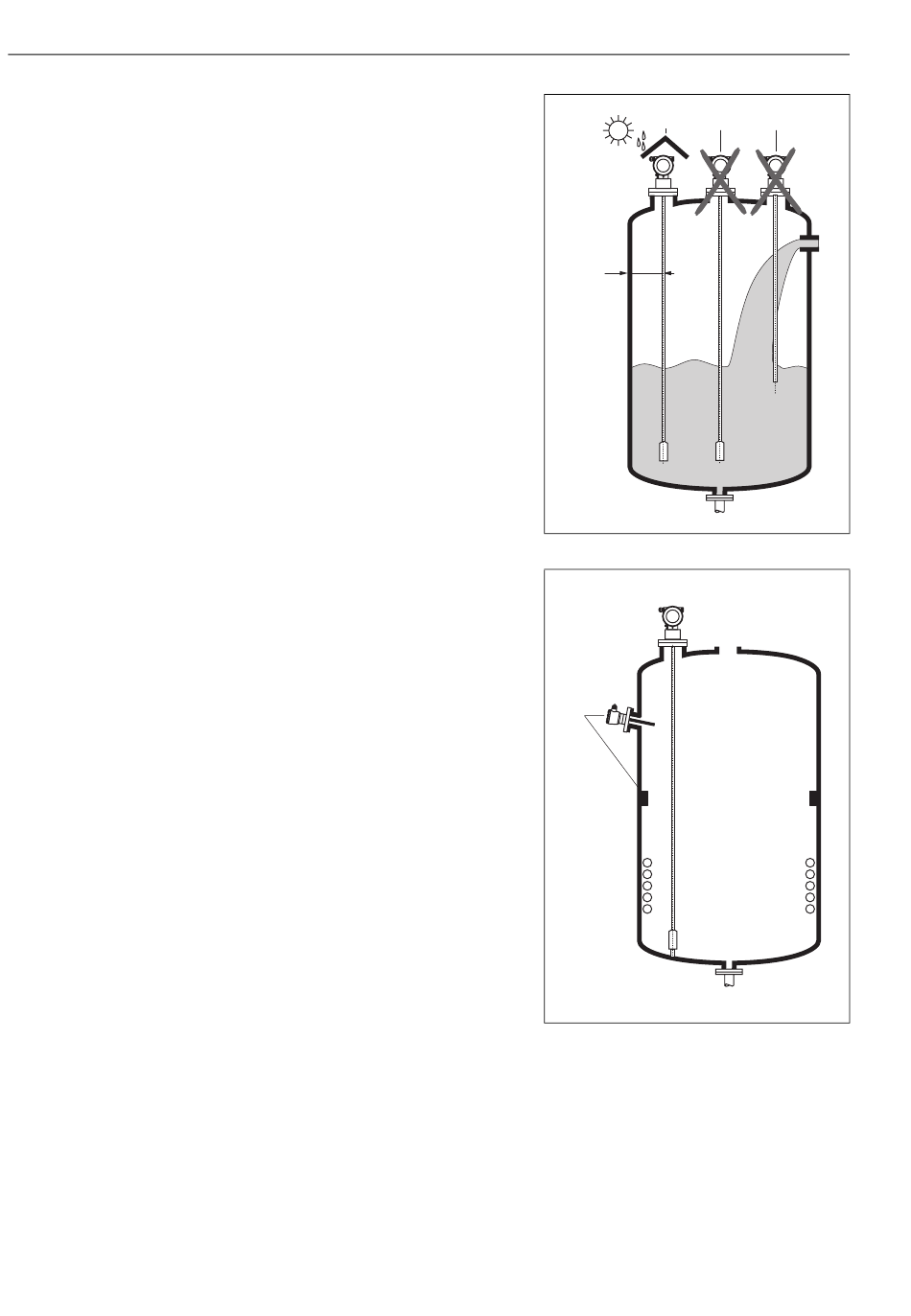

Tank installations
• Select the mounting location such that
the distance to internals (4) (e.g. limit
switch, struts) is > 300 mm.
Optimization options
• Interference echo suppression:
Measurement can be optimised by
electronically tuning out interference
echoes.
• Bypass pipe and stilling well (only for
liquids): for viscosities of up to 500 cst, a
bypass pipe, stilling well or a coax probe
can be used to prevent interference.
Levelflex M FMP 40 with PROFIBUS-PA
1
B
4
2
3
Endress+Hauser
