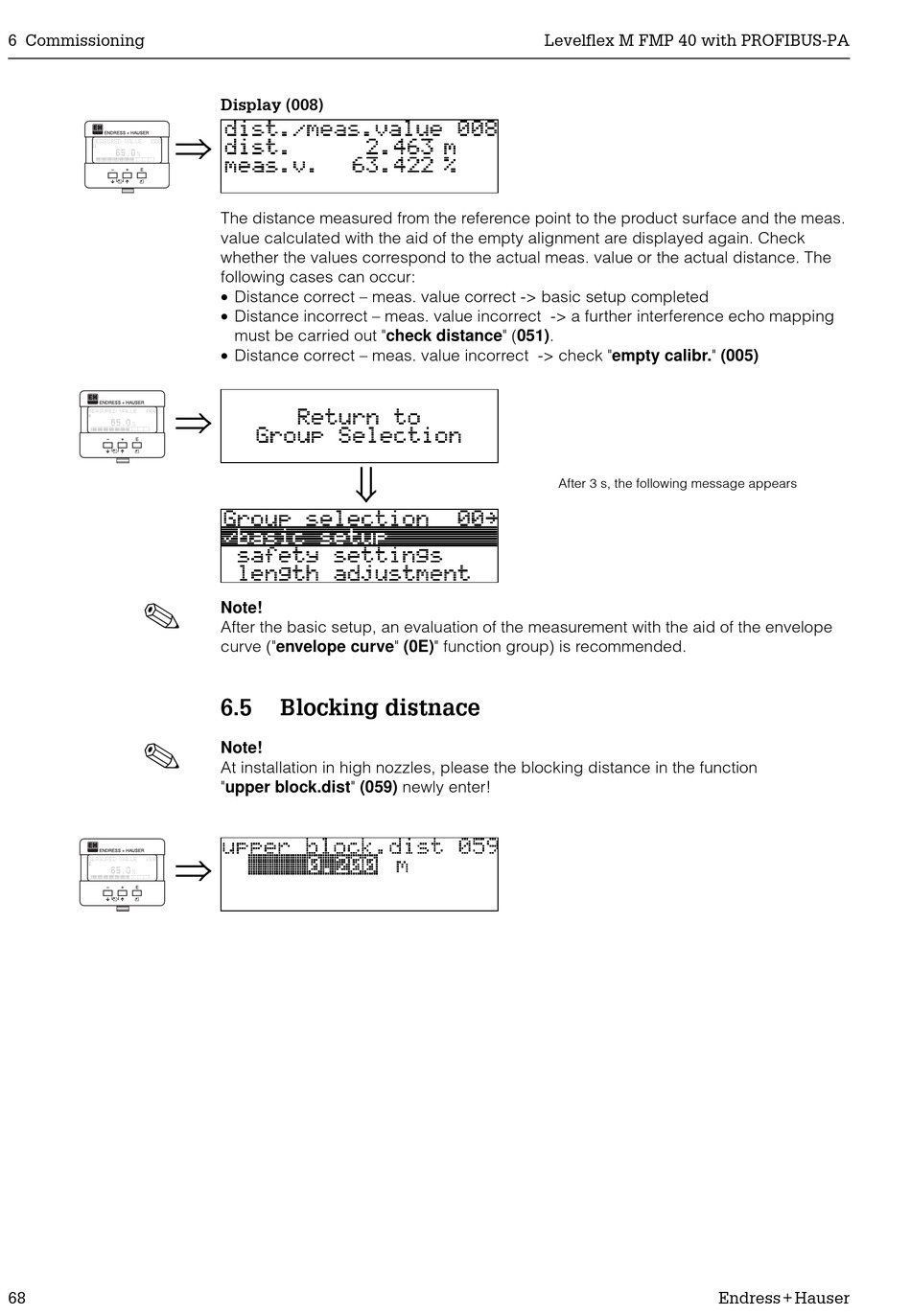

6 Commissioning

⇒

Display (008)

The distance measured from the reference point to the product surface and the meas.

value calculated with the aid of the empty alignment are displayed again. Check

whether the values correspond to the actual meas. value or the actual distance. The

following cases can occur:

• Distance correct – meas. value correct -> basic setup completed

• Distance incorrect – meas. value incorrect -> a further interference echo mapping

must be carried out "check distance" (051).

• Distance correct – meas. value incorrect -> check "empty calibr." (005)

⇓

Note!

After the basic setup, an evaluation of the measurement with the aid of the envelope

curve ("envelope curve" (0E)" function group) is recommended.

6.5

Blocking distnace

Note!

At installation in high nozzles, please the blocking distance in the function

"upper block.dist" (059) newly enter!

Levelflex M FMP 40 with PROFIBUS-PA

After 3 s, the following message appears
