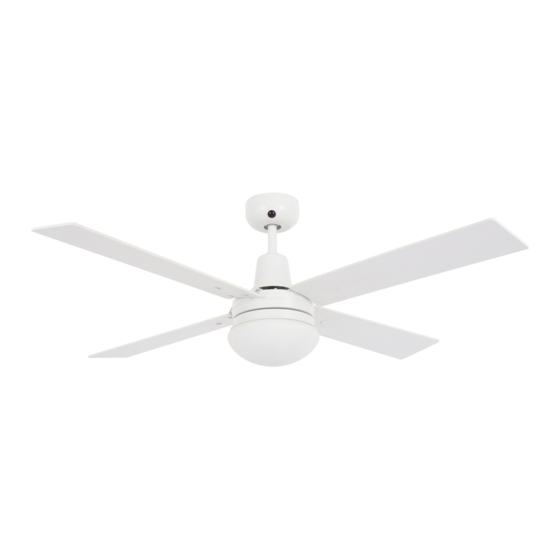

- Page 1 LUCCI AIRFUSION QUEST II CEILING FAN WITH IR REMOTE • INSTALLATION • OPERATION • MAINTENANCE • WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V2.0 – EN - IR (08/2019)
-
Page 2: Safety Precautions
Airfusion QUEST II Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. - Page 3 Airfusion QUEST II Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Airfusion QUEST II Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Airfusion QUEST II Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from the tip of the blade to the nearest objects or walls. -
Page 6: Blade Installation
Airfusion QUEST II Installation Instructions BLADE INSTALLATION BLADE ATTACHMENT (Fig. 4) Before installing the blades, remove the blade screws that pre-installed on the fan motor assembly. Install the blade to the blade holder by tightening the blade holder screw and nut set using the included allen key. -
Page 7: Hanging The Fan
Airfusion QUEST II Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.5) Fig. -
Page 8: Electrical Wiring Diagram
Airfusion QUEST II Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. Ensure the motor earth wire is connected to the single earthing terminal block “2” in Fig. 8 Refer to Fig. -
Page 9: Finishing The Installation
Airfusion QUEST II Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. - Page 10 Airfusion QUEST II Installation Instructions OPERATING THE REMOTE: Before you start using the remote, take the time to read through this section and get familiar with the buttons and function of each button. (Fig.11) 1. IR TRANSMITTER 2. HI button: Press the button to set fan running at High speed.
- Page 11 Airfusion QUEST II Installation Instructions INSTALLING THE REMOTE HOLDER Install the holder onto the wall with the two screws provided, hang up the remote by the holder. Fig. 13 REVERSING SWITCH Your ceiling fan can operate in either summer or winter mode.
-
Page 12: After Installation
Airfusion QUEST II Installation Instructions AFTER INSTALLATION WOBBLE: NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. -
Page 13: Technical Information
Airfusion QUEST II Installation Instructions SAFETY PRECAUTIONS FOR BATTERY: - WARNING – Keep new and used batteries away from children. - CAUTION – Do not ingest battery—Chemical burn hazard. - To prevent false operation during battery insertion or replacement, this ceiling fan must be disconnected from the supply mains. - Page 14 Airfusion QUEST II Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 15 Airfusion QUEST II Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ………………………………………………………...
