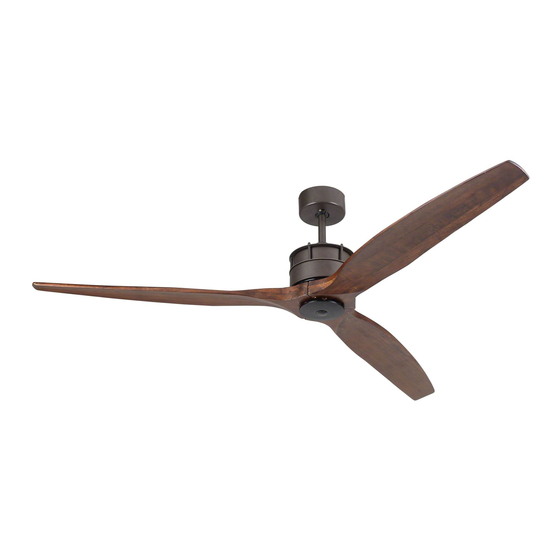

LUCCI Air Airfusion Akmani Series Installation, Operation & Maintenance Instructions Manual
  1. Manuals
  2. Brands
  3. LUCCI Air Manuals
  4. Fan
  5. Airfusion Akmani Series
  6. Installation, operation & maintenance instructions manual

LUCCI Air Airfusion Akmani Series Installation, Operation & Maintenance Instructions Manual

Dc ceiling fan
Hide thumbs

Advertisement

Quick Links

Download this manual

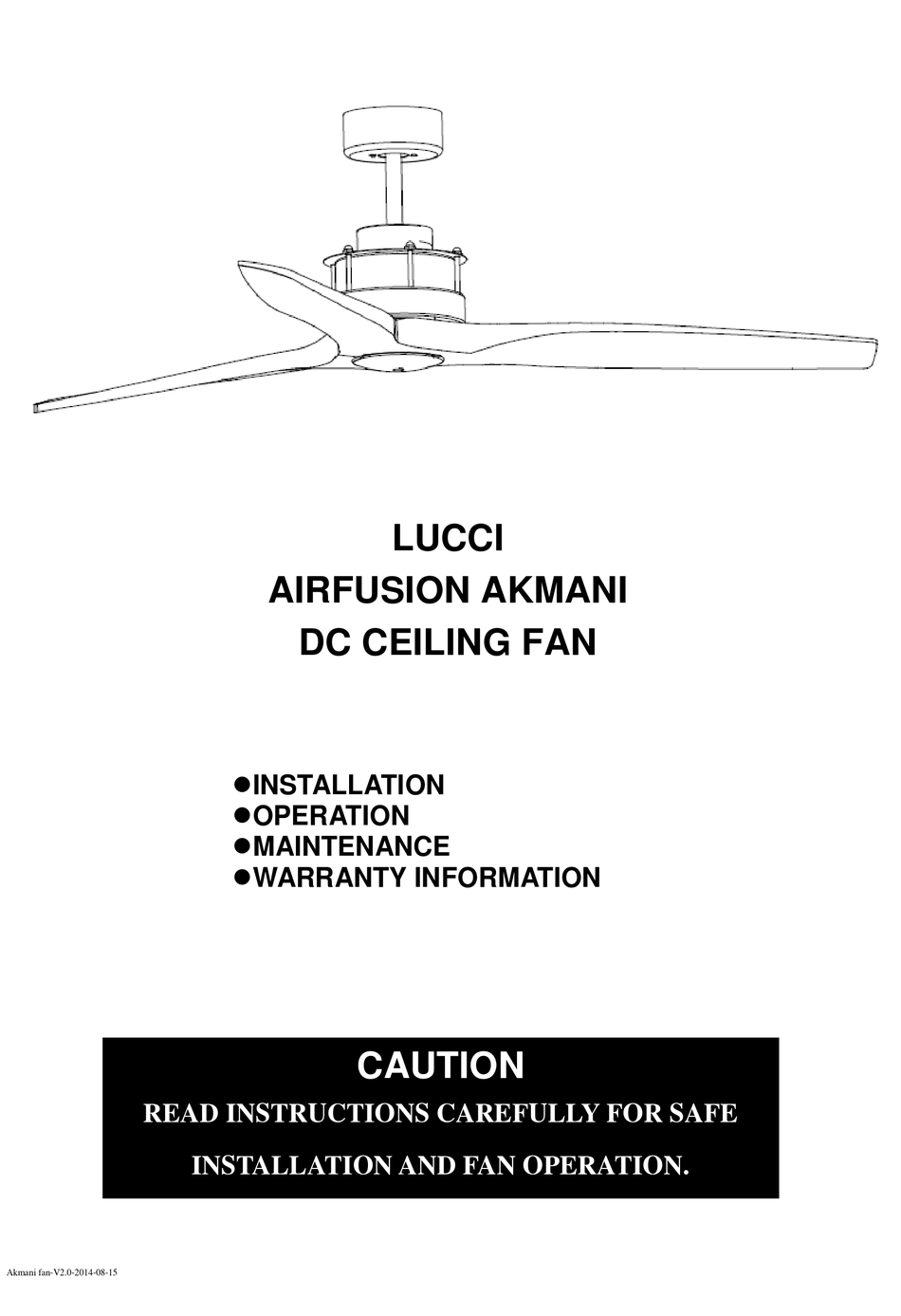

LUCCI
AIRFUSION AKMANI
DC CEILING FAN
INSTALLATION
OPERATION
MAINTENANCE
WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.
Akmani fan-V2.0-2014-08-15
