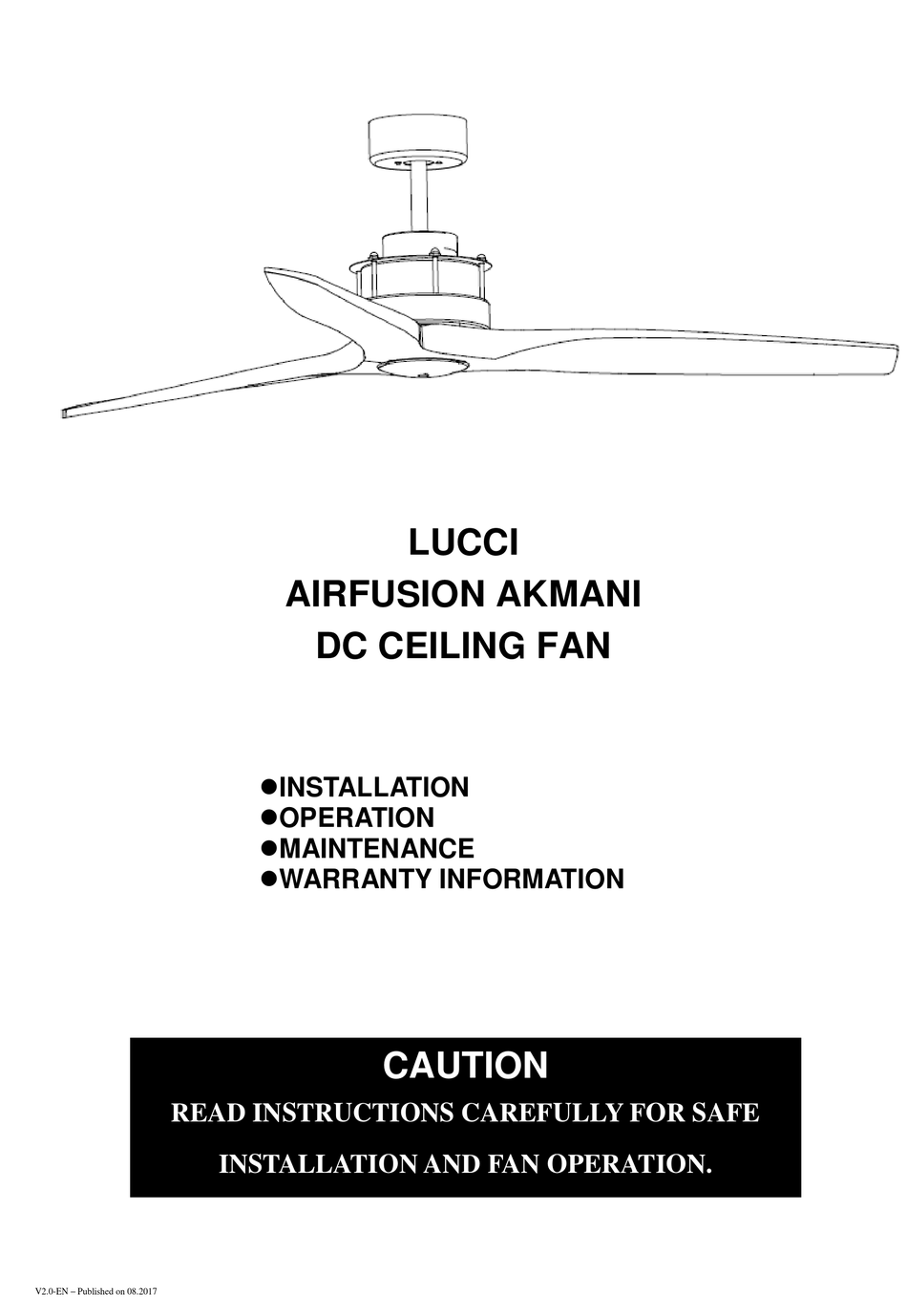

- Page 1 LUCCI AIRFUSION AKMANI DC CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V2.0-EN – Published on 08.2017...
-
Page 2: Congratulations On Your Purchase
Airfusion Akmani Installation Instructions CONGRATULATIONS ON YOUR PURCHASE Congratulations on purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 Airfusion Akmani Installation Instructions with the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Before Installation
Airfusion Akmani Installation Instructions BEFORE INSTALLATION Unpack your fan and check contents. You should have the following: Fig. 1 Mounting bracket x 1 Wood screws x 2 Fan assembly with hanger cover, down rod, Balance kits x 1 set canopy cover and canopy x 1... -
Page 5: Installing The Fan
Airfusion Akmani Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations. INSTALLING THE MOUNTING BRACKET The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the nearest objects or walls. - Page 6 Airfusion Akmani Installation Instructions HANGING THE FAN MOTOR ASSEMBLY Lift the fan assembly onto the mounting bracket. Fig. 4 Ensure the notch of the ball joint is positioned on the stopper of the mounting bracket to prevent the fan from rotating when in operation.
- Page 7 Airfusion Akmani Installation Instructions INSTALL CANOPY COVER Loosen the 2 screws from the bottom of the mounting bracket. Fig. 7 Slide the canopy up to the mounting bracket and place the key hole on the canopy over the screw on the mounting bracket, turn the canopy until it locks in place at the narrow section of the key holes and secure it by tightening the two set screws.
-
Page 8: Using Your Ceiling Fan
Airfusion Akmani Installation Instructions Fig. 10 USING YOUR CEILING FAN Pairing Transmitter and Receiver – when 2 or more DC ceiling fans are installed in one location When two or more fans are located near each other, you may want to have the receiver/transmitter for each fan set to a different code, so that the operation of one fan does not affect the operation of the other fan/s. - Page 9 Airfusion Akmani Installation Instructions Setting DC Ceiling fan 2: Turn off both ceiling fans 1 and 2 via the mains supply to the receiver. Slide the cover of the battery compartment of the transmitter to access the DIP switches. This will be transmitter 2.
- Page 10 Airfusion Akmani Installation Instructions Remote Control Buttons : FAN ON/OFF BUTTON: Press the button to turn the fan on/off. : SPEED INCREASE BUTTON: Press the button to increase the fan speed. The LED indicator will indicate the fan speed (1-6 speed) accordingly.
-
Page 11: After Installation
Airfusion Akmani Installation Instructions Once the transmitter is paired with the receiver of the ceiling fan, it will make a beep sound twice. Turn ON/OFF or change the speed of the ceiling fan by the transmitter to check the operation. - Page 12 Airfusion Akmani Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am &...
- Page 13 Airfusion Akmani Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE…………………………………………… MODEL NUMBER………………………………………………………………………………………..… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE …………………………………………………………………………….
