LUCCI Air AIRFUSION CAROLINA Installation, Operation, Maintenance And Warranty Information
70 inch ceiling fan
Hide thumbs
Also See for AIRFUSION CAROLINA:
- Installation, operation, maintenance & warranty information (12 pages) ,
- Installation and operation manual (12 pages)
Related Manuals for LUCCI Air AIRFUSION CAROLINA
Summary of Contents for LUCCI Air AIRFUSION CAROLINA

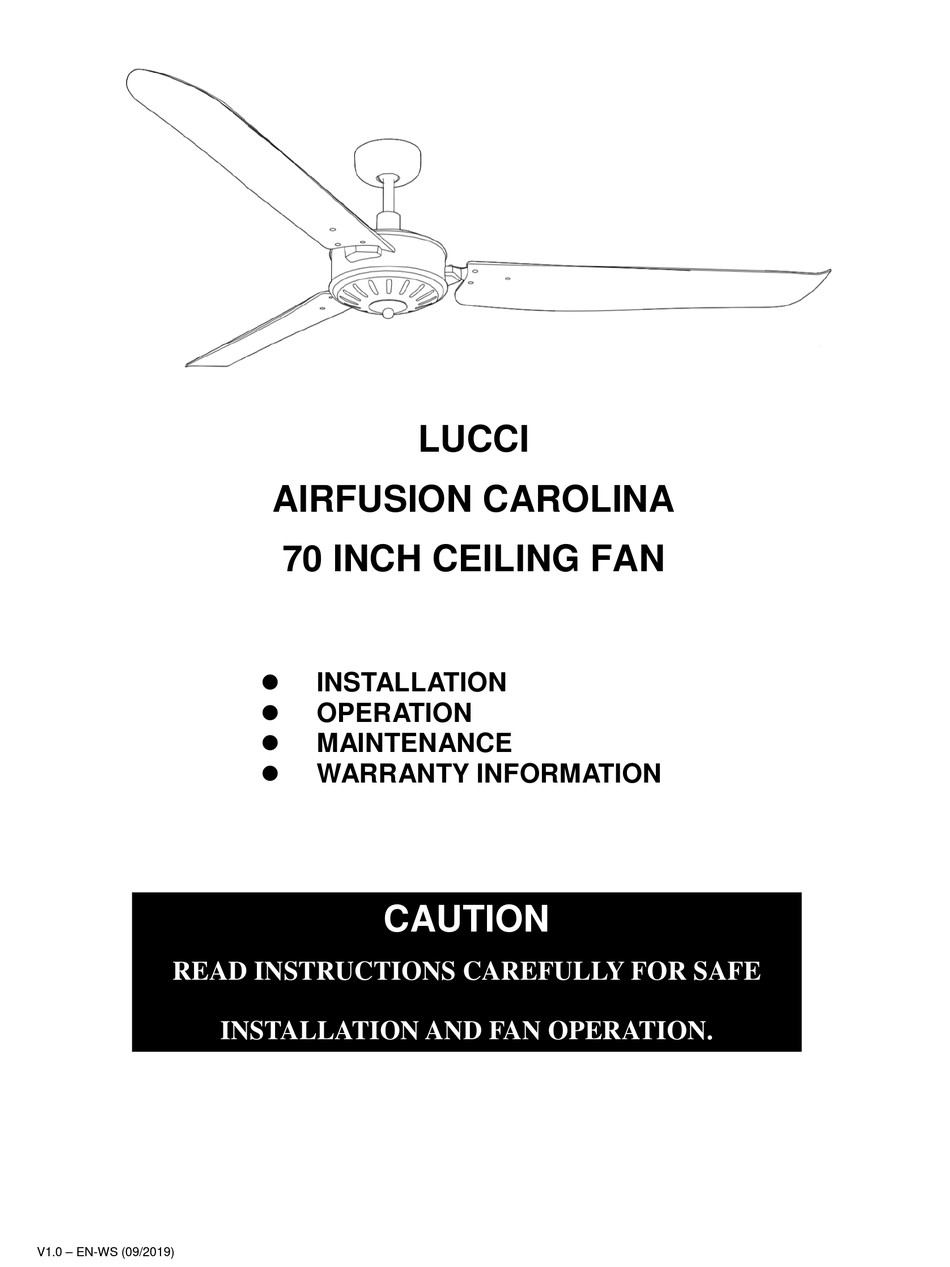

- Page 1 LUCCI AIRFUSION CAROLINA 70 INCH CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0 – EN-WS (09/2019)
-
Page 2: Safety Precautions
Airfusion Carolina Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. - Page 3 Airfusion Carolina Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Airfusion Carolina Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Airfusion Carolina Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 32kg, with the two long screws provided. -
Page 6: Blade Installation
Airfusion Carolina Installation Instructions BLADE INSTALLATION • Align the 3 mounting holes on the blade assembly (3) to the 3 mounting holes on the rotating member of fan motor assembly (1) and using the 3 blade screws with washers (2) to secure the blade assembly (3) to the fan motor assembly, •... -
Page 7: Electrical Wiring Diagram
Airfusion Carolina Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when no light kit is used with the ceiling fan. - Page 8 Airfusion Carolina Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately) Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 6), for (Fig.7 and Fig.8) 1/ Remote without quick connectors (manual wiring) Fig.
-
Page 9: Finishing The Installation
Airfusion Carolina Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 10: After Installation
Airfusion Carolina Installation Instructions REVERSE FUNCTION Your ceiling fan can operate in either summer or winter mode. The reverse switch is located at the top of the motor housing. NOTE: You need a small tool to adjust the reverse switch in the top housing. -
Page 11: Care And Cleaning
Airfusion Carolina Installation Instructions CARE & CLEANING NOTE: Always turn OFF the power at the mains switch before performing any maintenance or attempting to clean your fan. • Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint finish. - Page 12 Airfusion Carolina Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 13 Airfusion Carolina Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ………………………………………………………...
