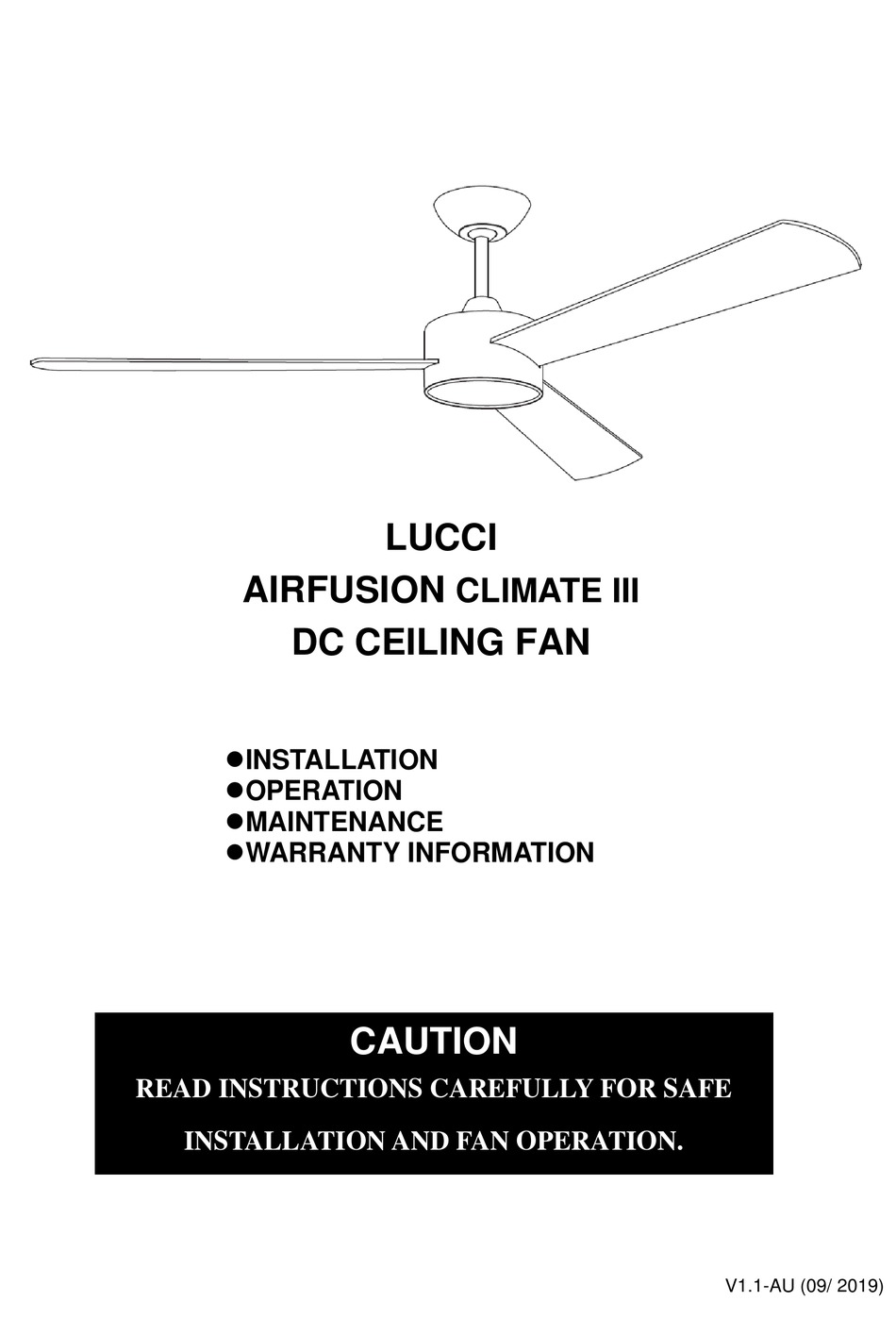

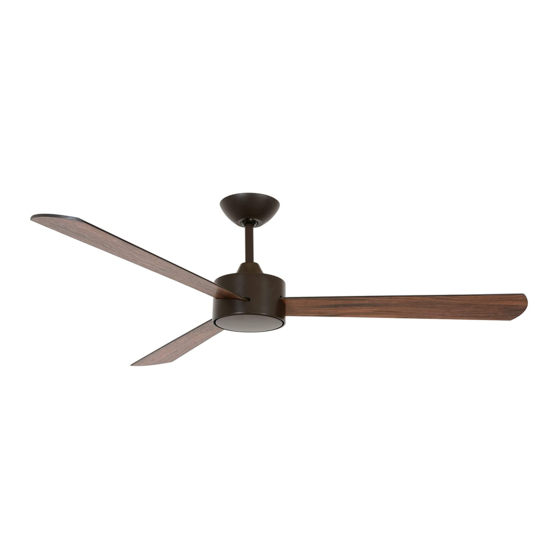

- Page 1 LUCCI AIRFUSION CLIMATE III DC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.1-AU (09/ 2019)
-
Page 2: Safety Precautions
Airfusion Climate III Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 Airfusion Climate III Installation Instructions all-pole disconnection incorporated in the fixed wiring in accordance with the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Airfusion Climate III Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. - Page 5 Airfusion Climate III Installation Instructions INSTALLATION OF THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 16kg, with two long screws provided.
-
Page 6: Installation Of The Fan
Airfusion Climate III Installation Instructions INSTALLATION OF THE FAN INSTALLATION OF THE DOWN ROD (Fig.4) 1. Remove the ball joint and dowel pin by loosening the set screw. Remove the lock pin by removing the hitch pin. Do not discard keep these parts, they are required to reassemble later. - Page 7 Airfusion Climate III Installation Instructions INSTALLATION OF THE HANGER (Fig.5) 1. Install the decorative cover onto the down rod and cover the coupling parts. Carefully slide the canopy onto the down rod. 2. Reinstall the ball joint and dowel pin back to the down rod and secure by tightening the set screw.
- Page 8 Airfusion Climate III Installation Instructions INSTALLATION OF LIGHT KIT (Optional and sold separately) (Fig.7) • NOTE: The light kit must be installed by a licensed electrician. • The light kit is sold separately. (SKU# 210643, 210644, 210645). • Connect the wires of the light kit to the motor part via the quick connector.
- Page 9 Airfusion Climate III Installation Instructions PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 8) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.
-
Page 10: Hanging The Fan
Airfusion Climate III Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.9) Fig. -
Page 11: Using Your Ceiling Fan
Airfusion Climate III Installation Instructions USING YOUR CEILING FAN REMOTE CONTROL (Fig.12) Fig. 12 REPAIRING THE FAN RECEIVER & REMOTE PAIRING NOTE: The pairing of the remote and receiver has been done at the factory. When the ceiling fan is installed, pairing the fan receiver and remote is NOT required. -
Page 12: After Installation
Airfusion Climate III Installation Instructions AFTER INSTALLATION NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimeters is quite acceptable and DOES NOT suggest any problem. -
Page 13: Care And Cleaning
Airfusion Climate III Installation Instructions CARE AND CLEANING: NOTE: Always turn OFF the power at the mains switch before performing any maintenance or attempting to clean your fan. • Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint finish. - Page 14 Airfusion Climate III Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday.
- Page 15 Airfusion Climate III Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE…………………………………………… MODEL NUMBER………………………………………………………………………………………..… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE …………………………………………………………………………….
