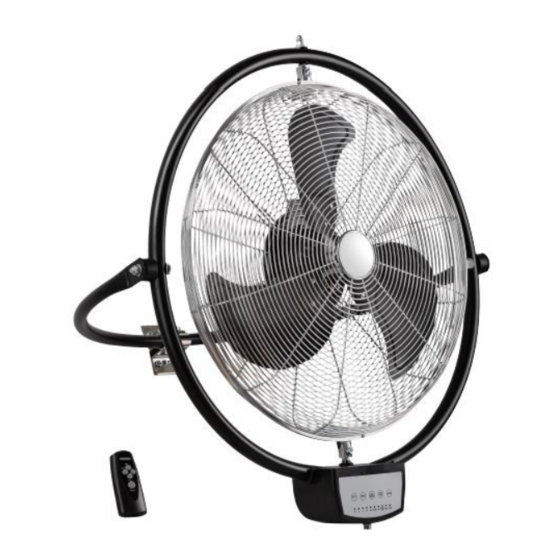

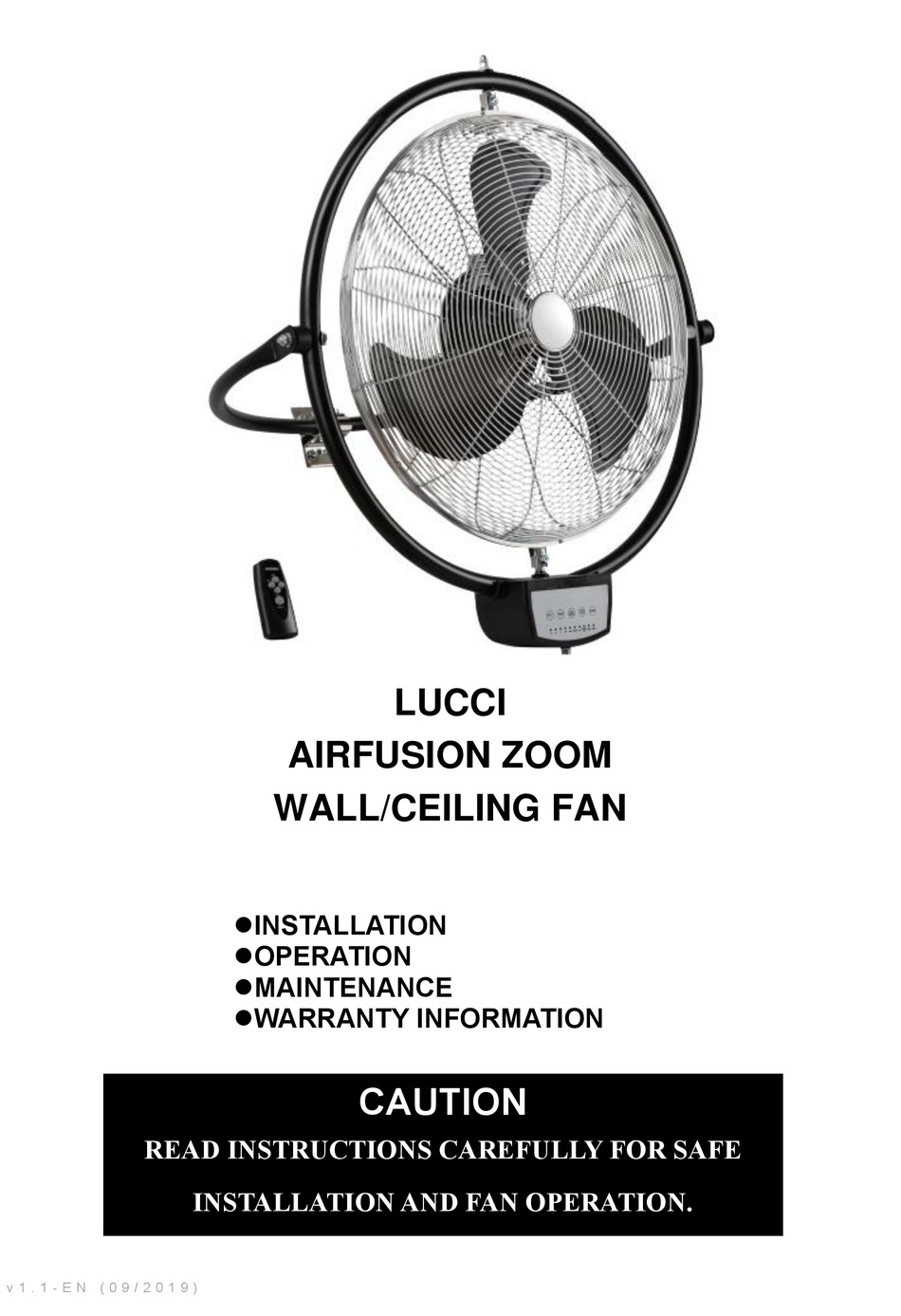

- Page 1 LUCCI AIRFUSION ZOOM WALL/CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. v 1 . 1 - E N ( 0 9 / 2 0 1 9 )
- Page 2 Zoom Wall and Ceiling Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference.
- Page 3 Zoom Wall and Ceiling Fan Installation Instructions PARTS LIST • Unpack your fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement.
- Page 4 Zoom Wall and Ceiling Fan Installation Instructions INSTALLING THE FAN 1. Use the mounting bracket (5) as a template to mark the screw hole positions onto the wall/ceiling. 2. Drill the holes on the wall or ceiling. 3. Install the mounting bracket (5) onto the wall/ceiling using appropriate size mounting screws (3) and anchors (1).
- Page 5 Zoom Wall and Ceiling Fan Installation Instructions OPERATING THE REMOTE ON/SPEED Button: Press the button repeatedly to turn the fan ON and change the fan speed. The fan will run at following order: Low speed → Medium speed → High speed. OFF Button: Press the button to turn the fan OFF.
- Page 6 Zoom Wall and Ceiling Fan Installation Instructions OPERATING THE CONTROL PANEL SWING Button: Press the button to activate the fan oscillation function when fan is running. Fig. 5 WIND Mode Button: Press the button repeatedly to activate the fan running at following mode: Normal mode → Natural mode → Sleep model. ON/SPEED Button: Press the button to turn on the fan and change the fan speed in following order: Low speed →...
- Page 7 Zoom Wall and Ceiling Fan Installation Instructions CARE AND CLEANING NOTE: Always turn OFF the power and unplug from the mains socket outlet before attempting to clean, adjust or maintain your fan. • Every 6 months periodic cleaning of your fan is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint finish.
