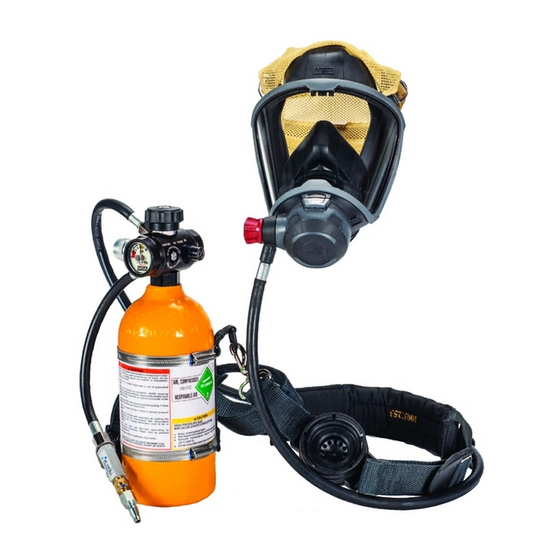

- Page 1 Certified Air Mask Repair Education (C.A.R.E.) Manual G1 PremAire® Cadet Escape Carrier and Harness Order No.: 10176643/00 Print spec.: 10000005389(A) MSAsafety.com...
- Page 2 1-800-MSA-2222 during regular working hours. For alternate languages, please refer to part number 10176644. 1000 Cranberry Woods Drive Cranberry Township, PA 16066 Phone 1-800-MSA-2222 Fax 1-800-967-0398 For your local MSA contacts please go to our website www.MSAsafety.com © MSA 2016. All rights reserved...
-
Page 3: Table Of Contents
Contents G1 PremAire Cadet Escape Carrier and Harness ......... -
Page 4: G1 Premaire Cadet Escape Carrier And Harness
G1 PremAire Cadet Escape Carrier and Harness G1 PremAire Cadet Escape Carrier and Harness Required Tools and Equipment Custom Parts DESCRIPTION PART NUMBER O-Ring Removal Tool 636060 Standard Parts DESCRIPTION Torque Wrench, 0-150 in-lbs Open End Wrench, 11/16” Crowfoot, 11/16”... -
Page 5: Parts List And Replacement Parts
G1 PremAire Cadet Escape Carrier and Harness Parts List and Replacement Parts G1 PremAire® Cadet Escape... - Page 6 G1 PremAire Cadet Escape Carrier and Harness ITEM QUANTITY DESCRIPTION Part Number STRAP, WAIST, NYLON, STANDARD 10165400-SP STRAP, WAIST, KEVLAR, STANDARD 10165412-SP STRAP, WAIST, NYLON, LARGE 10165411-SP STRAP, WAIST, KEVLAR, LARGE 10165413-SP STRAP, SHOULDER, NYLON 10163081-SP STRAP, SHOULDER, KEVLAR 10163082-SP...
-
Page 7: Maintenance And Care
Use an 11/16” wrench to disconnect the supply hose. Use the O-ring removal tool to remove the O-ring. Discard the O-ring after removal. NOTE: BE careful not to scratch the O-ring groove. Remove the hose ring from the hose strap split ring. G1 PremAire® Cadet Escape... -
Page 8: Installing The Supply Hose
125 +/- 25 in-lbs. NOTE: The crowfoot and torque wrench must be at a right angle to produce an accurate torque. Attach the hose ring to the hose strap split ring. G1 PremAire® Cadet Escape... -
Page 9: Removing The Regulator Hose
Use the O-ring removal tool to remove the O-ring. Discard the O-ring after removal. NOTE: BE careful not to scratch the O-ring groove. Remove the regulator hose by sliding it through the shoulder strap and shoulder pad, if present. G1 PremAire® Cadet Escape... -
Page 10: Installing The Regulator Hose
Use an 11/16” crowfoot and inch-pound torque wrench to connect the regulator hose and tighten to 125 +/- 25 in-lbs. NOTE: The crowfoot and torque wrench must be at a right angle to produce an accurate torque. G1 PremAire® Cadet Escape... -
Page 11: Removing The Strap/Bag Carrier Assembly
Use the O-ring removal tool to remove the regulator hose O- ring. Discard the O-ring after removal. NOTE: BE careful not to scratch the O-ring groove. Disconnect the cylinder strap carrier from the shoulder strap hook and pull strap hook. G1 PremAire® Cadet Escape... -
Page 12: Installing The Strap/Bag Carrier Assembly
125 +/- 25 in-lbs. NOTE: The crowfoot and torque wrench must be at a right angle to produce an accurate torque. Install the supply hose (See Installing the Supply Hose for instructions). G1 PremAire® Cadet Escape... -
Page 13: Removing The Cylinder And Valve Assembly
If using a bag carrier, remove the cylinder and valve from the bag carrier to complete. Other- wise, skip to step 3. Use a slot head screwdriver or 9/32” socket to unscrew the clamps. Slide the clamps through the carrier straps and remove. G1 PremAire® Cadet Escape... -
Page 14: Installing The Cylinder And Valve Assembly
Position the clamps at the edges of the label. Use a slot head screwdriver or 9/32” socket and inch-pound torque wrench to tighten to 35 +/- 10 in-lbs. Install the strap/bag carrier assembly (See Installing the Strap/Bag Carrier Assembly for instructions). G1 PremAire® Cadet Escape... -
Page 15: Removing The Waist Strap
Maintenance and Care Removing the Waist Strap Unweave the waist strap from the male buckle. Pass the waist strap through the shoulder strap and pull strap to remove. G1 PremAire® Cadet Escape... -
Page 16: Installing The Waist Strap
Make sure the model number is upright and on the inner side of the waist strap to ensure proper orientation. Weave the waist strap through the male buckle. NOTE: Make sure the stiffener is properly oriented. G1 PremAire® Cadet Escape... -
Page 17: Removing The Regulator Keeper
2.12 Installing the Regulator Keeper Guide the pull strap through the opening on each side of the keeper until it is securely attached. NOTE: It is not necessary to remove the pull strap to install the regulator keeper. G1 PremAire® Cadet Escape... -
Page 18: Removing The Pull Strap
Remove the regulator keeper (See Removing the Regulator Keeper for instructions). Remove the waist strap (See Removing the Waist Strap for instructions). Unweave the pull strap from the friction buckle. Disconnect the pull strap hook from the carrier assembly. G1 PremAire® Cadet Escape... -
Page 19: Installing The Pull Strap
Pass the strap over the bar and from front to back through the buckle. NOTE: Make sure the stiffener is properly oriented. Install the waist strap (See Installing the Waist Strap for instructions). Install the regulator keeper (See Installing the Regulator Keeper for instructions). G1 PremAire® Cadet Escape... -
Page 20: Removing The Shoulder Strap
Unweave the pull strap from the friction buckle. Remove the regulator hose (See Removing the Regulator Hose for instructions). Disconnect the shoulder strap hook from the carrier assembly. If present, remove the shoulder pad from the shoulder strap. G1 PremAire® Cadet Escape... -
Page 21: Installing The Shoulder Strap
Pass the pull strap from back to front through the buckle. b) Pass the strap over the bar and from front to back through the buckle. NOTE: Make sure the stiffener is properly oriented. Install the waist strap (See Installing the Waist Strap for instructions). G1 PremAire® Cadet Escape... - Page 22 For local MSA contacts, please visit us at MSAsafety.com Because every life has a purpose...
