Summary of Contents for MSA PremAire System

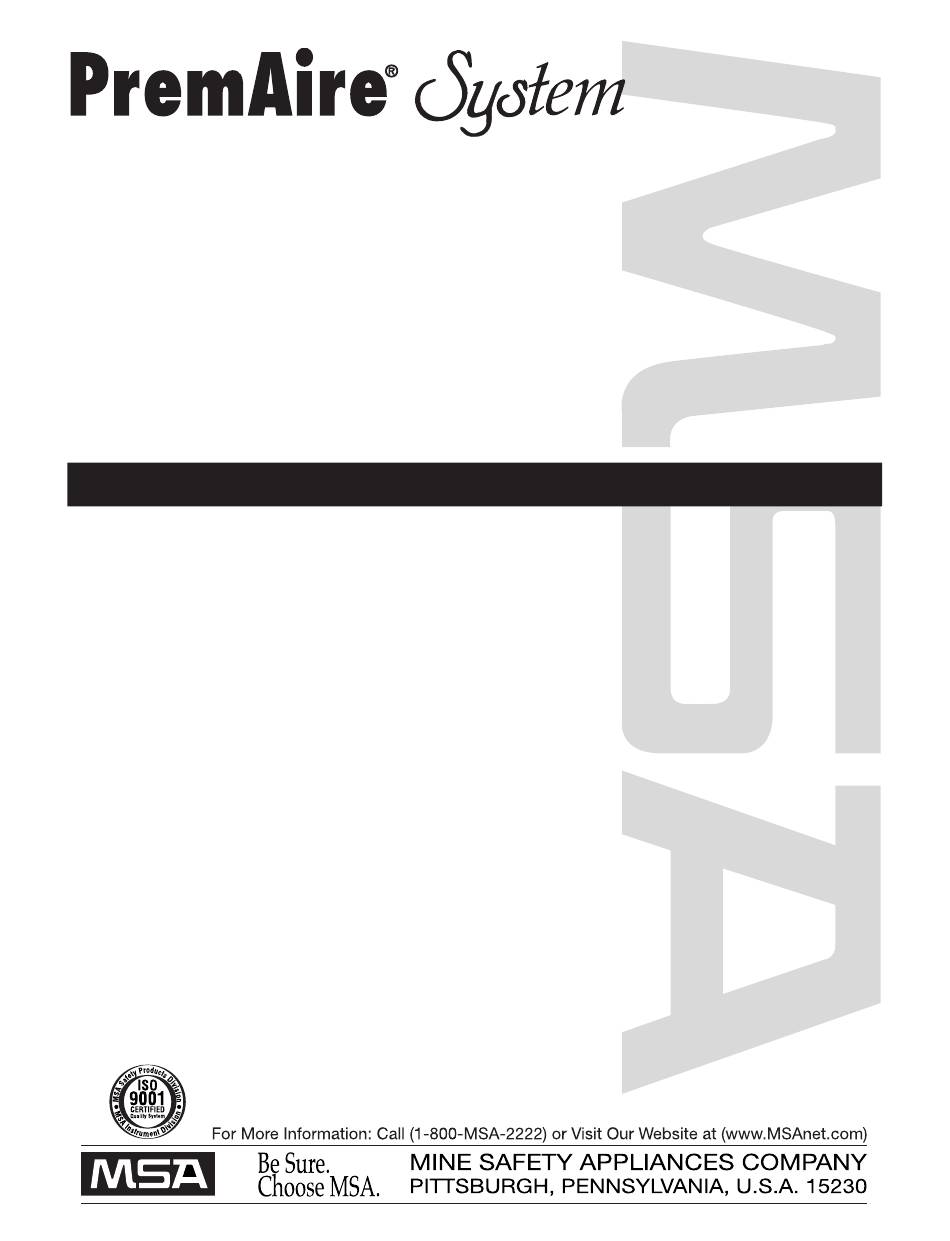

- Page 1 Combination Breathing Apparatus CARRIER AND HARNESS ASSEMBLY TAL 502 (L) Rev. 0 © MSA 2005 Prnt. Spec. 10000005389 (I) Mat. 10064390 Doc. 10064390...
- Page 2 TAL 205 (L) Rev. 10 - 800000 TAL 502 (L) Rev. 0 - 10064390...
- Page 3 Carrier and Harness Assembly Nylon part number 10037276 Kevlar part number 10037277 Item Description Item Description 10042344 Nylon Cylinder Band 10037258 Right Pull Strap Nylon 10042345 Kevlar Cylinder Band 10037259 Right Pull Strap Kevlar 10026846 Cylinder Band Buckle 10005950 10030617 Grommet (3 Req’d) 627503 Rivet (2 Req’d)
- Page 4 TAL 502 (L) Rev. 0 - 10064390...
- Page 5 CARRIER AND HARNESS ASSEMBLY CARRIER AND HARNESS ASSEMBLY REPLACING THE OPTIONAL FHR OR NYLON WAIST- STRAP ASSEMBLY Replacing the Shoulder Strap Assembly 1. Remove the screws, washers, tee nuts and second stage holder, then remove waist-strap from cylinder carrier. Note: Before installation of new waist belt, apply Loctite 1.
