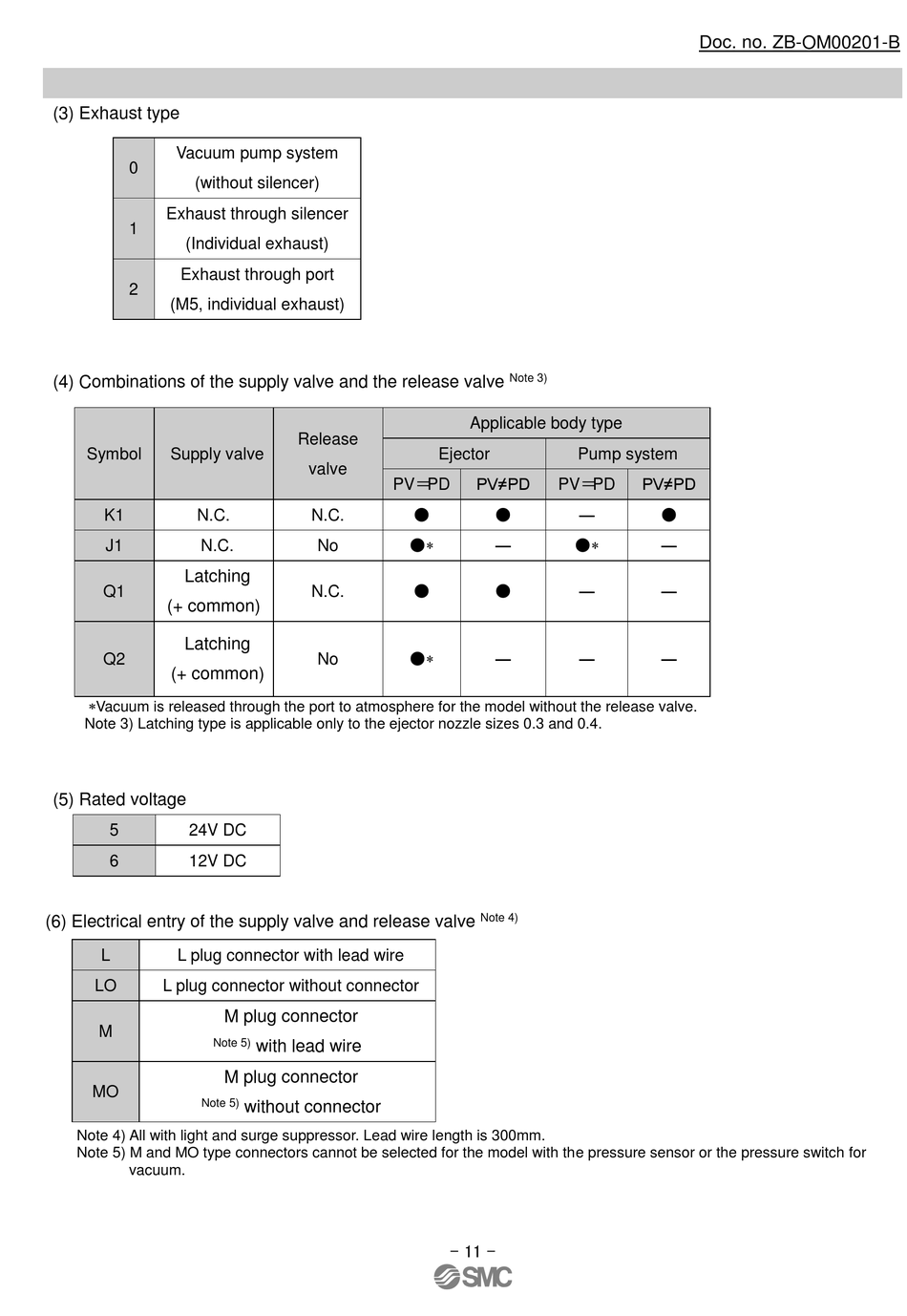

SMC Networks ZB Series Operation Manual page 12

(3) Exhaust type
Vacuum pump system
0
(without silencer)
Exhaust through silencer
1
(Individual exhaust)
Exhaust through port
2
(M5, individual exhaust)
(4) Combinations of the supply valve and the release valve
Symbol Supply valve
K1 N.C.
J1 N.C.
Latching
Q1
(+ common)
Latching
Q2
(+ common)
Vacuum is released through the port to atmosphere for the model without the release valve.
Note 3) Latching type is applicable only to the ejector nozzle sizes 0.3 and 0.4.
(5) Rated voltage
5 24V DC
6 12V DC
(6) Electrical entry of the supply valve and release valve
L L plug connector with lead wire
LO L plug connector without connector
M
Note 5)
MO
Note 5)
Note 4) All with light and surge suppressor. Lead wire length is 300mm.
Note 5) M and MO type connectors cannot be selected for the model with the pressure sensor or the pressure switch for
vacuum.
Release
valve
PV＝ PD
N.C.
No
N.C.
No
M plug connector
with lead wire
M plug connector
without connector
Note 3)
Applicable body type
Ejector Pump system
PV≠PD
PV＝ PD
―
● ●
―
● ●
―
● ●
● ― ―
Note 4)
- 11 -
Doc. no. ZB-OM00201-B
PV≠PD
●
―
―
―
