！ Contact our sales office regarding a delivery date or a price since this is a special model.
P.G.Information

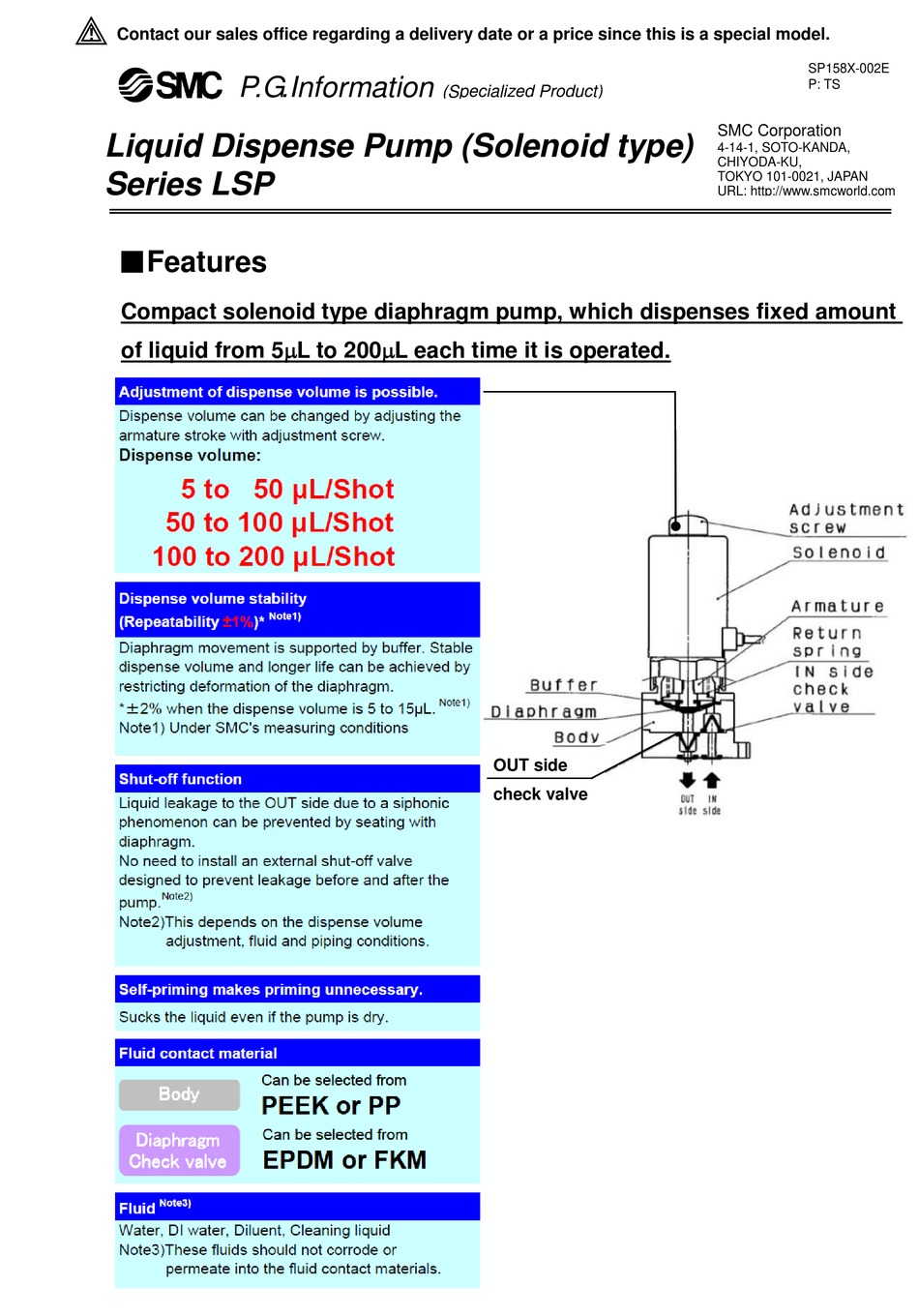

Liquid Dispense Pump (Solenoid type)
Series LSP
■Features
Compact solenoid type diaphragm pump, which dispenses fixed amount
of liquid from 5L to 200L each time it is operated.
(Specialized Product)
OUT side
check valve
SP158X-002E
P: TS
SMC Corporation
4-14-1, SOTO-KANDA,
CHIYODA-KU,
TOKYO 101-0021, JAPAN
URL: http://www.smcworld.com
