Andex 714 T Vario
Operating manual
Original operating manual
Edition
Date of print
Language
Machine number
Model
Document number
06.2012
07.2012
EN
VF69621551 –
VF6962
VF16648685.EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Andex 714 T Vario and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon Andex 714 T Vario

Summary of Contents for Vicon Andex 714 T Vario

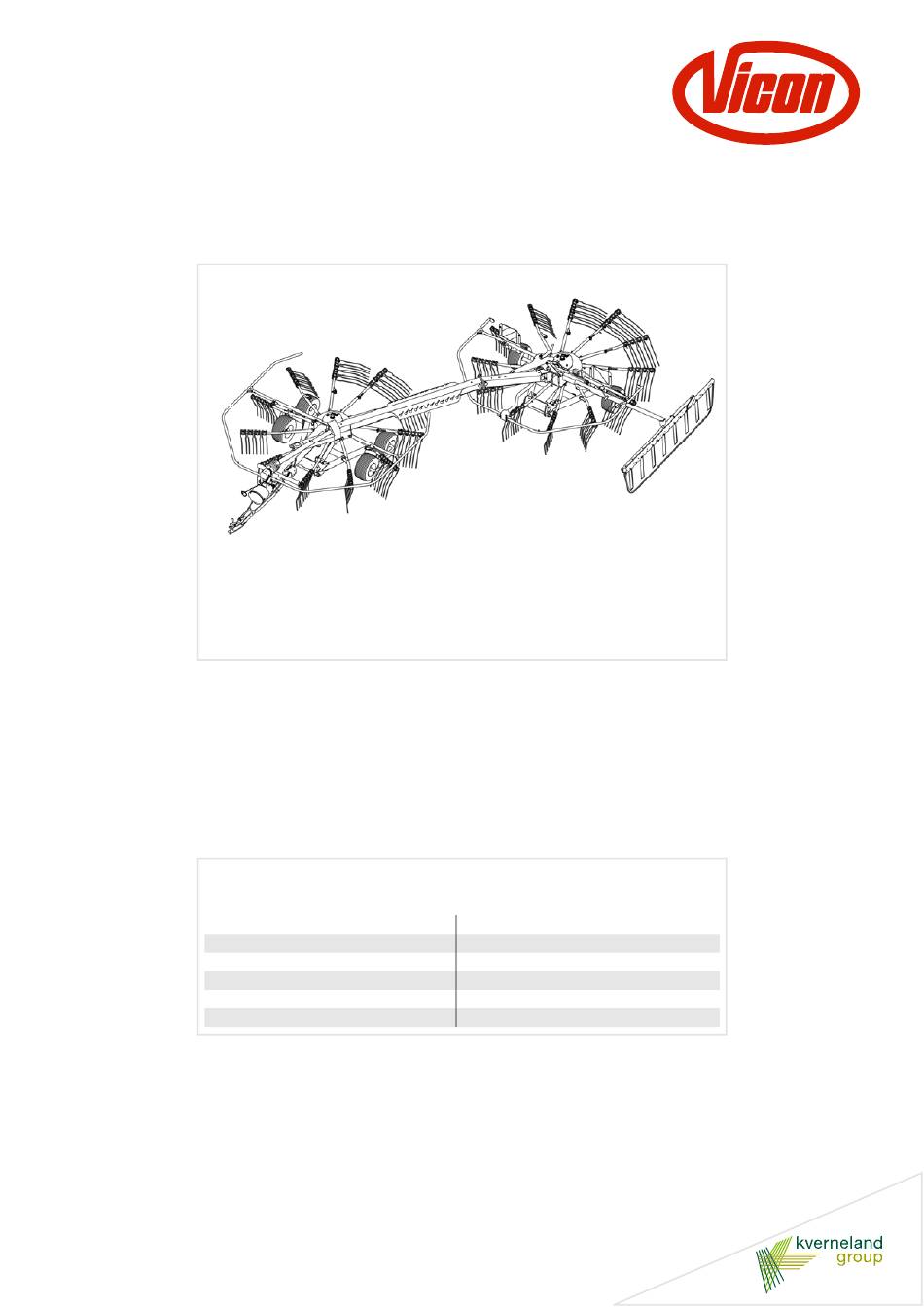

  • Page 1 Andex 714 T Vario Operating manual Original operating manual Edition 06.2012 Date of print 07.2012 Language Machine number VF69621551 – Model VF6962 Document number VF16648685.EN...
  • Page 2 Machine identification In order for your dealer to assist you as efficiently as possible, you will need to provide some information about your machine. Please enter the details here. Designation Andex 714 T Vario Working width 7.10 m Weight 1400 kg...

  • Page 3: Table Of Contents

    Table of contents Table of contents Preface ............Basic settings Target group for this operating manual Fitting the deflector bars Symbols used Pulling out the deflector bar Rear swath former Safety ............Additional swath former [+] For your safety Who is allowed to operate the machine? Operation ...........
  • Page 4 Table of contents...

  • Page 5: Preface

    Preface Target group for This operating manual is intended for trained agriculturists and Preface persons who are otherwise qualified for agricultural activities and have this operating received instruction in working with this machine. manual Minimum age Children under the age of 16 are not permitted to operate the machine. For your safety You must familiarise yourself with the contents of this operating manual before assembly or initial operation of the machine.

  • Page 6: Symbols Used

    Preface Symbols used In this operating manual, the following symbols and terms have been used: • A bullet point accompanies each item in a list. A triangle indicates operating functions which must be performed. → An arrow indicates a cross-reference to other sections of this manual.

  • Page 7: For Your Safety

    Safety For your safety This chapter contains general safety instructions. Each chapter of the Safety operating manual contains additional specific safety information which is not described here. Observe the safety information: • in the interest of your own safety. • in the interest of the safety of others.
  • Page 8 Safety Warning signs Safety-related labels attached to the machine indicate potential hazards. The labels must not be removed. Illegible or missing labels should be replaced. You can obtain new labels as replacement parts from your dealer. Warning signs on the machine...
  • Page 9 Safety Meaning of warning signs Read the operating manual Read and follow the operating and safety instructions before using the machine for the first time. The machine must not be used for the first time until the operating manual has been read and understood. This applies in particular to the safety information.
  • Page 10 Safety Do not exceed the maximum hydraulic pressure The tractor's hydraulic pressure on the machine's hydraulic system must not exceed 210 bar. Otherwise, damage to the machine may be caused as a result. Close the ball valve for road transport Always close the ball valve for road travel and transportation.

  • Page 11: Who Is Allowed To Operate The Machine

    Safety Who is allowed to Only qualified persons may operate the machine Only qualified persons who have been informed of the dangers operate the associated with handling the machine are permitted to operate, machine? service or repair the machine. The necessary knowledge can be gained in the course of agricultural vocational training, professional training or intensive instruction.
  • Page 12 Safety Switch off the tractor PTO shaft drive Switch off the PTO shaft drive on the tractor when changing from work to transport position (and vice versa). Wait for moving parts to come to a stop. If this requirement is ignored, the consequence may be damage to the machine and even life-threatening injuries.
  • Page 13 Safety Do not make any modifications to the machine No modifications of any kind may be made to the machine. Unauthorised modifications can adversely affect the correct operation and safety of the machine and shorten its service life. Unauthorised modifications to the machine render the manufacturer's guarantee null and void and free the manufacturer from all liability.

  • Page 14: Coupling

    Safety Coupling Increased risk of injury When the machine is being coupled to the tractor, there is an increased risk of injury. Therefore: • Secure the tractor against rolling away, shut off the engine and remove the ignition key. • Never stand between the tractor and machine.

  • Page 15: Road Transport

    Safety Road transport Ensuring road safety The machine must conform to current national traffic regulations if you intend to drive with it on public roads. Ensure the following: • Lighting, warning and protective equipment must be fitted • The permissible transport widths and weights, axle loads, tyre load-bearing capacities, laden weights and national speed restric- tions must be complied with.
  • Page 16 Safety Speed adjustment In poor road conditions and at high speeds, significant forces can be generated which subject the tractor and machine material to high or excessive stresses. Adjust your driving speed to the road conditions. A driving style which is not adapted to conditions can cause accidents. Accidents with serious or fatal injuries may be caused as a result.

  • Page 17: Operation

    Safety Operation Operate for the first time only after proper training The machine may only be put into operation after proper training has been provided by an employee from a dealership or the manufacturer, or by a factory representative. Operation without training can lead to damage to the machine due to incorrect operation, or cause accidents.

  • Page 18: Uncoupling

    Safety Uncoupling Increased risk of injury There is an increased risk of injury when uncoupling the machine from the tractor. Therefore: • Secure the tractor against rolling away, turn off the engine and remove the ignition key. • Never stand between the tractor and machine. •...

  • Page 19: Care And Maintenance

    Safety Care and Observe the care and maintenance intervals Observe the periods specified in the operating manual for recurrent maintenance checks and inspections. If these periods are not observed, damage to the machine and accidents may be caused as a result. Use original parts Many components have special properties that are essential for the stability and correct operation of the machine.

  • Page 20: Further Regulations

    Safety No aggressive washing additives Do not use any aggressive washing additives for cleaning. Uncoated metal surfaces can be damaged. Before carrying out welding work Disconnect all electrical connections from the tractor when carrying out welding on the hitched machine. Damage may otherwise be caused to the electrical system.

  • Page 21: Getting To Know The Machine

    Getting to know the machine Range of This product is classified as replaceable equipment in accordance Getting to know the machine with EC directive 2006/42/EC. application The machine is a two-wheel rake, which is suitable only for the raking together of mown, stalked material (for example, hay or straw). Proper use Any use other than the use described above - such as silo spreading, any type of soil preparation, sweeping, or transmitting power to other...

  • Page 22: Designation Of Components

    Getting to know the machine Designation of components Swath former Rear frame Pivoting cylinder Spare wheel [+] Centre frame Articulated arm PTO shaft Forward frame Slewing gear Support wheel Tine arm Tine supports Rotor Deflector bar Tandem axle Drawbar cylinder Drawbar Chassis cylinder...

  • Page 23: Technical Specifications

    Getting to know the machine Technical specifications Dimensions Work position [m] Transport position [m] Length – 8.20 (A) / 7.44 (L) Width, tine supports in transport holder – 2,21 Width, tine supports fitted 2,99 - 6,77 2,99 Height 1,90 - 2,40 2,40 - 2,90 Distance, drawbar eye - 1st axle 2,90...
  • Page 24 Getting to know the machine Weights Transport position [m] Work position [m] Total weight 1 400 kg Load supported on the support wheel 140 kg 130 kg Axle load of 1st chassis 640 kg 645 kg Axle load of 2nd chassis 620 kg 625 kg Tractor equipment required...
  • Page 25 Getting to know the machine Machine equipment Swath deposit Swath former Standard Swath former for front rotor Rotors / tine supports / tines Number of rotors Number of tine supports per rotor 11 front / 12 rear Number of tines per tine support Removable tine arms Standard Rotor height adjustment...

  • Page 26: Pilotbox

    Getting to know the machine Pilotbox Protect electrical parts against moisture The electronic control system, pilotbox and electrical plug connections must be protected against damp and penetrating moisture. Dampness in electronic devices can lead to leakage current, which results in malfunction. The rotary rake Vario version is fitted with an electro-hydraulic control device –...

  • Page 27: Delivery And Assembly

    Delivery and assembly Checking the Delivery is in the fully assembled state Delivery and assembly The machine is delivered fully assembled. Using the check list, check scope of delivery the loose parts on delivery. If any parts of the machine have not been fitted or are missing, please contact your dealer.

  • Page 28: Pto Shaft Length

    Delivery and assembly PTO shaft length The length of the PTO shaft was selected at the factory to suit almost all types of tractor. Only in exceptional cases is a correction of the PTO shaft length required on individual tractors. Check the length of the PTO shaft on each tractor prior to first use.
  • Page 29 Delivery and assembly Checking the length Adjust the PTO shaft as follows: of the PTO shaft Couple the machine to the tractor without the PTO shaft. PTO shaft Completely raise the rotary rake using the tractor's hydraulic control device. Park the tractor at full steering lock. Switch off the tractor and secure it against rolling away.
  • Page 30 Delivery and assembly Shortening the PTO shaft Pull the PTO shaft apart and connect one half to the tractor PTO stub shaft drive and the other half to the machine and secure them. Place the two shaft halves next to each other and: •...

  • Page 31: Coupling The Machine

    Coupling the machine Safety Coupling the machine General Observe the safety information Observe the safety information. Disregard for safety information can lead to serious or fatal injury. See chapter »Safety«, page 7. Increased risk of injury When the machine is being coupled to the tractor, there is an increased risk of injury.

  • Page 32: Coupling The Machine

    Coupling the machine Coupling the machine Genuine fixing pins from the manufacturer Use only genuine fixing pins from the manufacturer. These have the required strength. Other pins can break. Damage to the machine or accidents may be caused as a result. The rotary rake is coupled to the pending attachment or a lift link Fixing pin drawbar with a fixing pin and secured with a safety splint.
  • Page 33 Coupling the machine Coupling to the pending attachment Gear box Parking stand in the correct park position After removing the parking stand from the drawbar, make sure that it is correctly mounted on the machine. Otherwise, the machine may be damaged. For coupling onto the pending attachment, you require a parking stand [+].
  • Page 34 Coupling the machine Coupling to the lift link drawbar Lock the height adjustment of the lower link Lock the height adjustment of the lower link. Comply with the tractor operating manual. Unintentionally raising the lower links can irreparably damage the PTO shaft. Lock the lateral setting of the lower links.

  • Page 35: Adjusting The Drawbar Cylinder

    Coupling the machine Adjusting the drawbar cylinder The drawbar cylinder is adjusted differently depending on the equipment: Drawbar cylinder Operation without support wheel: Screw in the spindle on the drawbar cylinder so it is flush. Operation with Unscrew the spindle on the drawbar cylinder about 20 mm. 0 mm Spindle When the support wheel is used, the spindle on the drawbar cylinder...

  • Page 36: Coupling The Pto Shaft

    Coupling the machine Coupling the PTO shaft When coupling the PTO shaft, make sure it is in the correct position. Tractor Check whether the PTO shaft must be shortened before coupling. Shorten the PTO shaft if necessary. → »PTO shaft length«, page 28 Check that the tractor's PTO stub shaft is clean and lubricated.

  • Page 37: Connecting The Electrics

    Coupling the machine Connecting the electrics Check the electrical cables Check the electrical cables. The electrical cables must not chafe or hang loose. Electrical cables that have been torn away or worn through must be replaced. Otherwise, this will cause damage to the machine.

  • Page 38: Connecting The Hydraulics

    Coupling the machine Connecting the hydraulics Check hoses and couplings Check all hydraulic hoses for damage before connecting them. Check all hydraulic couplings for firm seating after connecting them. Defective hydraulic hoses and poorly fitting hydraulic connections can trigger unpredictable movements of the machine, causing severe damage to the machine as well as personal injury.
  • Page 39 Coupling the machine Connecting hydraulic couplings Ensure the connection is correct Make sure that the hydraulics are connected correctly. Otherwise, injuries and damage to the machine may be caused as a result. Close the ball valve. Set the tractor hydraulics to “free float”. Secure the tractor against rolling away, shut off the engine and remove the ignition key.

  • Page 40: Preparing For Use

    Preparing for use Safety The following applies to all preparations for operation: Preparing for use Observe the safety information Observe the safety information. Disregard for safety information can lead to serious or fatal injury. See chapter »Safety«, page 7. Secure the machine Secure the machine against unintentional starting and rolling away.

  • Page 41: Rotor Pitch

    Preparing for use Rotor pitch The rotors are inclined transversely to the chassis. The rotor is already Close the ball valve Close the ball valve before working on the machine or carrying out any adjustment work. If the ball valve is open and there is an operating error, the machine can lower itself and cause serious injuries.

  • Page 42: Working Depth

    Preparing for use Working depth When working, the machine is raised and lowered hydraulically. The machine is lowered as far as the preadjusted depth. The basic setting for the working depth is adjusted using an adjusting screw on the chassis cylinder. •...
  • Page 43 Preparing for use Adjusting the Begin adjustment work with the front rotor: working depth Use the tractor's hydraulic control device to move the machine into the headland position. Chassis cylinder Close the ball valve. Switch off the tractor and secure it. Release the adjusting nut below the chassis using the catch and use the adjusting nut to adjust the working depth.

  • Page 44: Adjusting The Support Wheel

    Preparing for use Adjusting the support wheel The raking quality is optimised in interaction with the working depth and the support wheel. The machine is tilted forward or backwards Crank using the support wheel. After adjusting the working depth, lower the machine: Lynch pin Use the tractor's hydraulic control device to lower the machine into...
  • Page 45 Preparing for use Tine saver [+] For a good swath deposit, both tine legs must run parallel to one another. This must also be ensured after fitting the tine saver. Proceed as follows: Fit one tine saver on each tine. Check the direction of rotation of the rotor.

  • Page 46: Road Transport

    Road transport Safety Before transporting the machine on public roads, please read the Road transport following safety information. Compliance is mandatory and will help you to avoid accidents. Observe the safety information Observe the safety information. Disregard for safety information can lead to serious or fatal injury.

  • Page 47: General

    Road transport General The following worksteps are described in this section: • »Folding in the swath former« • »Straightening the machine« • »Additional swath former [+] in park position« • »Securing the rotors« • »Checking the machine« Folding the Proceed as follows: •...
  • Page 48 Road transport Folding in the swath former No persons within the slewing range While the swath former is being folded in, no persons are allowed within the slewing range. Persons might otherwise be hit by the swath former and injured. Move the rear swath former into the transport position as follows: Swath former Select position B on the pilotbox.
  • Page 49 Road transport Straightening the machine No persons within the slewing range There is an acute risk of injury within the slewing range from machine parts which are slewing or folding. Serious or fatal injury may be caused as a result. Ensure that hydraulic connections are correct Before slewing, always check that the hydraulics for the slewing device are correctly connected to a double-acting control valve.
  • Page 50 Road transport Additional swath former [+] in park Collision danger position The additional swath former must be pushed to the right into the transport holder in the direction of travel. There is a risk of collision when folding in the rear swath former. When it is not being used or during road transport, place the additional Additional swath former swath former in the park position from the right and secure it.
  • Page 51 Road transport Tine supports in transport holder Switch off the tractor and secure it Switch off the tractor, remove the ignition key, and secure the tractor against rolling away. An unsecured tractor can run you over or trap you. Serious or fatal injury may be caused as a result. Loosen the lynch pin on the tine support.
  • Page 52 Road transport Securing the rotors Securing the rotors Secure the front rotor before road travel. Unsecured rotors can rotate and the tine supports will protrude beyond the deflector bar as a result. Overhanging tine supports can cause accidents with serious injuries, for example, to pedestrians. A maximum of 6 tine supports can remain inserted on the front rotor for transport journeys: •...

  • Page 53: Checking The Machine

    Road transport Checking the Prior to road transport, check the machine against this check list: machine Rotary rake aligned and raised? Swath former in transport position? Ball valve closed? Deflector bars pushed in? Locks checked for firm seating? Tine support in transport position? Tyre pressures correct? When coupling onto the lift link drawbar, is the lower link laterally fixed?

  • Page 54: General

    Preparations on the field Safety The following applies for all preparations on the field: Preparations on the field Observe the safety information Observe the safety information. Disregard for safety information can lead to serious or fatal injury. See chapter »Safety«, page 7. Switch off the tractor and secure it Before you dismount: Switch off the tractor.

  • Page 55: Swath Deposit

    Preparations on the field Swath deposit The following basic types of swath deposit are possible: • Single swath • Double swath • Fodder slow gear • Border swath (working at the field edge) Double swath Single swath Fodder slow gear Border swaths...

  • Page 56: Single Swath

    Preparations on the field Single swath In single swath mode, the rear rotor is swivelled to the left. By slewing the front rotor the following positions are possible: • Fodder slow gear • Border swaths. Adjusting the single swath Collision danger Check that the rear swath former is fitted into the front hole pattern on the swath former carrier.
  • Page 57 Preparations on the field Adjusting the fodder slow gear To reduce crop contamination, the front rotor can be slewed to the left when in the single swath position. In this way the tractor travels over the crop with the left-hand pair of wheels only. When in the "Single swath"...
  • Page 58 Preparations on the field Adjusting the border swaths During the first circuit of the field, the tractor may be unable to travel near enough to the field edge to be able to pick up the crop. To enable this, the front rotor can be swivelled to the right. When in the "Single swath"...
  • Page 59 Preparations on the field Two single swaths Collision danger In the “Two single swaths” work position, both swath formers are used. Adjustments must be made to both swath formers. There is a risk of collision. Damage to the machine may be caused as a result.
  • Page 60 Preparations on the field Setting two single swaths Set the “Two single swaths” position as follows: Set the selection lever to the two single swaths position. To do so, turn the lever to the rear and lock it. Preselection lever Select position A on the pilotbox.

  • Page 61: Basic Settings

    Preparations on the field Basic settings After road transport, the machine is brought into the work position on the field. Lowering the machine Switch on the tractor. Lower the rotor using the chassis hydraulics until the work position is reached. Fold the machine into its work position.

  • Page 62: Fitting The Deflector Bars

    Preparations on the field Fitting the deflector bars Fit the deflector bar correctly Make sure that you fit the deflector bars correctly. If fitted incorrectly, deflector bars may cause damage to the machine. Insert the left deflector bar through the uppermost hole and secure.

  • Page 63: Rear Swath Former

    Preparations on the field Rear swath former The rear swath former can be adjusted as follows in line with the fodder volume and swath type: • Width and • Direction of travel Observe the folding-down process Nobody may be in the slewing range of the swath former while it is being folded out.

  • Page 64: Additional Swath Former [+]

    Preparations on the field Adjust the height Loosen the bolts. Rear swath former Adjust the height of the swath former. Tighten the bolts in the new position. Additional swath former [+] Risk of collision with the additional swath former When working with the additional swath former, ensure that the tine supports never collide with the front swath former.
  • Page 65 Preparations on the field Adjusting the height and direction of travel Risk of collision on swath former Bolts When swathing in the single swath position, move the swath former forward in the direction of travel and screw in place. Otherwise, the swath former can be damaged. Adjust the height and direction of travel as follows on the additional swath former: Loosen and remove the bolts.

  • Page 66: Operation

    Operation Safety Operation Observe the safety information Observe the safety information. Disregard for safety information can lead to serious or fatal injury. See chapter »Safety«, page 7. No riding on the machine Persons or objects must never be transported on the machine. Carrying passengers on the machine is life-threatening and prohibited.

  • Page 67: General

    Operation General The following worksteps are described in this section: • »Swathing« • »Driving on headlands« Suitable working speeds Select a driving speed (approx. 4 to 12 km/h) at which the crop is picked up cleanly and completely. The working speed depends on the machine settings and the particular crop.

  • Page 68: Swathing

    Operation Swathing Requirements No persons in the working area Ensure that no persons are present in the slewing and working area of the machine. Persons could be caught by the machine within this area. This could result in fatal injury. After setting the machine as described in chapter »Preparations on the field«...

  • Page 69: Driving On Headlands

    Operation Driving on headlands Check the angle of lock The angle between the tractor and machine must never be less than 90°. The top PTO shaft can become buckled. Compressed PTO shafts may cause damage to the machine. Angle never smaller than 90°! The rotor can be raised for crossing swaths that have already been Work position...

  • Page 70: Cleaning And Care

    Cleaning and care Safety The following applies to all cleaning and care work: Cleaning and care Observe the safety information Observe the safety information. Disregard for safety information can lead to serious or fatal injury. See chapter »Safety«, page 7. Secure the machine •...

  • Page 71: Cleaning

    Cleaning and care Cleaning After each use, clean the machine of any coarse dirt and crop residue. Cleaning is performed with a high-pressure cleaner, with the exception of the bearings and piston rods of the hydraulic cylinders. Lower the machine to the work position. After each use, clean the machine of any coarse dirt and crop residue.

  • Page 72: Parking And Storage

    Parking and storage Safety When setting down and parking the machine, special safety Parking and storage precautions have to be observed: Observe the safety information Observe the safety information. Disregard for safety information can lead to serious or fatal injury. See chapter »Safety«, page 7. Keep children away from the machine Forbid children from playing on or around the machine.

  • Page 73: Uncoupling The Machine

    Parking and storage Uncoupling the To uncouple the machine from the tractor, proceed as follows: machine Set the machine down on a firm, level surface and lower it to the Storage pockets work position. Secure the tractor against rolling away, turn off the engine and remove the ignition key.

  • Page 74: After The End Of The Season

    Parking and storage After the end of After the end of the season and if the machine is to be stored for a long period of time, perform the following work: the season Clean the machine thoroughly. Check all the screwed connections and tighten the bolts. Repair or replace any damaged components.

  • Page 75: Maintenance

    Maintenance Safety The following applies to all maintenance work: Maintenance Observe the safety information Observe the safety information. Disregard for safety information can lead to serious or fatal injury. See chapter »Safety«, page 7. Requirements for maintenance work Only perform the maintenance work if you have the required expert knowledge and suitable tools.
  • Page 76 Maintenance Protective measures Additives in oils and lubricants may have adverse effects on health. As marking in accordance with the hazardous goods regulation is not when handling oils or necessary, please always ensure the following: lubricants Avoid skin contact Avoid skin contact with these materials. Protect your skin by means of protective skin cream or oil-resistant gloves.

  • Page 77: General

    Maintenance General This information relates to general maintenance work. For all maintenance work, the machine must be locked in the work position. If the transport position is required for maintenance work, refer to the relevant instructions for the work. Lower the machine to the work position. Secure the machine against rolling away by using chocks.
  • Page 78 Maintenance Maintenance terms Listed in this table are short explanations of the most important maintenance terms. Task Explanation Greasing Apply grease to the slide surfaces using a brush. Lubrication One or two presses of the grease gun, unless specified otherwise. Unless specified otherwise, use only plant-based oils, such as rapeseed oils.

  • Page 79: Screwed Connections

    Maintenance Screwed connections Tightening bolts All bolts must be retightened: • After the first 5 hours of operation. • According to the frequency of use. • At least once a season. Special tightening Observe the special tightening torques for the following screwed connections: torques •...
  • Page 80 Maintenance Tightening torques All screwed connections must be tightened in accordance with the table below, if no other torques are specified. for screwed connections On this machine, bolts with a minimum quality of "8.8" (can be seen on the bolt head) are used. The torque specifications refer to a dry coefficient of friction (0.12).

  • Page 81: Lubrication Points For Grease

    Maintenance Lubrication points for grease Working with a Before applying the grease gun grease gun clean lubricating nipples and grease gun attachment fitting. Lubricate the bearings with one or two presses of the grease gun. If you feel resistance at the second press, do not press a second time. Too much grease will force the bearings apart.

  • Page 82: Lubricating The Pto Shafts

    Maintenance Lubricating the The PTO shaft manufacturer's own operating manual is included with each PTO shaft. This includes detailed information on the relevant PTO shafts version of the PTO shaft. Check the guard components Check all guard components of the PTO shafts for wear or damage (visual inspection).

  • Page 83: Filling Quantities

    Maintenance Filling quantities The rotor gear is equipped with a continuous oil lubrication system. Check the lubricants if there is visible loss of lubricant when the machine is in a horizontal position – at least once per season. If there Inspection glass on the rotor is a visible loss of lubricant, consult your dealer.

  • Page 84: Hydraulics

    Maintenance Hydraulics Hydraulic system at zero pressure Work must only be performed on the hydraulic system if the tractor and machine hydraulic system is at zero pressure. A pressurised hydraulic system can trigger unpredictable movements of the machine and can cause serious machine damage and personal injury.

  • Page 85: Additional Equipment

    Additional equipment Optional You can purchase additional equipment through your dealer. Additional equipment accessories Tine saver For a good swath deposit, both tine legs must run parallel to one another. This must also be ensured after fitting the tine saver. Proceed as follows: Fit one tine saver on each tine.
  • Page 86 Additional equipment Height-adjustable parking stand Parking stand in the correct park position After removing the parking stand from the drawbar, make sure that it is correctly mounted on the machine. Otherwise, the machine may be damaged. For tractors with a pending attachment, a height-adjustable parking stand is available which makes coupling and uncoupling considerably Height-adjustable parking easier.

  • Page 87: Fault Elimination

    Fault elimination Faults Faults can often be eliminated quickly and easily. Before contacting Fault elimination Customer Service, refer to the table to check whether you can remedy the fault yourself. In case of a fault, proceed as follows: Immediately stop operation. Switch off the tractor PTO shaft drive.
  • Page 88 Fault elimination Problem Cause Solution Chapter »Preparing for use«, section Rear tines too high »Rotor pitch«, page 41 Rear rotor not picking up fodder Fodder mass too great Reduce speed. Drive in a larger radius. After-steer the rear rotor when cornering. Poor fodder transfer on the rear Excessively tight cornering Chapter »Preparations on the field«,...

  • Page 89: Circuit Diagrams

    Circuit diagrams Hydraulic system Circuit diagrams connection diagram Pressure line Tank line Tractor hydraulics Single-acting control device Double-acting control device Drawbar cylinder Valve block Chassis cylinder, front Chassis cylinder, rear Front steering cylinder Swath former cylinder Rear steering cylinder...

  • Page 90: Pilotbox Circuit Diagram

    Circuit diagrams Pilotbox circuit diagram On/Off switch Preselection switch Pilot lamp Hydraulic valves A, B, C Pilotbox Solenoid valve Function connection Swivels the tractor's rear rotor to the left or right using the tractor's hydraulic control device. Folds the swath former in and out using the tractor's hydraulic control device.

  • Page 91: Lighting Circuit Diagram

    Circuit diagrams Lighting circuit diagram 2/54g 3/31 5/58R 6/54 7/58L Connecting plug 7-pin in accordance with ISO 1724 Yellow Green White Brown Black Connector and socket 7-pin in accordance with ISO 1724 Yellow Black Right indicator Right brake light Earth Left indicator Right rear light White...

  • Page 92: Decommissioning

    Decommissioning Environment During decommissioning, the individual parts must be disposed of Decommissioning properly and in an environmentally friendly manner. Please observe the waste disposal guidelines that are currently in force. Plastic parts Plastic parts can be disposed of in normal household waste (residual waste), depending on the laws specific to your country.

  • Page 93: Ec Declaration Of Conformity

    2006/42/EC Taarupstrandvej 25 DK-5300 Kerteminde Denmark declare with sole responsibility that the product SwatMaster 7132 Vario Andex 714 T Vario 9471 S Vario and its accessories Model: VF6962 Valid from machine number: VF69621551 – to which this declaration relates, comply with the relevant basic health...
  • Page 94 EC Declaration of Conformity...

  • Page 95: Index

    Index Index Adjusting Machine Chassis Putting away after the season Rotor pitch Uncoupling Single swath Maintenance Swath width, rear Lubrication points Working depth Maintenance intervals Adjusting the drawbar cylinder Maintenance terms Screwed connections Care Checking the scope of delivery Night swaths Circuit diagram Hydraulics Lighting equipment...
  • Page 96 Index Swath deposit Fodder slow gear Night swaths Single swath Two single swaths Swath former, rear Adjusting Target group Technical specifications Dimensions in transport position Machine equipment Tractor equipment Weights Tightening torques Screwed connections Spring tines Tine arms Wheel nuts Tractors without quick-release coupling Tyres Tyre pressure...
