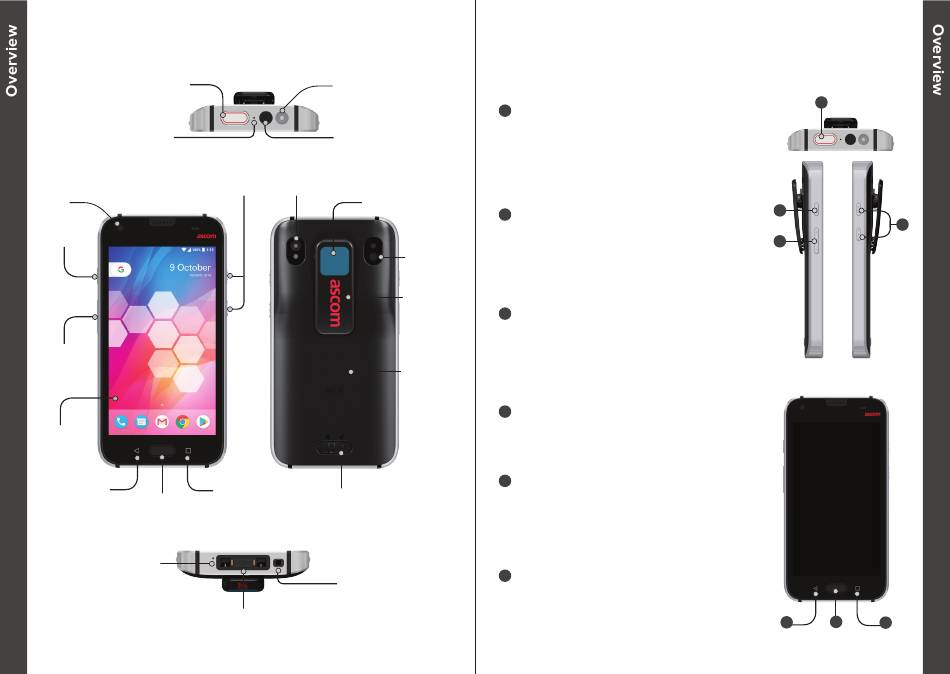

Handset

Top multifunction
button
Microphone
Multifunction
Front camera
Power
button
Volume
button
Main
display
Back
button
Home button
Microphone
Micro USB charging connector
ascom
1
Multi-color
LED
Ascom IR location
Exchangeable
Back Camera

buttons

color pad for clip
Overview
button
Battery cover lock
3.5 mm
Headset jack
© 2018 Ascom (Sweden) AB. All rights reserved. TD93301 / 2018 / PA1
Buttons
The handset is equipped with Back, Home, Overview, Power, Volume up / down,
and three Multifunction buttons.
Multifunction buttons
1
• Depending on configuration these button can
be used for different purposes. For example,
you can scan a barcode or start an app.
Power Button
2
• Long press to turn the handset on / off.
Barcode
• Press to wake up the screen from sleep mode.
scanner
• Press to lock and put the handset to sleep.
Clip
Volume Button
3
• Press up to increase or press down to decrease
the speaker and a loudspeaker volume.
Battery
• Press and hold to put in a silent mode.
pack
Back Button
4
• Press to navigate backwards, to the previous
screen.
Home Button
5
• Press to wake the screen from the sleep mode.
• In unlocked mode, press to navigate to the
Home screen from any app.
Overview Button
6
• Press to see a list of all active apps.
© 2018 Ascom (Sweden) AB. All rights reserved. TD93301 / 2018 / PA1
1
2
1
3
4 5
6
ascom
2
