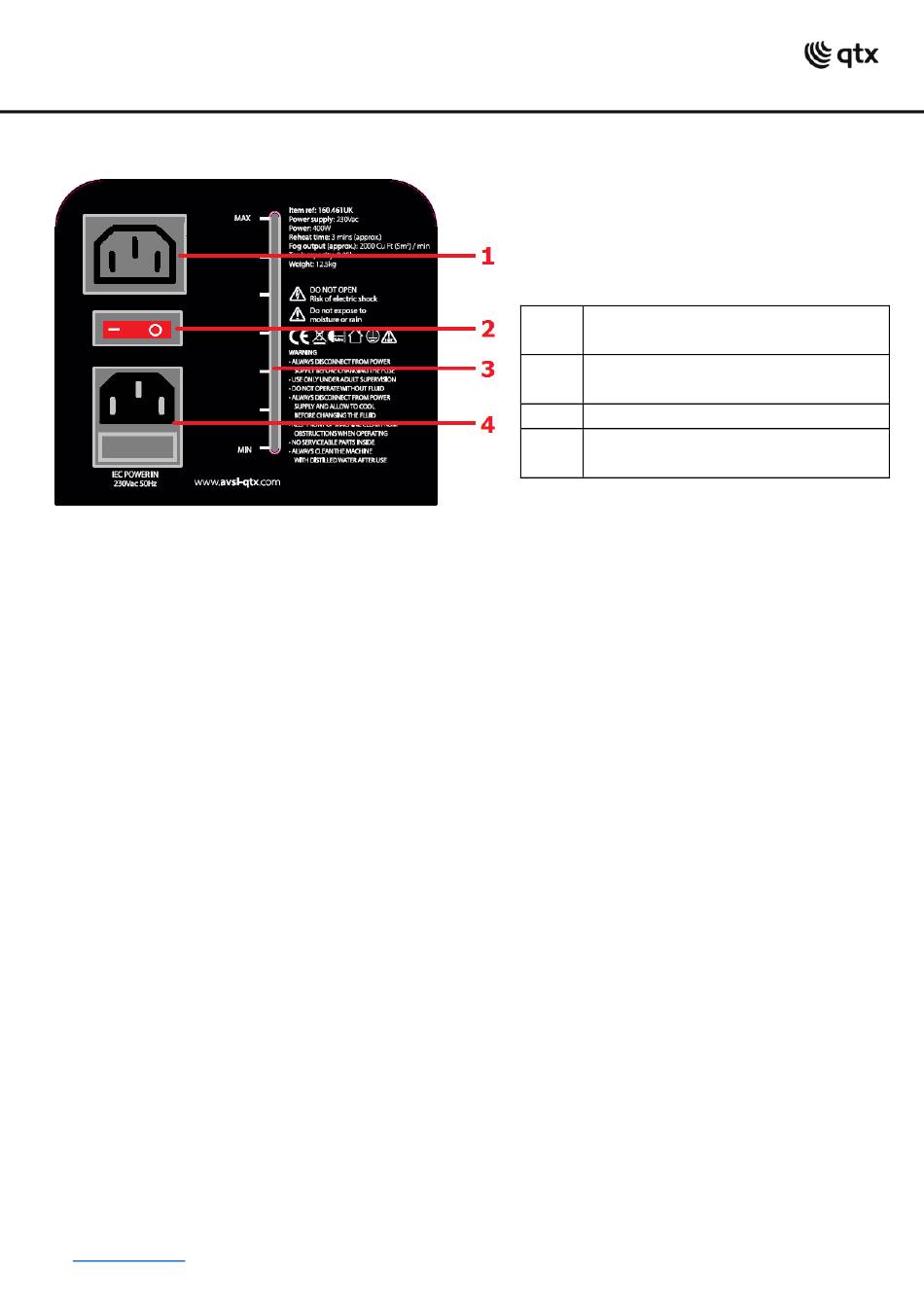

Rear Panel

Setting up

The QTFX-400 requires fog fluid to produce the effect.
It is recommended to use one of the range of qtx fog fluids for best results.
A chart for recommended fog fluids is included further along in this document
• Unscrew the top cap of the tank and remove to fill with the selected fog fluid
• Replace the cap and close securely, ensuring the pipe is fed down to the bottom of the
bottle so a consistent flow of fluid is supplied to the machine
• Connect the supplied remote control to the female IEC on the rear panel
• Connect the IEC mains plug

Operation

• Check the fog fluid level indicator at the rear and fill if necessary
•
Switch the mains power on
• Heat up time is usually between 3-4 minutes. Please ensure that the remote button is
not pressed during the heat up time.
• When the machine is ready to operate, the light on the remote control will illuminate.
You may now press the button for fog on demand
• When the remote control light is off, the QTFX-400 needs time to re-heat. Do not
attempt to produce fog until the light is lit.
• During prolonged use, periodically check that the fluid level is not empty
• Switch off when not in use. Unplug from mains if not in use for long periods
www.avsl.com
Remote control connection
1
(IEC female)
Mains power on/off
2
rocker switch
3 Fog fluid fill level indication
Mains inlet (IEC male)
4
and fuse holder
