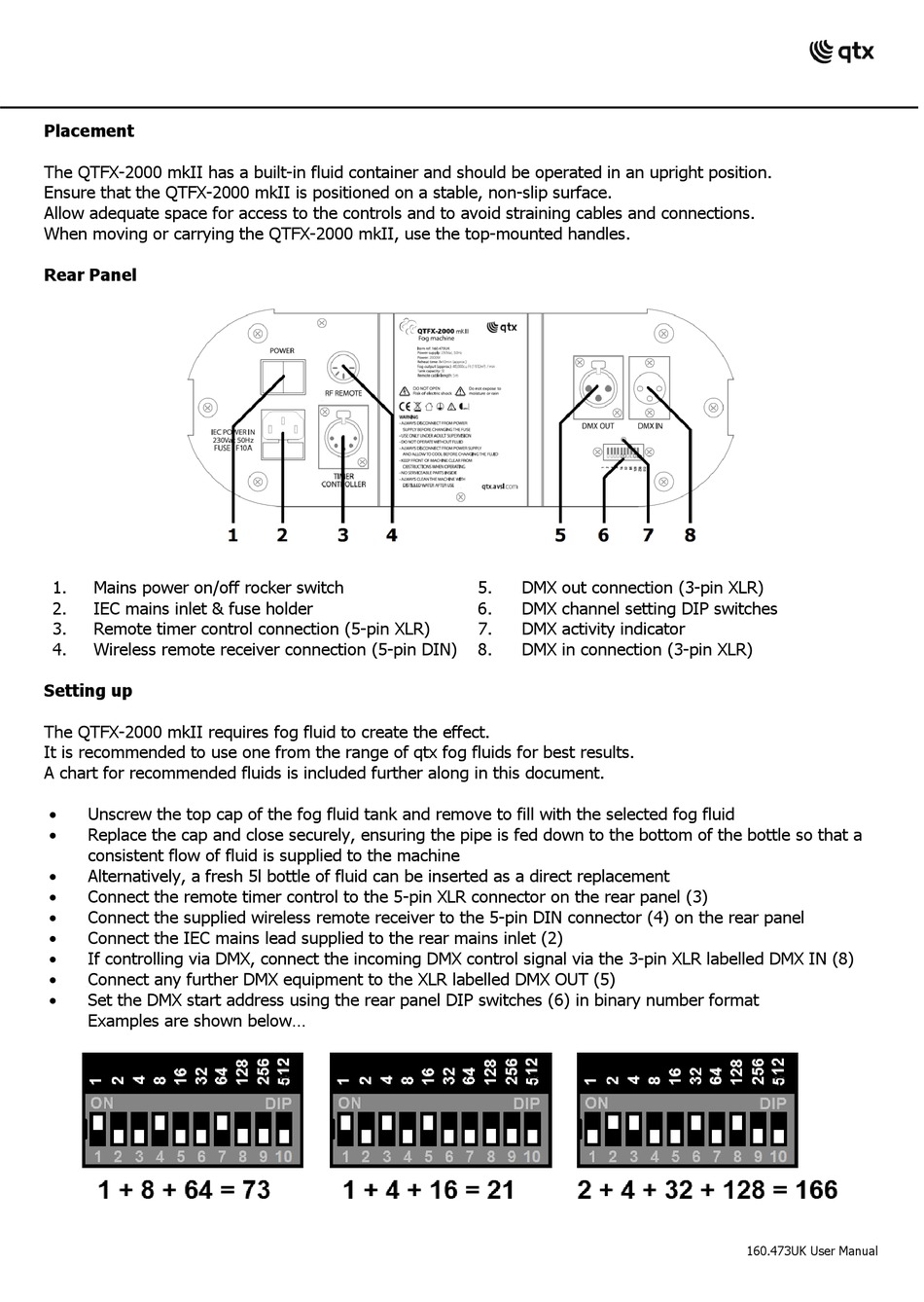

Placement

The QTFX-2000 mkII has a built-in fluid container and should be operated in an upright position.
Ensure that the QTFX-2000 mkII is positioned on a stable, non-slip surface.
Allow adequate space for access to the controls and to avoid straining cables and connections.
When moving or carrying the QTFX-2000 mkII, use the top-mounted handles.

Rear Panel

1. Mains power on/off rocker switch
2. IEC mains inlet & fuse holder
3. Remote timer control connection (5-pin XLR)
4. Wireless remote receiver connection (5-pin DIN)

Setting up

The QTFX-2000 mkII requires fog fluid to create the effect.
It is recommended to use one from the range of qtx fog fluids for best results.
A chart for recommended fluids is included further along in this document.
 Unscrew the top cap of the fog fluid tank and remove to fill with the selected fog fluid
 Replace the cap and close securely, ensuring the pipe is fed down to the bottom of the bottle so that a
consistent flow of fluid is supplied to the machine
 Alternatively, a fresh 5l bottle of fluid can be inserted as a direct replacement
 Connect the remote timer control to the 5-pin XLR connector on the rear panel (3)
 Connect the supplied wireless remote receiver to the 5-pin DIN connector (4) on the rear panel
 Connect the IEC mains lead supplied to the rear mains inlet (2)
 If controlling via DMX, connect the incoming DMX control signal via the 3-pin XLR labelled DMX IN (8)
 Connect any further DMX equipment to the XLR labelled DMX OUT (5)
 Set the DMX start address using the rear panel DIP switches (6) in binary number format
Examples are shown below...
5. DMX out connection (3-pin XLR)
6. DMX channel setting DIP switches
7. DMX activity indicator
8. DMX in connection (3-pin XLR)
160.473UK User Manual
