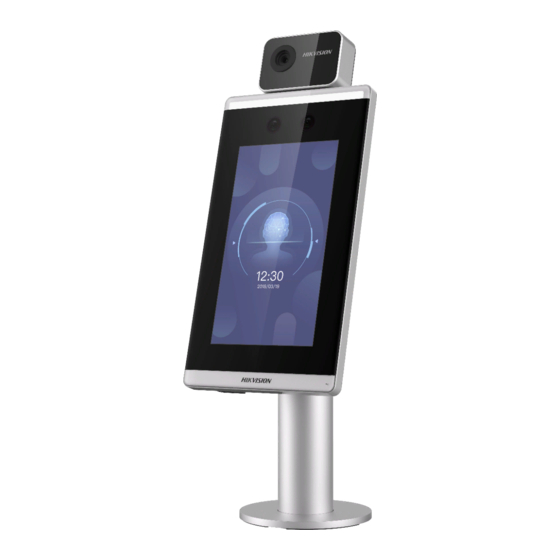

DS-K5671-3XF Series Face Recognition
Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K5671-3XF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K5671-3XF Series

Summary of Contents for HIKVISION DS-K5671-3XF Series

  • Page 1 DS-K5671-3XF Series Face Recognition Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K5671-3XF Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K5671-3XF Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K5671-3XF Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K5671-3XF Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K5671-3XF Series Face Recognition Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K5671-3XF Series Face Recognition Terminal User Manual Available Models Product Name Model Face Recognition Terminal DS-K5671-3XF/ZU Use only power supplies listed in the user instructions: Model Manufacturer Standard C2000IC12.0-24P-DE MOSO Power Supply Technology Co., Ltd. C2000IC12.0-24P-GB MOSO Power Supply Technology Co., Ltd.

  • Page 10: Table Of Contents

    DS-K5671-3XF Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 Chapter 2 Appearance ........................ 3 Chapter 3 Installation ......................... 5 3.1 Installation Environment ......................5 3.2 Mount With Bracket ....................... 5 3.2.1 Preparation before Mounting with Bracket ..............
  • Page 11 DS-K5671-3XF Series Face Recognition Terminal User Manual 7.1.2 Login by Activation Password ..................30 7.2 Communication Settings ...................... 31 7.2.1 Set Wired Network Parameters .................. 32 7.2.2 Set Wi-Fi Parameters ....................33 7.2.3 Set RS-485 Parameters ....................35 7.2.4 Set Wiegand Parameters ..................... 36 7.3 User Management .......................
  • Page 12 DS-K5671-3XF Series Face Recognition Terminal User Manual 7.10.4 Set Manual and Auto Attendance via Device ............58 7.11 System Maintenance ......................60 7.12 Video Intercom ........................62 7.12.1 Call Client Software from Device ................62 7.12.2 Call Center from Device .................... 63 7.12.3 Call Device from Client Software ................
  • Page 13 DS-K5671-3XF Series Face Recognition Terminal User Manual 8.5.15 Set Image Parameters ....................83 8.5.16 Set Supplement Light Brightness ................84 8.5.17 Time and Attendance Settings .................. 85 8.5.18 Set Video Intercom Parameters ................88 8.5.19 Configure SIP Parameters ..................89 8.5.20 Access Control Settings .....................
  • Page 14 DS-K5671-3XF Series Face Recognition Terminal User Manual 9.6 Set Access Group to Assign Access Authorization to Persons ..........119 9.7 Configure Advanced Functions ..................121 9.7.1 Configure Device Parameters ..................121 9.7.2 Configure Device Parameters ..................128 9.8 Door Control ........................131 9.8.1 Control Door Status ....................

  • Page 15: Chapter 1 Overview

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview The face recognition terminal is a kind of access control device integrated with temperature screening function. It can fast taking skin-surface temperature and upload abnormal temperature event to the center, which can be widely applied in multiple scenarios, such as enterprises, stations, dwellings, factories, schools, campus and so on.
  • Page 16 DS-K5671-3XF Series Face Recognition Terminal User Manual Supports 6 attendance status, including check in, check out, break in, break out, overtime in, ● overtime out Audio prompt for authentication result ●...

  • Page 17: Chapter 2 Appearance

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the face recognition terminal: Figure 2-1 Face Recognition Terminal Diagram Table 2-1 Description of Face Recognition Terminal Name USB Interface IR Light...
  • Page 18 DS-K5671-3XF Series Face Recognition Terminal User Manual Name Camera Touch Screen...

  • Page 19: Chapter 3 Installation

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Avoid backlight, direct sunlight, and indirect sunlight. ● For better face recognition, there should be light source in or near the installation environment. ● Sunlight, wind, hot/cool air from air conditioner and other external factors, which may affect ●...
  • Page 20 DS-K5671-3XF Series Face Recognition Terminal User Manual Note Solder after pressing rivets to avoid water from entering. Figure 3-1 Drill Holes on Turnstile 3. Solder the other four holes, polish the surface, and implement wire drawing. 4. Solder circular tubes on the turnstile’s inner surface to avoid water from entering.

  • Page 21: Mount With Bracket

    DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 3-2 Solder Tubes 3.2.2 Mount with Bracket Steps 1. Rotate to open the lower cover. 2. Route the cables through the cable hole on the turnstile. 3. Align the holes on the base with those on the turnstile and place the device with bracket on the turnstile.
  • Page 22 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 3-3 Secure Bracket and Turnstile 5. Install the lower cover back on the base and rotate to secure. 6. Adjust the device elevation. 1) Loosen the screws inside. 2) Adjust the device elevation.
  • Page 23 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 3-5 Adjust Elevation 7. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen.

  • Page 24: Chapter 4 Wiring

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 4 Wiring You can connect the RS-485 terminal with the RS-485 card reader, connect the NC and COM terminal with the door lock, connect the SENSOR terminal with the door contact, the BTN/GND...
  • Page 25 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 4-1 Terminal Diagram The descriptions of the terminals are as follows:...
  • Page 26 DS-K5671-3XF Series Face Recognition Terminal User Manual Table 4-1 Terminal Descriptions Group Function Color Name Description Group A Power Input +12 V 12 VDC Power Supply Black Ground Group B Alarm Input Yellow/Blue Alarm Input 1 Yellow/Black Ground Yellow/Orange IN2...

  • Page 27: Wire Normal Device

    DS-K5671-3XF Series Face Recognition Terminal User Manual Group Function Color Name Description Yellow/Green SENSOR Door Contact Yellow/Gray Exit Door Wiring 4.2 Wire Normal Device You can connect the terminal with normal peripherals. The wiring diagram without secure door control unit is as follows.

  • Page 28: Wire Secure Door Control Unit

    DS-K5671-3XF Series Face Recognition Terminal User Manual The suggested power cable's diameter: 22 AWG. The suggested other cable's diameter: 26 AWG. ● Do not wire the device to the electric supply directly. ● Warning The face recognition terminal shall adapt an external listed Class 2 power supply with surge protected function.

  • Page 29: Chapter 5 Activation

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.
  • Page 30 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least...

  • Page 31: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 32: Activate Device Via Client Software

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note Characters containing admin and nimda are not supported to be set as activation password. 4. Click Activate to start activation. Status of the device becomes Active after successful activation. 5. Modify IP address of the device.

  • Page 33: Activate Via Web Browser

    DS-K5671-3XF Series Face Recognition Terminal User Manual 5. Click Activate to open the Activation dialog. 6. Create a password in the password field, and confirm the password. Caution The password strength of the device can be automatically checked. We highly recommend you...

  • Page 34: Chapter 6 Quick Operation

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 6 Quick Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system. By default, the system language is English.
  • Page 35 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 6-1 Welcome Page 2. Tap OK to save.

  • Page 36: Set Network Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note You can also change the settings in System Settings. ● If you install the device indoors near the window or the face recognition function is not ● working well, select Others. If you do not configure the application mode and tap Next, the system will select Indoor by ●...
  • Page 37 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 6-2 Select Network Note Disconnect the wired network before connecting a Wi-Fi. 2. Tap Next. Wired Network Note Make sure the device has connected to a network. If enable DHCP, the system will assign the IP address and other parameters automatically.

  • Page 38: Set Administrator

    DS-K5671-3XF Series Face Recognition Terminal User Manual Wi-Fi Select a Wi-Fi and enter the Wi-Fi's password to get connected. Or tap Add Wi-Fi and enter the Wi-Fi's name and the password to get connected. 3. Optional: Tap Skip to skip network settings.
  • Page 39 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 6-3 Add Administrator Page 3. Select a credential to add. Note Up to one credential should be added.
  • Page 40 DS-K5671-3XF Series Face Recognition Terminal User Manual : Face forward at the camera. Make sure the face is in the face recognition area. Click capture and click to confirm. : Enter the card No. or present card on the card presenting area. Click OK.

  • Page 41: Chapter 7 Basic Operation

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.
  • Page 42 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-1 Admin Login 2. Authenticate the administrator's face or card to enter the home page.
  • Page 43 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-2 Home Page Note The device will be locked for 30 minutes after 5 failed attempts. 3. Optional: Tap and you can enter the device activation password for login. 4. Optional: Tap...

  • Page 44: Login By Activation Password

    DS-K5671-3XF Series Face Recognition Terminal User Manual 7.1.2 Login by Activation Password You should login the system before other device operations. If you do not configure an administrator, you should follow the instructions below to login. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture to enter password entering page.

  • Page 45: Communication Settings

    DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-3 Home Page 7.2 Communication Settings You can set the network parameters, the Wi-Fi parameter, the RS-485 parameters, and the Wiegand parameters on the communication settings page.

  • Page 46: Set Wired Network Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual 7.2.1 Set Wired Network Parameters You can set the device wired network parameters, including the IP address, the subnet mask, the gateway, and DNS parameters. Steps 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page.

  • Page 47: Set Wi-Fi Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual - Disable DHCP, and you should set the IP address, subnet mask, and gateway manually. Note The device's IP address and the computer IP address should be in the same IP segment. 4. Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the alternate DNS server.
  • Page 48 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-5 Wi-Fi Settings 3. Enable the Wi-Fi function. 4. Configure the Wi-Fi parameters. - Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK. - If the target Wi-Fi is not in the list,tap Add Wi-Fi. Enter the Wi-Fi's name and password. And tap OK.

  • Page 49: Set Rs-485 Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual - If disable DHCP, you should enter the IP address, the subnet mask, and the gateway manually. 6. Tap OK to save the settings and go back to the Wi-Fi tab. 7. Tap to save the network parameters.

  • Page 50: Set Wiegand Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address according to the door No.

  • Page 51: User Management

    DS-K5671-3XF Series Face Recognition Terminal User Manual 7.3 User Management On the user management interface, you can add, edit, delete and search the user. 7.3.1 Add Administrator The administrator can login the device backend and configure the device parameters. Steps 1.

  • Page 52: Add Face Picture

    DS-K5671-3XF Series Face Recognition Terminal User Manual 7.3.2 Add Face Picture Add user's face picture to the device. And the user can use the face picture to authenticate. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture and log in the backend.
  • Page 53 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-8 Add Face Picture 6. Look at the camera.

  • Page 54: Add Card

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate. ● For details about the instructions of adding face pictures, see Tips When Collecting/ ●...

  • Page 55: View Password

    DS-K5671-3XF Series Face Recognition Terminal User Manual 7. Configure the card No. - Enter the card No. manually. - Present the card over the card presenting area to get the card No. Note The card No. cannot be empty. ●...

  • Page 56: Set Authentication Mode

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note The password cannot be edited. It can only be applied by the platform. 6. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission.

  • Page 57: Temperature Measurement Settings

    DS-K5671-3XF Series Face Recognition Terminal User Manual Edit User On the User Management page, select a user from the user list to enter the Edit User page. Follow the steps in User Management to edit the user parameters. Tap to save the settings.
  • Page 58 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-9 Temperature Measurement Parameters The available parameters descriptions are as follows:...

  • Page 59: Data Management

    DS-K5671-3XF Series Face Recognition Terminal User Manual Table 7-1 Temperature Measurement Parameters Descriptions Parameter Description Temp. Detection When enabling the function, the device will authenticate the permissions and at the same time take the temperature. When disabling the device, the device will authenticate the permissions only.

  • Page 60: Export Data

    DS-K5671-3XF Series Face Recognition Terminal User Manual 2. On the Home page, tap Data → Import Data . 3. Tap User Data or Face Data. 4. Enter the created password when you exported the data. If you do not create a password when you exported the data, leave a blank in the input box and tap OK immediately.

  • Page 61: Identity Authentication

    DS-K5671-3XF Series Face Recognition Terminal User Manual 7.6 Identity Authentication After network configuration, system parameters configuration and user configuration, you can go back to the initial page for identity authentication. The system will authenticate person according to the configured authentication mode.

  • Page 62: Basic Settings

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note The card can be normal IC card, or encrypted card. ● If the QR Code Scanning function is enabled, you can put the QR code in front of the device ● camera to authenticate via QR code. The dimension of the recognized QR code picture should be larger than 6 cm ×...
  • Page 63 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-10 Basic Settings Page shortcut key, voice, time, language, supplement light, community No., building No., and Unit No. Shortcut Key Choose the shortcut key that displayed on the authentication page, including the QR code...
  • Page 64 DS-K5671-3XF Series Face Recognition Terminal User Manual Note If the combination authentication of face and QR code is supported, and the QR code ● shortcut key is disabled ( there is no QR code shortcut key icon in the authentication page), you can scan the QR code in the middle of the authentication page to authenticate.

  • Page 65: Set Biometric Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual 7.8 Set Biometric Parameters You can customize the face parameters to improve the face recognition performance. The configurable parameters includes application mode, face liveness level, face recognition distance, face recognition interval, wide dynamic, face 1:N security level, face 1:1 security level, ECO settings, and face with mask detection.

  • Page 66: Set Access Control Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual Parameter Description When enabling the ECO mode, you can set the ECO mode’s threshold. The larger the value, the easier the device entering the ECO mode. ECO Mode (1:1) Set the matching threshold when authenticating via ECO mode 1:1 matching mode.
  • Page 67 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-12 Access Control Parameters The available parameters descriptions are as follows: Table 7-3 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode (Terminal Select the face recognition terminal's authentication mode. You Authentication Mode)

  • Page 68: Time And Attendance Status Settings

    DS-K5671-3XF Series Face Recognition Terminal User Manual Parameter Description Note Biometric recognition products are not 100% applicable to ● anti-spoofing environments. If you require a higher security level, use multiple authentication modes. If you adopt multiple authentication modes, you should ●...

  • Page 69: Set Manual Attendance Via Device

    DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-13 Disable Attendance Mode Set the Attendance Mode as Disable. You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform.
  • Page 70 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-14 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.

  • Page 71: Set Auto Attendance Via Device

    DS-K5671-3XF Series Face Recognition Terminal User Manual 7.10.3 Set Auto Attendance via Device Set the attendance mode as auto, and you can set the attendance status and its available schedule. The system will automatically change the attendance status according to the configured schedule.

  • Page 72: Set Manual And Auto Attendance Via Device

    DS-K5671-3XF Series Face Recognition Terminal User Manual 5. Optional: Select an status and change its name if required. The name will be displayed on the T & A Status page and the authentication result page. 6. Set the status' schedule.
  • Page 73 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-16 Manual and Auto Mode 3. Enable the Attendance Status function. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.

  • Page 74: System Maintenance

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note The attendance status will be valid within the configured schedule. Result On the initial page and authenticate. The authentication will be marked as the configured attendance status according to the schedule. If you tap the edit icon on the result tab, you can select a status to take attendance manually, the authentication will be marked as the edited attendance status.
  • Page 75 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 7-17 Maintenance Page System Information You can view the device model, serial No., versions, address, production data, QR code, and open source code license.

  • Page 76: Video Intercom

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note The page may vary according to different device models. Refers to the actual page for details. Capacity You can view the number of, user, face picture, card, and event. Device Upgrade Plug the USB flash drive in the device USB interface. Tap Upgrade, and the device will read the digicap.dav file in the USB flash drive to start upgrading.

  • Page 77: Call Center From Device

    DS-K5671-3XF Series Face Recognition Terminal User Manual 6. Tap Answer on the pop-up page of the client software and you can start two-way audio between the device and the client software. Note If the device is added to multiple client softwares and when the device is calling the client software, only the first client software added the device will pop up the call receiving window.

  • Page 78: Call Room From Device

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note For details about adding device, see Add Device. 5. Enter the Live View page and double-click the added device to start live view. Note For details about operations in the Live View page, see Live View in the user manual of the client software.
  • Page 79 DS-K5671-3XF Series Face Recognition Terminal User Manual 1) Tap on the device initial page. 2) Tap to call the mobile client.

  • Page 80: Chapter 8 Operation Via Web Browser

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 8 Operation via Web Browser 8.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. For detailed information about activation, see Activation .
  • Page 81 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-1 Live View Page Function Descriptions: Select the image size when starting live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds.

  • Page 82: Person Management

    DS-K5671-3XF Series Face Recognition Terminal User Manual 8.3 Person Management Click and add the person's information, including the basic information, card, authentication mode, and the picture. Click OK to save the person. Add Basic Information Click User → Add to enter the Add Person page.

  • Page 83: Search Event

    DS-K5671-3XF Series Face Recognition Terminal User Manual 8.4 Search Event Click Search to enter the Search page. Figure 8-2 Search Page Enter the search conditions, including the employee ID, the name, the card No., the start time, and the end time, and click Search.

  • Page 84: View Device Information

    DS-K5671-3XF Series Face Recognition Terminal User Manual Set Live View Parameters Click Configuration → Local to enter the Local page. Configure the stream type, the play performance, auto start live view, and the image format and click Save. Set Record File Saving Path Click Configuration →...

  • Page 85: Set Dst

    DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-3 Time Settings Click Save to save the settings after the configuration. Time Zone Select the device located time zone from the drop-down list. Time Sync. You should set the NTP server's IP address, port No., and interval.

  • Page 86: View Open Source Software License

    DS-K5671-3XF Series Face Recognition Terminal User Manual 4. Click Save to save the settings. 8.5.5 View Open Source Software License Go to Configuration → System → System Settings → About Device , and click View Licenses to view the device license.

  • Page 87: Log Query

    DS-K5671-3XF Series Face Recognition Terminal User Manual Unlink APP Account Unlink the Hik-Connect account from the platform. Import and Export Parameters Click Configuration → System → Maintenance → Upgrade & Maintenance . Export Click Export to export the logs or device parameters.

  • Page 88: Certificate Management

    DS-K5671-3XF Series Face Recognition Terminal User Manual Compatible Mode The user information verification is compatible with the old client software version when logging in. Enable SSH To raise network security, disable SSH service. The configuration is only used to debug the device for the professionals.

  • Page 89: Change Administrator's Password

    DS-K5671-3XF Series Face Recognition Terminal User Manual Install Other Authorized Certificate If you already has an authorized certificate (not created by the device), you can import it to the device directly. Steps 1. Go to Configuration → System → Security → Certificate Management .

  • Page 90: View Device Arming/Disarming Information

    DS-K5671-3XF Series Face Recognition Terminal User Manual Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. 8.5.11 View Device Arming/Disarming Information View device arming type and arming IP address. Go to Configuration → Arming/Disarming Information .
  • Page 91 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-6 TCP/IP Settings Page Set the parameters and click Save to save the settings. DHCP If uncheck the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, MTU, and the device port.
  • Page 92 DS-K5671-3XF Series Face Recognition Terminal User Manual Set Port Parameters Set the HTTP, RTSP, HTTPS and Server port parmaeters. Click Configuration → Network → Basic Settings → Port . HTTP It refers to the port through which the browser accesses the device. For example, when the HTTP Port is modified to 81, you need to enter http://192.0.0.65:81 in the browser for login.
  • Page 93 DS-K5671-3XF Series Face Recognition Terminal User Manual 3. Select a Wi-Fi - Click of a Wi-Fi in the list and enter the Wi-Fi password. - Click Add and enter a Wi-Fi's name, password, and encryption type. Click Connect. When the Wi-Fi is connected, click OK.

  • Page 94: Set Video And Audio Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual 5. Click Save to enable the settings. Set ISUP Parameters Set the ISUP parameters for accessing device via ISUP protocol. Steps Note The function should be supported by the device. 1. Click Configuration → Network → Advanced Settings → Platform .
  • Page 95 DS-K5671-3XF Series Face Recognition Terminal User Manual Set Video Parameters Click Configuration → Video/Audio → Video . Figure 8-8 Video Settings Page Set the stream type, the video type, the bitrate type, the frame rate, the Max. bitrate, and the video encoding.

  • Page 96: Customize Audio Content

    DS-K5671-3XF Series Face Recognition Terminal User Manual 8.5.14 Customize Audio Content Customize the output audio content when authentication succeeded and failed. Steps 1. Click Configuration → Video/Audio → Audio Prompt . Figure 8-9 Customize Audio Content 2. set the appellation.

  • Page 97: Set Image Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual 1) Click Add. 2) Set the time duration and the language. Note If authentication is failed in the configured time duration, the device will broadcast the configured content. 3) Enter the audio content.

  • Page 98: Set Supplement Light Brightness

    DS-K5671-3XF Series Face Recognition Terminal User Manual NTSC 30 frames per second. Suitable for the USA, Canada, Japan, Taiwan (China), Korea, the Philippines, etc. Enable or disable the WDR function. When there are both very bright and very dark areas simultaneously in the view, WDR balances the brightness level of the whole image and provide clear images with details.

  • Page 99: Time And Attendance Settings

    DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-11 Supplement Light Settings Page 2. Select a supplement light type and mode from the drop-down list. If you select the mode as ON, you should set the brightness. 8.5.17 Time and Attendance Settings...
  • Page 100 DS-K5671-3XF Series Face Recognition Terminal User Manual Result You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform. Time Settings Steps 1. Click Configuration → Time Settings to enter the settings page.
  • Page 101 DS-K5671-3XF Series Face Recognition Terminal User Manual Set Auto Attendance via Web Set the attendance mode as auto, and you can set the attendance status and its available schedule. The system will automatically change the attendance status according to the configured schedule.

  • Page 102: Set Video Intercom Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break. 8.5.18 Set Video Intercom Parameters The device can be used as a door station, outer door station, or access control device.

  • Page 103: Configure Sip Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual Set the device installed period No. Building No. Set the device installed building No. Unit No. Set the device installed unit No. Floor No. Set the device installed floor No. Door Station No.

  • Page 104: Access Control Settings

    DS-K5671-3XF Series Face Recognition Terminal User Manual Set the main station's IP address and SIP server's IP address. Click Save. 8.5.20 Access Control Settings Set Authentication Parameters Click Configuration → Access Control → Authentication Settings . Note The functions vary according to different models. Refers to the actual device for details.
  • Page 105 DS-K5671-3XF Series Face Recognition Terminal User Manual Enable the anti-tamper detection for the card reader. Enable Card No. Reversing The read card No. will be in reverse sequence after enabling the function. If select Sub Card Reader: Card Reader Type/Card Reader Description Get card reader type and description.
  • Page 106 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-13 Door Parameters Settings Page Click Save to save the settings after the configuration. Door No. Select the device corresponded door No. Name You can create a name for the door. Open Duration Set the door unlocking duration.
  • Page 107 DS-K5671-3XF Series Face Recognition Terminal User Manual You can set the door lock status when the door lock is powering off. By default, it is Remain Closed. Extended Open Duration The door contact can be enabled with appropriate delay after person with extended access needs swipes her/his card.
  • Page 108 DS-K5671-3XF Series Face Recognition Terminal User Manual Set RS-485 Parameters You can set the RS-485 parameters including the peripheral, address, baud rate, etc. Click Configuration → Access Control → RS-485 Settings . Click Save to save the settings after the configuration.
  • Page 109 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-14 Wiegand Page 2. Check Wiegand to enable the Wiegand function. 3. Set a transmission direction. Input The device can connect a Wiegand card reader. Output The can connect an external access controller. And the two devices will transmit the card No.
  • Page 110 DS-K5671-3XF Series Face Recognition Terminal User Manual Event Storage Settings Select a method to delete the event. You can select from Delete Old Events Periodically, Delete Old Events by Specified Time, or Overwriting. Delete Old Events Periodically Drag the block or enter number to set the period for event deleting. All events will be deleted according to the configured time duration.

  • Page 111: Set Biometric Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual Clear All Pictures in Device Note All pictures cannot be restored once they are deleted. Clear Registered Face Pictures All registered pictures in the device will be deleted. Clear Captured Pictures All captured pictures in the device will be deleted.
  • Page 112 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-15 Smart Settings Page Click Save to save the settings after the configuration. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.
  • Page 113 DS-K5671-3XF Series Face Recognition Terminal User Manual After enabling the face anti-spoofing function, you can set the matching security level when performing live face authentication. Recognition Distance Select the distance between the authenticating user and the device camera. Application Mode Select either others or indoor according to actual environment.

  • Page 114: Set Notice Publication

    DS-K5671-3XF Series Face Recognition Terminal User Manual ECO Mode (1:N) Set the matching threshold when authenticating via ECO mode 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate Face with Mask Detection After enabling the face with mask detection, the system will recognize the captured face with mask picture.

  • Page 115: Temperature Measurement Settings

    DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-16 Theme Page Display Mode You can select display theme for device authentication. You can select Display Mode as Simple or Normal. When you select Simple, the information of name, ID, face picture will be not displayed.
  • Page 116 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 8-17 Temperature Measurement Settings 2. Enable Temperature Measurement. 3. Configure the temperature measurement parameters. Enable Temperature Detection When enabling the function, the device will authenticate the permissions and at the same time take the temperature. When disabling the device, the device will authenticate the permissions only.
  • Page 117 DS-K5671-3XF Series Face Recognition Terminal User Manual When enabling the function, the device will not authenticate the permissions, but only take the temperature. When disabling the function, the device will authenticate the permissions and at the same time take the temperature.
  • Page 118 DS-K5671-3XF Series Face Recognition Terminal User Manual 4. Set the distance between the black body and the camera (straight line), the emissivity of the black body, and the temperature unit. Note The black body's temperature is fixed. 5. Click Calibrate, and draw the black body's position on the page. When + is displayed on the black body on the screen, the black body is calibrated.

  • Page 119: Chapter 9 Client Software Configuration

    DS-K5671-3XF Series Face Recognition Terminal User Manual Chapter 9 Client Software Configuration 9.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 9-1 Flow Diagram of Configuration on Client Software 9.2 Device Management...

  • Page 120: Add Device

    DS-K5671-3XF Series Face Recognition Terminal User Manual Example You can control entrance & exit and manage attendance after adding access control devices to the client; you can perform video intercom with the indoor stations and door stations. 9.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and ISUP protocol.
  • Page 121 DS-K5671-3XF Series Face Recognition Terminal User Manual you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product. Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

  • Page 122: Reset Device Password

    DS-K5671-3XF Series Face Recognition Terminal User Manual Address Edit the address of the device. Port Enter the device port number. The default port number is 8000. User Name Enter the device user name. By default, the user name is admin.

  • Page 123: Manage Added Devices

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note For the following operations for resetting the password, contact our technical support. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 124: Group Management

    DS-K5671-3XF Series Face Recognition Terminal User Manual Upgrade Device View device status on Firmware Upgrade column, check one or more upgradable devices, and click Upgrade Device Firmware to upgrade the selected devices. For details, refer to . Get Events from Device Check one device, and click Get Events from Device to synchronize events.

  • Page 125: Person Management

    DS-K5671-3XF Series Face Recognition Terminal User Manual Steps 1. Enter the Device Management module. 2. Click Device Management → Group to enter the group management page. 3. Select a group from the group list and select the resource type as Access Point, Alarm Input, Alarm Output, etc.

  • Page 126: Import And Export Person Identify Information

    DS-K5671-3XF Series Face Recognition Terminal User Manual Show Persons in Check Show Persons in Sub Organization and select an organization to Sub Organization show persons in its sub organizations. 9.4.2 Import and Export Person Identify Information You can import the information and pictures of multiple persons to the client software in a batch.
  • Page 127 DS-K5671-3XF Series Face Recognition Terminal User Manual Steps 1. Enter the Person module. 2. Select an added organization in the list, or click Add in the upper-left corner to add an organization and then select it. 3. Click Import to open the Import panel and check Face.

  • Page 128: Get Person Information From Access Control Device

    DS-K5671-3XF Series Face Recognition Terminal User Manual Steps 1. Enter the Person module. 2. Optional: Select an organization in the list. Note All persons' face pictures will be exported if you do not select any organization. 3. Click Export to open the Export panel and check Face as the content to export.

  • Page 129: Issue Cards To Persons In Batch

    DS-K5671-3XF Series Face Recognition Terminal User Manual 9.4.4 Issue Cards to Persons in Batch The client provides a convenient way to issue cards to multiple persons in a batch. Steps 1. Enter Person module. 2. Click Batch Issue Cards. All the added persons with no card issued will be displayed in the right panel.
  • Page 130 DS-K5671-3XF Series Face Recognition Terminal User Manual PC running the client by USB interface or COM, and place the card on the card enrollment to read the card number. If not, you can also swipe the card on the card reader of the added access control device to get the card number.

  • Page 131: Configure Schedule And Template

    DS-K5671-3XF Series Face Recognition Terminal User Manual 9.5 Configure Schedule and Template You can configure the template including holiday and week schedule. After setting the template, you can adopt the configured template to access groups when setting the access groups, so that the access group will take effect in the time durations of the template.

  • Page 132: Add Template

    DS-K5671-3XF Series Face Recognition Terminal User Manual 6) Optional: Click in the Operation column to delete this added holiday period from the holiday list. 6. Click Save. 9.5.2 Add Template Template includes week schedule and holiday. You can set week schedule and assign the time duration of access authorization for different person or group.

  • Page 133: Set Access Group To Assign Access Authorization To Persons

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note Up to 4 holidays can be added to one template. 1) Click Holiday tab. 2) Select a holiday in the left list and it will be added to the selected list on the right panel.
  • Page 134 DS-K5671-3XF Series Face Recognition Terminal User Manual Figure 9-2 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 135: Configure Advanced Functions

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note If you change the persons' access information or other related information, you will view the promptAccess Group to Be Applied on the right corner of the client. You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later.
  • Page 136 DS-K5671-3XF Series Face Recognition Terminal User Manual Configure Parameters for Access Control Device After adding the access control device, you can configure its parameters, including overlaying user information on picture, uploading pictures after capturing, saving captured pictures, etc. Before You Start Add access control device to the client.
  • Page 137 DS-K5671-3XF Series Face Recognition Terminal User Manual Press Key to Enter Card Number If you enable this function, you can input the card No. by pressing the key. Wi-Fi Probe If you enable this function, the device can probe the surrounding communication devices' MAC address and upload the MAC address to the system.
  • Page 138 DS-K5671-3XF Series Face Recognition Terminal User Manual You can set the exit button as remaining closed or remaining open. Usually, it is remaining open. Door Locked Time After swiping the normal card and relay action, the timer for locking the door starts working.
  • Page 139 DS-K5671-3XF Series Face Recognition Terminal User Manual Steps 1. Click Access Control → Advanced Function → Device Parameter . 2. In the device list on the left, click to expand the door, select a card reader and you can edit the card reader's parameters on the right.
  • Page 140 DS-K5671-3XF Series Face Recognition Terminal User Manual Select the fingerprint recognition level in the drop-down list. Default Card Reader Authentication Mode View the default card reader authentication mode. Fingerprint Capacity View the maximum number of available fingerprints. Existing Fingerprint Number View the number of existed fingerprints in the device.
  • Page 141 DS-K5671-3XF Series Face Recognition Terminal User Manual user cannot authenticate via the fake face within 5 minutes. Within the 5 minutes, the user can authenticate via the real face twice continuously to unlock. Application Mode You can select indoor or others application modes according to actual environment.

  • Page 142: Configure Device Parameters

    DS-K5671-3XF Series Face Recognition Terminal User Manual Passing Mode Select the controller which will control the barrier status of the device. If you select According to Lane Controller's DIP Settings, the device will follow the lane ● controller's DIP settings to control the barrier. The settings on the software will be invalid.
  • Page 143 DS-K5671-3XF Series Face Recognition Terminal User Manual 2. On the navigation bar on the left, enter Advanced Function → More Parameters . 3. Select an access control device in the device list and click Face Recognition Terminal. 4. Set the parameters.
  • Page 144 DS-K5671-3XF Series Face Recognition Terminal User Manual 5. Set the baud rate, data bit, the stop bit, parity type, communication mode, working mode, and connection mode in the drop-down list. Note When the connection mode is Connect Access Control Device, you can select Card No. or Person ID as the output type.

  • Page 145: Door Control

    DS-K5671-3XF Series Face Recognition Terminal User Manual 1. Enter the Access Control module. 2. On the navigation bar on the left, enter Advanced Function → More Parameters . 3. Select an access control device in the device list and click M1 Card Encryption to enter the M1 Card Encryption page.

  • Page 146: Check Real-Time Access Records

    DS-K5671-3XF Series Face Recognition Terminal User Manual Note For Remain All Unlocked and Remain All Locked, ignore this step. 4. Click the following buttons to control the door. Unlock When the door is locked, unlock it and it will be open for once. After the open duration, the door will be closed and locked again automatically.
  • Page 147 DS-K5671-3XF Series Face Recognition Terminal User Manual Before You Start You have added person(s) and access control device(s) to the client. For details, refer to Person Management and Add Device . Steps 1. Click Monitoring to enter monitoring module. Real-time access records are displayed on the bottom of the page. You can view record details, including card No., person name, event time, door location, temperature, authentication type...
  • Page 148 DS-K5671-3XF Series Face Recognition Terminal User Manual 7. Optional: Click to view details (including person's detailed information and the captured picture). Note In the pop-up window, you can click to view details in full screen.

  • Page 149: Appendix A. Tips When Collecting/Comparing Face Picture

    DS-K5671-3XF Series Face Recognition Terminal User Manual Appendix A. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 150 DS-K5671-3XF Series Face Recognition Terminal User Manual...

  • Page 151: Appendix B. Tips For Installation Environment

    DS-K5671-3XF Series Face Recognition Terminal User Manual Appendix B. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Install the device at least 2 meters away from the light, and at least 3 meters away from the window or door.

  • Page 152: Appendix C. Dimension

    DS-K5671-3XF Series Face Recognition Terminal User Manual Appendix C. Dimension...

  • Page 153: Appendix D. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure D-2 Device Command...
  • Page 154 UD19360B-F...

This manual is also suitable for:

Ds-k5671-3xf/zu

Table of Contents
