Title:
DS-K4E100 Connect to Access Controller or Access
Control Terminal
Product:
Access Control Devices
Preparation
1. Access Controller 2600 series
2. Access Control Terminal
3. Lock DS-K4E100
DS-K4E100 Connect to Access Controller or Access Control Terminal
This document is simply used to guide users how to wire correctly and ensure access
control terminal or K2600 controller can control lock K4E100.

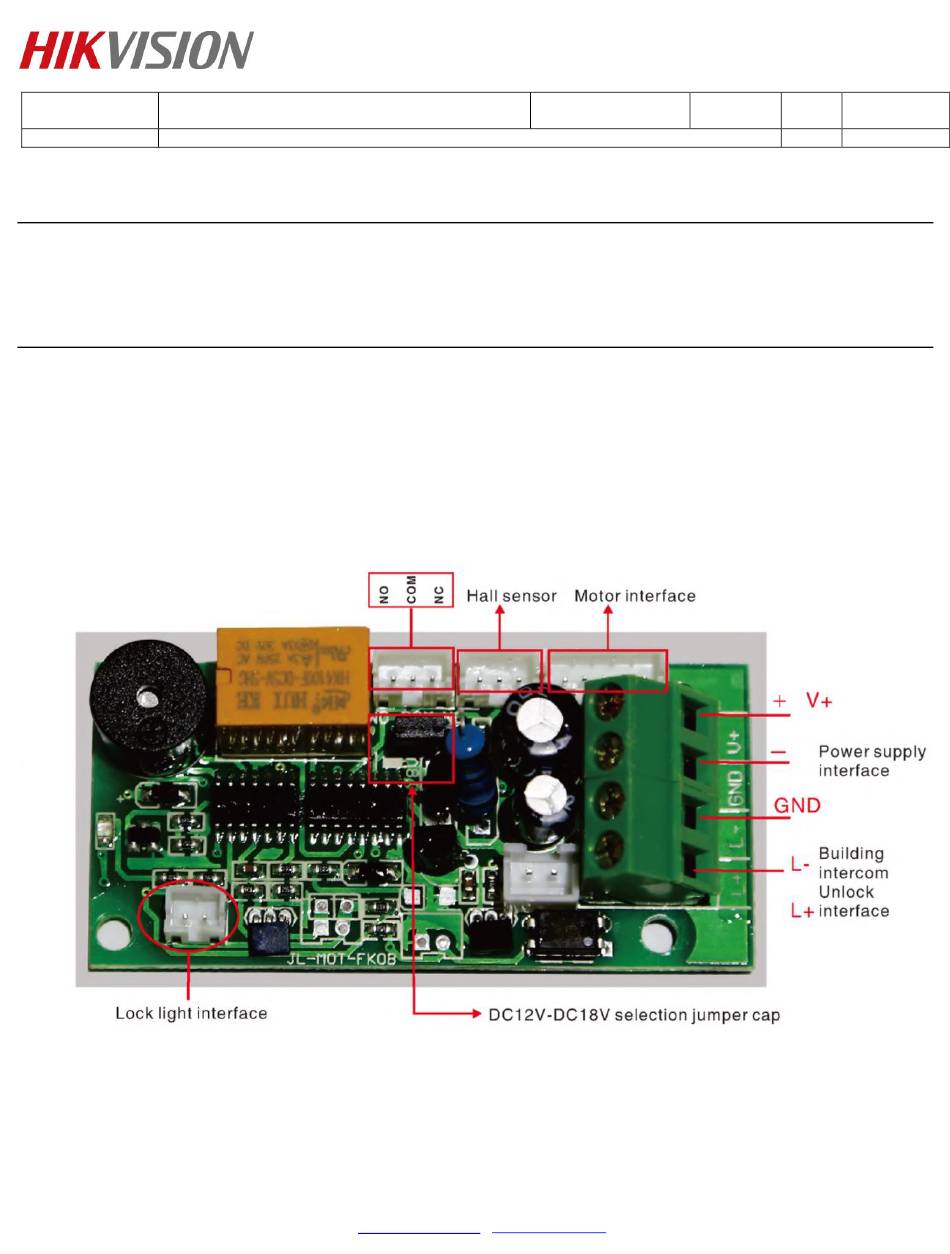

K4E100 Working Principle:
The lock tongue will be extended and locked when the V+ (12V) & GND power up. And
when the L + and L- terminals are powered immediately (＞5V), the lock tongue will retracted
to unlock.
No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788
© Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved.
E-Mail:
support@hikvision.com
Version:
•
www.hikvision.com
v1.0
Date:
03/31/2020
Page:
1 of 6
Advertisement
Table of Contents
Related Manuals for HIKVISION DS-K4E100
Summary of Contents for HIKVISION DS-K4E100
- Page 1 2. Access Control Terminal 3. Lock DS-K4E100 DS-K4E100 Connect to Access Controller or Access Control Terminal This document is simply used to guide users how to wire correctly and ensure access control terminal or K2600 controller can control lock K4E100.
- Page 2 Note: 1) The power output power is recommended to be above 12V / 1A. 2) The DS-K4E100 is normally open (The Lock will unlock when L + / L- terminals powered), so need connect to Access Control Terminal NO / COM output.
- Page 3 Note: 1) The power output power is recommended to be above 12V / 1A. 2) The DS-K4E100 is normally open (The Lock will unlock when L + / L- terminals powered), so K2600 Controller relay need configure to NO / COM output.
