3.3 Checking Indicator Status

This section details indicators for the NetBackup 5020.
Procedure

Figure 3-1
Table 3-3

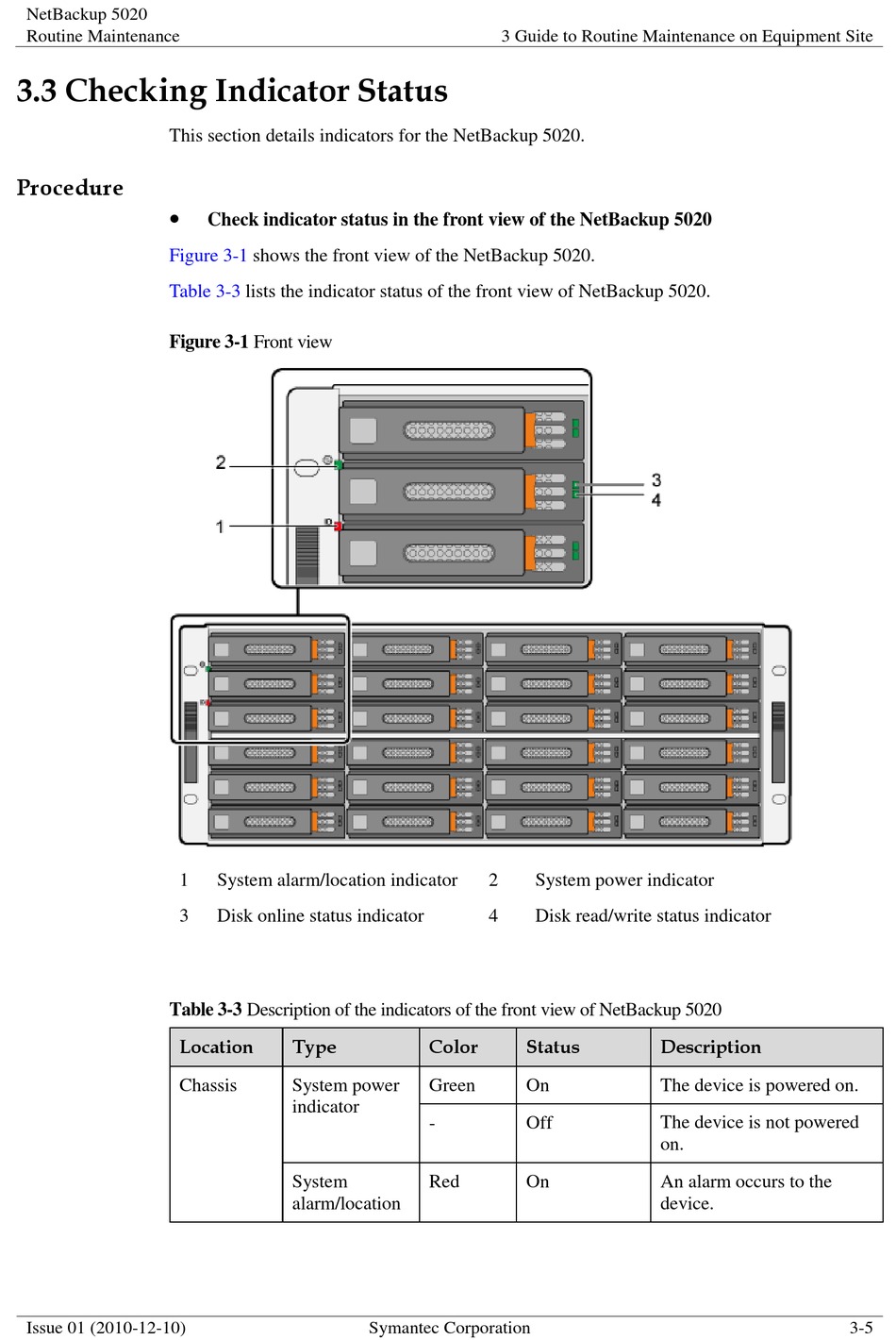

Figure 3-1 Front view

1
3

Table 3-3 Description of the indicators of the front view of NetBackup 5020

Location
Chassis
Issue 01 (2010-12-10)
Check indicator status in the front view of the NetBackup 5020
shows the front view of the NetBackup 5020.
lists the indicator status of the front view of NetBackup 5020.
System alarm/location indicator
Disk online status indicator
Type
System power
indicator
System
alarm/location
Symantec Corporation
3 Guide to Routine Maintenance on Equipment Site
2 System power indicator
4 Disk read/write status indicator
Color Status
Green On
- Off
Red On
Description
The device is powered on.
The device is not powered
on.
An alarm occurs to the
device.
