Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: FC-69 HDMI Audio Embedder/De-Embedder P/N: 2900-300451 Rev 1... -
Page 4: Table Of Contents
Connecting the FC-69 Operating the FC-69 Setting the DIP-switches LED Status Audio Extraction Output 5V Control Technical Specifications Figures Figure 1: FC-69 Front Panel Figure 2: FC-69 Rear Panel Figure 3: Connecting the FC-69 HDMI Audio Embedder/De-Embedder FC-69 – Contents... -
Page 5: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 6: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer FC-69 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 7: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 8: Overview
HDMI input or from the HDMI output Audio Return Channel to S/PDIF and analog audio outputs simultaneously. The FC-69 lets you connect your HDMI source to an HDMI display and enjoy audio on an external amplifier at the same time. -
Page 9: Defining The

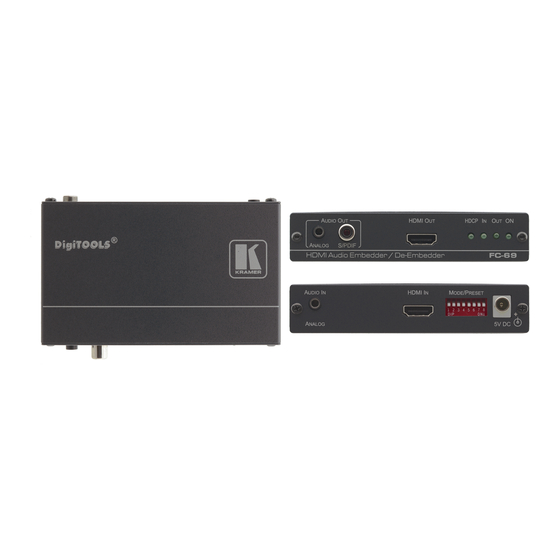

Defining the FC-69 Figure 1 defines the front panel of the FC-69 HDMI Audio De-Embedder. Figure 1: FC-69 Front Panel Feature Function ANALOG 3.5mm Connect to the analog audio acceptor mini jack AUDIO S/PDIF RCA Connect to the digital audio acceptor... -
Page 10: Connecting The
Connecting the FC-69 Always switch off the power to each device before connecting it to your FC-69. After connecting your FC-69, connect its power and then switch on the power to each device. Figure 3: Connecting the FC-69 HDMI Audio Embedder/De-Embedder... - Page 11 5. Connect the S/PDIF audio output to a digital audio acceptor, (for example, an AV receiver). 6. Connect the 5V DC power adapter to the power socket and connect the adapter to the mains electricity (not illustrated in Figure FC-69 - Connecting the FC-69...
-
Page 12: Operating The
If the source signal contains compressed audio, the analog output is muted. Note: If an ARC source signal contains compressed audio, the analog output transmits unclear audio. FC-69 - Operating the FC-69... -
Page 13: Output 5V Control
Output 5V Control If the 5V signal output timeout is enabled (via DIP-switch 7), the 5V output is turned off after either 5 or 30 seconds depending on DIP-switch 8, (see Section 6.1). FC-69 - Operating the FC-69... -
Page 14: Technical Specifications
REGULATORY COMPLIANCE: ENVIRONMENTAL Complies with appropriate requirements of RoHs and REGULATORY COMPLIANCE: WEEE INCLUDED ACCESSORIES: Power supply RK-3T 19” rack adapter OPTIONS: WARRANTY: 7 years parts and labor Specifications are subject to change without notice at http://www.kramerelectronics.com FC-69 - Technical Specifications... - Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
