Summary of Contents for Aiper Seagull 1500
- Page 1 ROBOTIC POOL CLEANER User Manual Seagull 1500...
- Page 3 Thank you for choosing Aiper robotic pool cleaner. You have joined millions of people to enjoy the convenience of robotic pool cleaning. This user manual helps you to keep your robot performing at its best. Please take a few moments to read through it.
-
Page 4: Table Of Contents
CONTENTS Important Precautions ----------------------------- 1. Introduction ------------------------------------- 2. Structure ---------------------------------------- 3. Specifications ----------------------------------- 4. Operations --------------------------------------- Important Notes --------------------------------- 4.1 Switch and Indicator Instructions ---------- 4.2 Running Routes ----------------------------- 4.3 General Cleaning Time/Modes -------------- 4.4 Installation of Floating Blocks -------------- 4.5 Charging ------------------------------------- 4.6 Filter Basket Cleaning... -
Page 5: Important Precautions
Important Precautions 1. Read the manual carefully, and use the cleaner according to the manual. We are not liable for any losses or injuries caused by improper use. 2. Only use the accessories recommended or sold by the manufacturer. 3. Do not allow children to ride on the cleaner or play with it. 4. -
Page 6: Introduction
21. Make sure the charging socket and cleaner charging pins are dried before charging. 1. Introduction The robotic pool cleaner Seagull 1500 is a new type of highly efficient and energy-saving swimming pool cleaning robot. It cleans the pool walls and floor automatically without replacing the pool water. It's totally environment-friendly. -
Page 7: Specifications
Top Cover Filter Basket PVC Roller Brush Chassis 3. Specifications 1. Model Seagull 1500 2. Rated Working Voltage 12.6V 3. Power 4. Run Time 90 Minutes 5. Charger Input 100~240V, 50/60Hz 6. Charger Output Max 12.6V/2A 7. Battery Capacity 8600mAh 8. -
Page 8: Operations
11. Filter Density 250μm 12. Moving Speed 36.1ft/min (11m/min) 13. Waterproof Grade IPX8 14. Pool Water Temperature 50°F~95°F (10℃~35℃) 15. Pool Water PH Value 7.0~7.4 16. Charging Environment 41°F~95°F (5℃~35℃) Temperature 17. Max Water Depth 8.2ft (2.5m) 14.17(L)x16.06(W)x9.45(H) 18. Product Size inches 360(L)x408(W)x240(H) mm 19. -
Page 9: Switch And Indicator Instructions
3. The climbing mode is "single front climbing", which means the front side with the indicators will climb and the opposite side does not climb. 4.1 Switch and Indicator Instructions Indicators Switch Turn on: Turn the switch to the upper side, the blue light is on Switch Turn off: Turn the switch to the down side, the... -
Page 10: Running Routes
(1) Blue indicator on: switch on Blue indicator turns to red for 2 seconds then off: switch off (2) Blue indicator flashes: working normally (3) Yellow indicator flashes: low battery, moving to the edge of the pool wall Indicators (4) Yellow indicator stays solid: successfully stops beside the pool wall (5) Red indicator during working: motor failure (6) Purple indicator stays solid: working out of... - Page 11 Step 3: Step 4: Climb wall Climbing Route Pool wall Climb up Climb Pool floor down Diagam Floor Cross Route: Detect/Calculate pool size Floor Route...
-
Page 12: General Cleaning Time/Modes
4.3 General Cleaning Time/Modes A. After putting the cleaning into your pool, it will start to detect/ calculate the pool size with Initial Cross Route & Floor Cross Route. Please note that the detection time depends on the pool size. B. -
Page 13: Charging
Install the filter basket and close the filter cover 4.5 Charging Please switch off the cleaner till no indicators flash and charge it out of the pool. Please charge it indoors. IMPORTANT NOTE: After each use, wipe and dry the charging pin with paper towel or cotton swab. -
Page 14: Filter Basket Cleaning
Charger Indicators Red light stays on: the battery is being charged. Green light stays on: 1. The charger is not plugged to the cleaner; 2. The charging is completed. 4.6 Filter Basket Cleaning a. Open the top cover (4-1) and find the filter basket (4-2) b. -
Page 15: Frequently Asked Questions (Faq)
c. Wash the filter basket (4-4) d. Install the filter basket back to the cleaner and close the top cover 5. Frequently Asked Questions (FAQ) Q: Why does my cleaner get stuck on the main drain? A: Each swimming pool has a different drain size. If yours is stuck at the drain, please contact the customer service to get the accessory kit. - Page 16 Q: Why does the switch get stuck? A: This is the internal failure of the machine. Please contact the customer service to replace the drive kit or the machine. Q: The charging pin is corroded because of electrolysis A: 1. Please contact the customer service to replace the driver kit for this condition.
-
Page 17: Packing List
2. Please hold the cleaner and fully submerge it into the water till no air bubbles come out before each use. 6. Packing List Item Description Name Model (pc) Cleaner Seagull 1500 Charger User Manual Cordless Robotic Retrieving Hook Pool Cleaner... -
Page 18: Warranty
7. Warranty This product has passed all quality control and safety tests, conducted by the technical department of the factory. Warranty Information 1. The warranty is covered for 24 months (only for battery and motor) from the date of its original purchase. 2. - Page 20 Aiper Customer Service: US Toll Free: 1-866-850-0666 Email: service@aiper.com Facebook: @AiperOfficial...
Need help?
Do you have a question about the Seagull 1500 and is the answer not in the manual?
Questions and answers

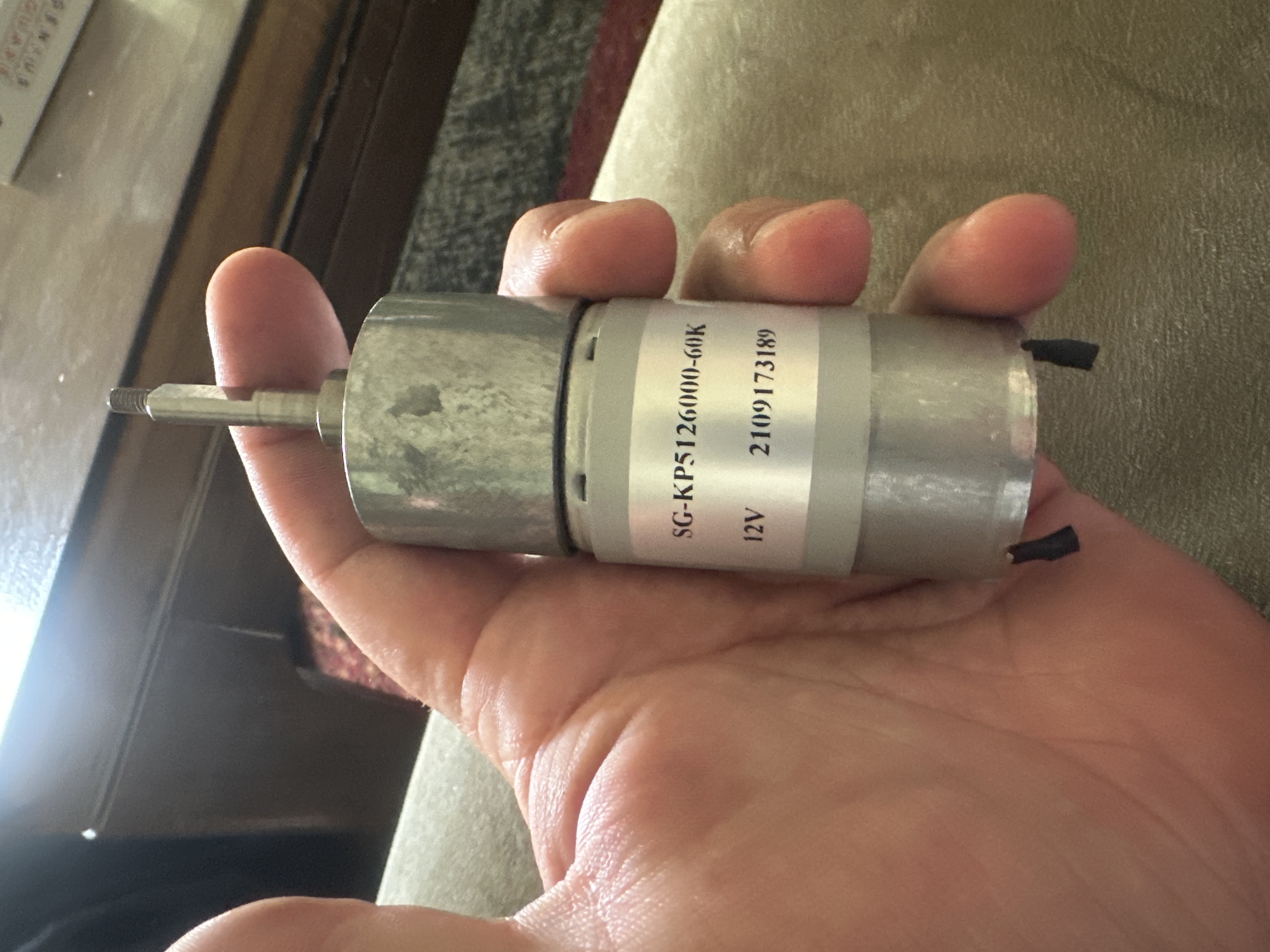

Drive motor replacement part sg-kp5126000-60k Where can I purchase
