- Page 1 ROBOTIC POOL CLEANER User Manual Aiper Seagull 800B...
- Page 3 Thank you for choosing Aiper. You’ve now joined a family of millions who have already put their trust in Aiper to take care of their pools and are enjoying the convenience of a pristinely clean pool. This user manual will help you maintain your Aiper pool cleaner and ensure it performs at its maximum efficiency for years to come.
-
Page 4: Table Of Contents
CONTENTS Important Safety Precautions ---------------------- 1. Introduction -------------------------------------- 2. Structure ----------------------------------------- 3. Specifications & Working Conditions ----------- 4. Use The Pool Cleaner ---------------------------- 5. Clean The Filter Tray ----------------------------- 6. Maintenance & Storage -------------------------- 7. Light Indicator ----------------------------------- 8. Packing List ------------------------------------- 9. -
Page 5: Important Safety Precautions
Important Safety Precautions Read the manual carefully, and use the cleaner according to the manual. We are not liable for any losses or injuries caused by improper use. Please strictly follow the instructions below: 1. Do not operate the cleaner when people or animals are in the pool. 2. -
Page 6: Introduction

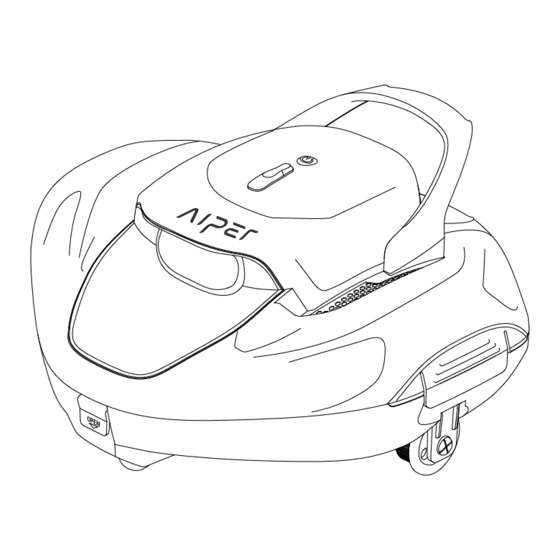

1. Introduction This environment-friendly robotic pool cleaner Seagull 800B is a new type of rechargeable automatic cleaner that filters the pool water with- out replacing the pool water. Please read this user manual carefully before using it. 2. Structure Handle... -
Page 7: Specifications & Working Conditions
3. Specifications & Working Conditions 1. Pool Size: 850sq.ft/80m², flat floor only 2. Charger Input: 100~240V, 50/60Hz 3. Charger Output: 12.6V/1.8A 4. Charging Time: 2.5 Hours 5. Run Time: up to 90 Minutes 6. IP Grade: IPX8 Waterproof 7. Max Water Depth: 10ft (3m) CAUTION: Use the cleaner in the water conditions below: Temperature: 50-95°F (10-35°C) -
Page 8: Use The Pool Cleaner
4. Use The Pool Cleaner 4.1 Important Precautions A. This model only applies to swimming pools with a flat floor with no slopes, up to 850sq.ft/80m². 850sq.ft / 80m² B. Insert the included 2 brushes tightly to the bottom slots of the cleaner and you will hear a click sound. - Page 9 D. Put into or lift out of the pool with the cleaner bottom towards the wall to avoid any possible scratches to the pool or the machine. 4.2 Charging Fully charge the cleaner before cleaning your pool. Power off the cleaner before charging. Clean and dry the charging port before charging.
- Page 10 Do not make Handle facing up the bottom up Blue light flashing slowly indicates the battery is charging. Blue light staying ON indicates that charging is completed. 4.3 Working a. Press and hold the power button till the blue light stays ON with a beep. Drop the cleaner into the water in 30 seconds.
- Page 11 b. When the battery is low, the red light flashes slowly and automatically stops alongside the pool wall. The red light will flash for 60 seconds and power OFF, to be retrieved back. c. Attach the included hook to your pool pole and hook up the handle of the cleaner to lift it out of the water.
-
Page 12: Clean The Filter Tray
5. Clean The Filter Tray a. Open the two small buckles in the front and back of the machine, then slightly open the two big buckles at the sides of the machine. Open b. Take off the top cover of the machine and take the filter tray out. c. -
Page 13: Maintenance & Storage
d. After all is cleaned, put the filter tray back and lock the top cover with buckles. Close 6. Maintenance & Storage a. Always wash the filter tray IMMEDIATELY after use. The filter tray will be blocked by dried debris and hard to remove if it’s not washed in time. Not cleaned for a long time Wash now... - Page 14 b. Replace a Brush: If a brush is worn out, please take the brush off with the steps below. 1) Take off the top cover of the machine and find the brush position; 2) Use your finger or a small tool to push the two small locking bars aside, as the arrows show below;...
- Page 15 c. Replace a Wheel: If a wheel breaks, please see the steps below for replacing it. 1) Take off the top cover of the machine and find the broken wheel position; 2) Use your finger or a small tool to push the wheel buckle till it bends a little and push down the top of the black wheel stem and keep the white wheel stem catch part, as the arrows show below;...
- Page 16 3) Insert the included new spare wheels to the white wheel stem catch, and align it with either of the two small holes of the wheel position; lock it up and you will hear a click sound. d. The cleaner should be stored in a cool and ventilated place, away from direct sunshine.
-
Page 17: Light Indicator
Impeller Blocked Red and green lights flash in turn Water Immersed Red and blue lights flash in turn Power Failure Blue light flashes fast 8. Packing List Name Model QTY(pc) Cleaner Seagull 800B Charger Retrieval Hook User Manual Brushes Spare Wheels... -
Page 18: Warranty
4. The order number or record must be presented for any claim or repair during the warranty period. Declaration of Conformity (CE) The EU declaration of conformity can be requested via the address below: AIPER INTELLIGENT SARL 24 Avenue du Prado 13006 Marseille 6e Arrondissement, France... - Page 19 www.aiper.com...
Need help?
Do you have a question about the Seagull 800B and is the answer not in the manual?
Questions and answers
I bought this Aiper model 800B last may but was diagnosed with cancer shortly after. So didnt get the pool up. I set up pool this weekend. Got the 800B out pf the box and charged it for close to 4 hours. The blue light stopped blinking and turned solid. The unit will not turn on. I hold the power button for over a minute on later attemps. As i have charged it 3 times now. It will not power on. It is almost a year old but was just taken out of the box today 04-2025. Is there any warranty or something i could be doing wrong. I have at beat gotten two seasons out of other rechargeables. Although they were used with a pole. I didnt expect this to last a long time but it should work out the box!! Please let me know what if any options you might have
If the Aiper Seagull 800B does not turn on after charging for several hours, check the following:
1. Ensure the charger is the original and authorized adapter.
2. Confirm the blue light was flashing during charging and turned solid blue when complete.
3. If the cleaner has been stored for a long time without charging, the battery may have discharged below safe levels and could be damaged.
4. Try charging again and look for the blue light indicators.
5. If the unit still does not turn on, it may indicate a power failure (blue light flashes fast) or a battery issue.
If none of these steps resolve the issue, warranty service may be required.
