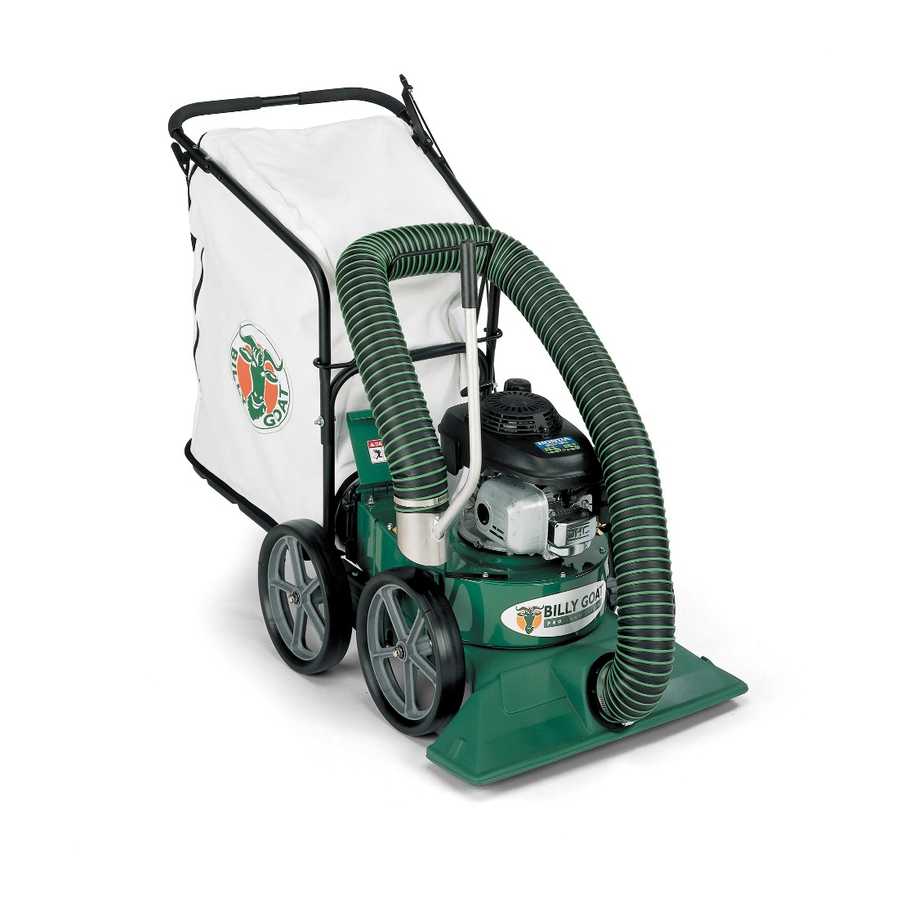

Page 1 BILLY GOAT KD VACUUM Accessories SHREDDER ON BOARD VACUUM HOSE KIT Shreds 4"(102mm) x leaves, 7' (2.13m) reducing total volume. vacuuming in hard to reach areas. P/N 890209 P/N 890041 Part No 890033 KD Owner’s Manual Owner's Manual KD612, KD512HC, KD512HCS...
Page 2: Table Of Contents
ABOUT THIS MANUAL THANK YOU for purchasing a BILLY GOAT manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your machine in top running order. Read this manual carefully before assembling, operating, or servicing your equipment.
Page 3: Serial Plate Data And Specifications
0.63 qt. (0.6 L) 98# (44.5 kg) 62” (1.57m) 26.75” (0.68 m) 42” (1.07m) 111 dBa 97 dBa 0.34 g (3.29m/s 0.27 g (2.86m/s KD512HC KD512HCS 5.5 (4.11 kW) 5.5 (4.11 kW) HONDA OHC HONDA OHC GCV160AN1A GCV160AN1A 1.16 qt. (1.1 L) 1.16 qt.
Page 4: General Safety
This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. This symbol indicates important information that will prevent damage to your BILLY GOAT KD Vacuum. This symbol indicates the engine oil level should be checked before operating this equipment.
Page 5 KD Owner’s Manual DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended. DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before refueling. DO NOT store gasoline near an open flame.
Page 6: Vibration Data
SOUND Sound tests were conducted in accordance with 2000/14/EEC, and were performed on 2-21-2002 under the conditions listed below. Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit for the sound power level for your model.
Page 7: Instruction Labels
INSTRUCTION LABELS The labels shown below were installed on your BILLY GOAT this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown.
Page 8: Packing Checklist & Assembly
PACKING CHECKLIST Your Billy Goat KD Vacuum is shipped from the factory in one carton, completely assembled except for the upper handle, debris bag, and bag quick disconnect. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box the Handle Assembly is attached by...
Page 9: Operation
OPERATION Like all mechanical tools, reasonable care must be used when operating machine. Inspect machine work area and machine before operating. Make sure that all operators of this equipment are trained in general machine use and safety. PUT OIL IN ENGINE BEFORE STARTING STARTING ENGINE : See engine manufacturer’s instructions for type and amount of oil and gasoline used.
Page 10: Debris Bag
KD Owner’s Manual OPERATION VACUUMING OPERATION VACUUM NOZZLE HEIGHT ADJUSTMENT : is raised and lowered by pulling slightly upward on handle and pulling height adjust knob on the handle (item 23) up at left rear of machine. FOR MAXIMUM PICKUP : Adjust nozzle close to debris, but without blocking airflow into the nozzle.
Page 11: Maintenance
MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Inspect for loose, worn or damaged parts. Clean Debris bag Check bag strap tightness Engine (See Engine Manual) Check for excessive vibration Lubricate wheels IMPELLER REMOVAL 1.Wait for engine to cool and disconnect spark plug.
Page 12: Warranty Claim Procedure
Warranty Claim. • The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration. • The Technical Service Department at BILLY GOAT will study the claim and may request parts to be returned for examination.
Page 13: Maintenance Record
KD Owner’s Manual MAINTENANCE RECORD Date Service Performed Part No 890033 Form No F062306A...
Page 14: Illustrated Parts & Parts Lists
KD Owner’s Manual PARTS DRAWING KD Part No 890033 Form No F062306A...
Page 15: Parts List
PARTS LIST IT E M D E S C R IP T IO N N O . P R O D E B R IS B A G (s e rv ic e ) * Denotes standard hardware item that N U T L O C K (1 /4 - 2 0 ) may be S C R E W C A P ( 1 /4 - 2 0 x 1 -1 /2 H E X )
Page 16 KD Owner’s Manual BRUSH CUTTER FORCE BLOWER AERATOR If you liked this product please feel free to view our full line of quality lawn care, renovation, and debris removal products at www.billygoat.com QL VACUUM MULTI VACUUM POWER RAKE Part No 890033 Form No F062306A...
