Electrical Connection - Dimplex FutuRad FutM2CE Manual

DO NOT operate the radiator with the mains lead
overhanging the outlet grille.
If the radiator is tipped over, unplug it and allow it to
cool before standing it back up.
DO NOT pull, carry or move the appliance using the
power cable.
The supply cord should be uncoiled before use.
This instruction leaflet belongs to the appliance and
must be kept in a safe place. If changing owners, the
leaflet must be surrendered to the new owner.

ELECTRICAL CONNECTION

WARNING: THIS APPLIANCE MUST BE EARTHED
If the socket outlets in your home are not of the 13 amp
BS1363 type they will not accept the plug connected

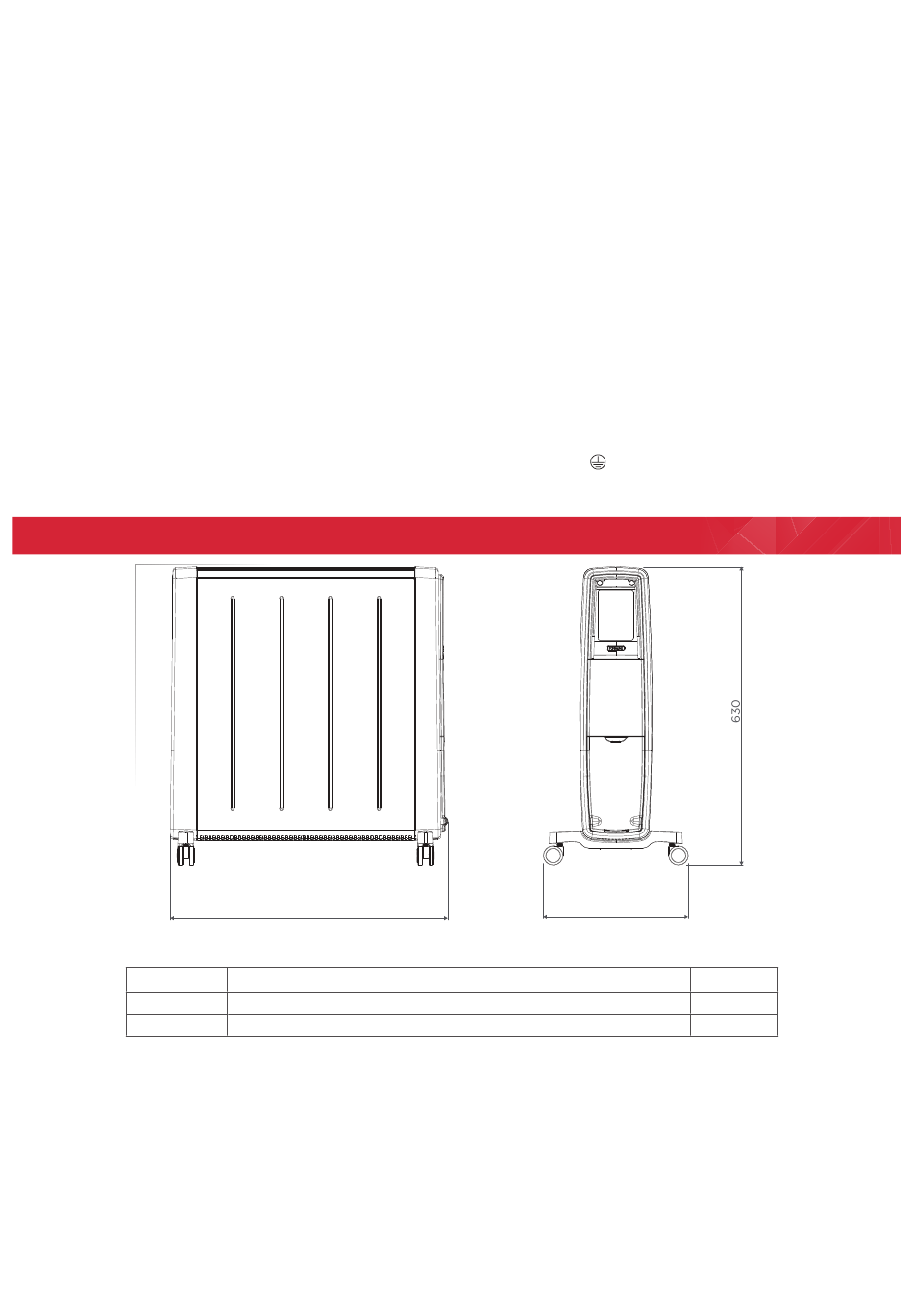

Dimensions & Range Info
Models
Model
FutM2CE
FutM3CE
General
The radiator is designed for operation on an AC electricity supply, and is suitable for use in domestic dwellings
and similar indoor locations.
The radiator is fitted with castors and handles for ease of movement. An electronic thermostatic control provides
precise room temperature control with Runback timer and Delayed start functionality. It is supplied with a cord
and plug and is ready for use once the castors have been correctly fitted.
590 (FutM2BT)
740 (FutM3BT)
Electronic thermostat control with 12 hour Runback or Delayed start timer
Electronic thermostat control with 12 hour Runback or Delayed start timer
to this heater, therefore cut off the plug. When cut
off this plug can constitute a shock hazard if inserted
into a socket outlet. It must therefore be disposed of
safely.
IMPORTANT: The wires in this mains lead are coloured
in accordance with the following code:
BLUE:
BROWN:
GREEN & YELLOW:
As the colours of the wires in the mains lead may not
correspond with the coloured markings in your plug,
proceed as follows:
Connect the BROWN wire to the terminal marked
'L' or coloured RED. Connect the BLUE wire to the
terminal marked 'N' or coloured BLACK. Note: 'L' or
'N' must not be connected to the EARTH terminal
marked 'E' or '
YELLOW. If in doubt, consult your electrician.
Description
NEUTRAL
LIVE
EARTH
' or coloured GREEN or GREEN AND
306
Power
2.0 kW
3.0 kW
