Fx Series 5
Quick Installation Guide

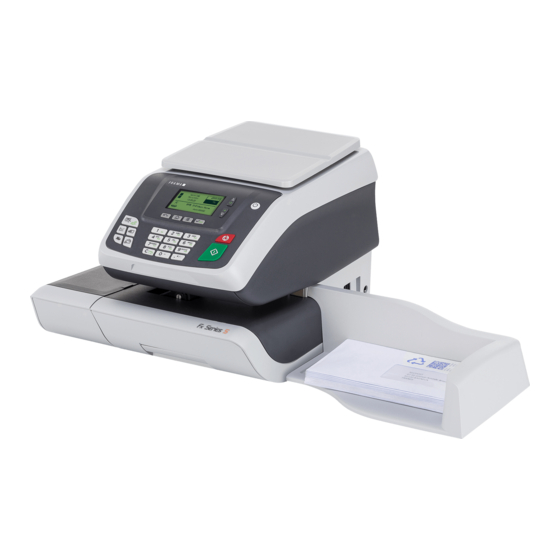

Machine components:
Feeding Table
1
Unpack all components from the box, remove packaging
and any transit tape.
5
Lift machine slightly on the left hand side and align the hooks to attach the feeding table
align the catch tray
(c)
to the right hand side of the machine.
9
Installation Process
1 LAN
OK
Mem
Select LAN and press
to test connection type.
Machine Base
Catch Tray
Back of the machine
2
Lift the cover of the machine to reveal the ink
cartridge
(h)
and meter
(i)
bays.
6
(b)
–
Lower weighing platform release panel at the back of
the machine. Place weighing platform
machine and slide forward to lock. Lift panel to secure
and clip cable into place.
10
Installation Process
Press the 'Next' to start the
Online service
declaration.
Next
Mem
Follow the steps on screen to complete the procedure
Weighing Platform
Weighing Platform
3
Open the cover. Place the meter
(i)
into the meter compartment and push
backwards until it fits securely into position. Close the cover.
7
Connect the weighing platform connector
(d)
on top of the
back of the machine. Then connect the LAN cable
to each side of the machine.
11
Your machine is now ready
to use. Please turn over
for your Quick Start Guide.
LAN Cable
Power Cable
Cable
4
Insert the ink cartridge
(h)
at an angle into the machine with the 'TOP' and 'LOCK'
stickers facing upwards. Push the ink cartridge
until you hear a 'click' - close the cover of the machine.
8
Turn on the machine using the switch behind the
(e)
into the COM PORT on the
(f)
and power cable
(g)
power cable
For more information or if you experience any
issues, please visit :
Ink Cartridge
Postage Meter
(PSD)
Remove tabs from
print heads before
inserting into unit!
(h)
towards the back of the machine
(g)
and follow the steps on screen.
www.frama.co.uk/Fx5
