1
Safety instructions and installation

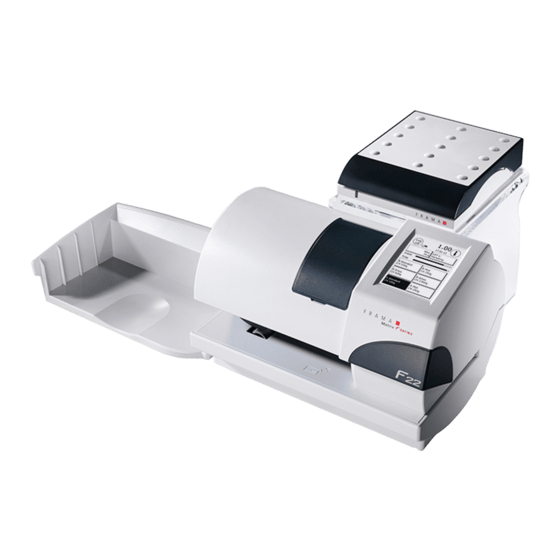

Thank you for deciding to purchase the innovative Frama Matrix F22 franking system.
The information below in this operating manual is intended to assist you in installing and operating
your Frama Matrix F22 franking system. It also shows how you can easily make settings yourself.
You will find support videos and further user guides in the link below:
www.frama.com/en/support
1.
Safety information and warnings
This franking system meets current safety requirements. Incorrect use can, however, lead to injury and
damage. With this in mind, please read this guide before you start using your Frama Matrix F22
franking system. This will help you to avoid injury and prevent damage to your franking system. Keep
this guide in a safe place.
1.1
Symbols used
This operating manual uses the following symbols:
Danger
This symbol indicates dangers and safety hazards which can cause injury when
using, operating and servicing the franking system.
Information
This symbol is intended to draw your attention to guidance and instructions you
should be aware of which can prevent the risk of damage to the franking system, the
items to be posted or the immediate surroundings when handling the franking
system.
Frama AG | EN | R02.00 | SAP 1022073 | INSTALLATIONSANLEITUNG MATRIX F22 EN
Advertisement
Table of Contents
Related Manuals for Frama Matrix F22
Summary of Contents for Frama Matrix F22
- Page 1 This franking system meets current safety requirements. Incorrect use can, however, lead to injury and damage. With this in mind, please read this guide before you start using your Frama Matrix F22 franking system. This will help you to avoid injury and prevent damage to your franking system. Keep this guide in a safe place.
- Page 2 Keep children away from the franking system. Have your franking system repaired by a service technician from your local Frama sales and service organisation only. Never open the franking system yourself under any circumstances. Repairs carried out incorrectly can represent a significant hazard to the user.
- Page 3 The following notes are intended to support you in achieving a sharp, professional print with your Frama Matrix franking system, so as not to jeopardise the delivery of your franked mail. As the user, you are responsible for the legibility of your franking.
- Page 4 Internet access correspondingly provided to exchange data with the FramaOnline2 data centre. Frama guarantees that no other data that are not relevant for the franking system from the user's network will be used, transmitted or read.
- Page 5 Installing Hardware Matrix F22 1. Unpack Position the catcher tray Remove franking Position the system, scales, catcher tray on consumables and the left of the cables from franking system. shipping box. 2. Connect mains lead Connect the franking system to the mains...
- Page 6 Installing Software Matrix F22 1. Confirm message 6. Select “FramaOnline2“ Touch the screen Menu Setup 2: to confirm the Select message. “FramaOnline2“. 2. Enter PIN 7. „Select “Activation PIN“ Enter your PIN Select “Activation (1234) and PIN” option and confirm with enter the PIN “OK”.
- Page 7 Installation of Ink-Jet Cassette Matrix F22 1. Installation of Ink-Jet Cassette Calibration of Ink-Jet Cassette Attention! Only The Ink-Jet Cassette confirm the will be calibrated. question on the screen after the insertion of the new Ink-Jet Cassette. 2. Open the flap Perfom a Test Print Open the flap.
- Page 8 Manufacturer: Frama AG Dorfstrasse 6 CH-3438 Lauperswil Description of the electrical equipment: Product name: Matrix F22 Type: Franking system The agreement with further valid guidelines/regulations following for the product is explained: EMC Directive (2014/30/CE) of 26. February 2014 Reference to the harmonised standards:...
