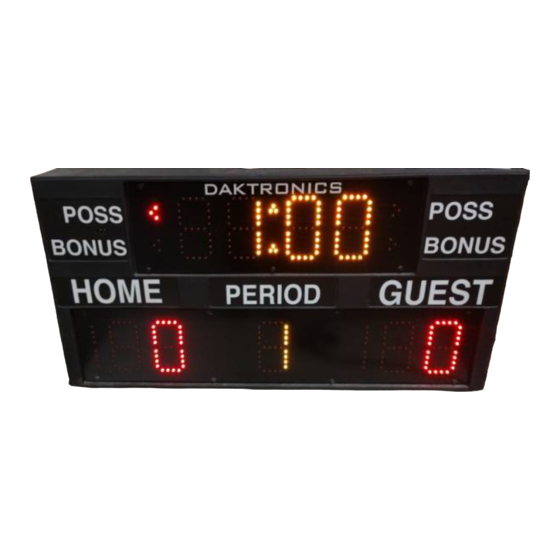

- Page 1 Portable LED Basketball Scoreboards Display Manual Rev 2 – 14 December 2010 ED-13315 Models BB-114 BB-314 201 Daktronics Drive PO Box 5128 Brookings, SD 57006-5128 Tel: 1-800-DAKTRONICS (1-800-325-8766) Fax: 605-697-4700 Web: www.daktronics.com Email: helpdesk@daktronics.com...
- Page 3 ED-13315 Product 1152 Rev 2 – 14 December 2010 Please fill in the information below to use for reference when calling Daktronics for assistance. Display Serial No. _______________________________________________________ Display Model No. _______________________________________________________ Date Installed ___________________________________________________________ DAKTRONICS, INC. Copyright 2002-2009 All rights reserved.
-
Page 5: Table Of Contents
Component Location & Access ..................... 9 Replacing Digits ........................9 Replacement Parts ......................... 10 Troubleshooting ........................10 Daktronics Exchange and Repair & Return Programs ............. 11 Exchange Program ......................11 Before Contacting Daktronics ................11 Repair & Return Program ..................... 12 Shipping Address .................... -
Page 7: Introduction
Reference Drawing: System Riser Diagram ................Drawing C-325405 Daktronics identifies manuals by the DD or ED number located on the cover page of each manual. For example, this manual would be referred to as ED-13315. Please list the model number, display serial number, and the date this display became operational in the blanks provided on the second page of this manual. -
Page 8: Daktronics Nomenclature
Daktronics Nomenclature The serial and model numbers of a Daktronics scoreboard can be found on the ID label on the display as shown in Figure 2. Figure 2: Scoreboard ID Label Most components within this display carry a white label that lists the part number of the unit. -
Page 9: Control Consoles
Control Consoles Daktronics portable LED basketball scoreboards are designed for use with All Sport 100, ® 5000, and 5500 series control consoles. All controllers use keyboard overlays (sport inserts) to control numerous sports and scoreboard models. Refer to the following manuals for... -
Page 11: Specifications
Models with a -14 suffix operate at 230 V AC. Dimensions: Model Weight Watts Amps Height, Width, Depth BB-114-13 H1'-6", W3'-0", D6" 20 lb 40 W 0.3 A (457 mm, 914 mm, 152 mm) (9 kg) BB-114-14 H1'-6", W3'-0", D6"... -
Page 13: Mechanical & Electrical Installation
The display will not power on unless connected to an All Sport controller. Drawing A-164222 depicts the signal connection jacks located on the rear of the display. The display is equipped with a ¼" phono jack to connect to the All Sport 5000 (BB-114) and All Sport 5500 (BB-314) control consoles (Figure 4). - Page 14 BB-114 scoreboard only (Figure 5). Plug the 4-pin end of the control cable into the XLR J32 jack at the rear of the BB-114. Plug the other end of the control cable into the 9-pin jack on the top of the controller.
-
Page 15: Maintenance & Troubleshooting
Reference Drawings: Schematic; MDP Portable Scoreboard ..........Drawing A-162968 Electrical & Signal Spec, BB-114/314-13 ..........Drawing A-164222 Drawing A-164222 shows front and back views of the display, the location of vital components, as well as the location of the hardware used to attach those components. -
Page 16: Replacement Parts
Replacement Parts Refer to the following table for replacement parts. Description Daktronics Part # Clock Section, Amber 0P-1388-0104 Score Digits, Red 0P-1150-0231 Period Digit, Amber 0P-1150-0232 Transformer T-1082 Horn DS-1210 Power Cord W-1111 All Sport 100 Control Cable 0A-1196-0095 Troubleshooting This section lists potential problems with the display and indicates possible causes. -
Page 17: Daktronics Exchange And Repair & Return Programs
In most circumstances, the replacement part will be invoiced at the time it is shipped. If the failed part or replacement part is not returned to Daktronics within 3 weeks of the ship date, Daktronics will assume that the customer is purchasing the replacement part and will send an invoice for the value of the new sale part. -
Page 18: Repair & Return Program
Repair & Return Program For items not subject to exchange, Daktronics offers a Repair & Return Program. To send a part for repair, follow these steps: Call or fax Daktronics Customer Service: Refer to the appropriate market number in the chart listed on the previous page. - Page 19 Appendix A: Reference Drawings Schematic; MDP Portable Scoreboard ..............Drawing A-162968 Mechanical Spec, BB-114/314-13 ................Drawing A-164217 Electrical & Signal Spec, BB-114/314-13..............Drawing A-164222 Reference Drawings...
- Page 21 T-1082 240V POWER WIRING 1/4" PHONE JACK DS-1210 REFER TO DWG-22129 FOR PINS OUT 4 PIN FEM XLR 1 2 3 4 CLOCK SECTION 0P-1150-0230 T-1082 12 12...
- Page 25 Appendix B: Daktronics Warranty and Limitation of Liability Daktronics Warranty and Limitation of Liability...
- Page 27 WARRANTY AND LIMITATION OF LIABILITY This Warranty and Limitation of Liability (the “Warranty”) sets forth the warranty provided by Daktronics with respect to the Equipment. By accepting delivery of the Equipment, Purchaser agrees to be bound by and accept these terms and conditions. Unless otherwise defined herein, all terms within the Warranty shall have the same meaning and definition as provided elsewhere in the Agreement.
- Page 28 In no event shall Daktronics be liable to Purchaser or any other party for loss, damage, or injury of any kind or nature arising out of or in connection with this Warranty in excess of the purchase price of the Equipment actually delivered to and paid for by the Purchaser. The Purchaser’s remedy in any dispute under this Warranty shall be ultimately limited to the Purchase Price of the Equipment to the extent the Purchase Price has been paid.
