Daktronics BB-2102 Display Manual

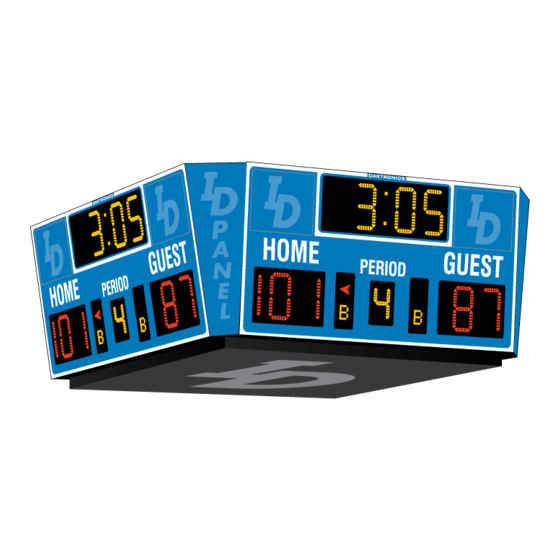

Four-sided basketball led scoreboards
Hide thumbs Also See for BB-2102:
Table of Contents

Advertisement

Quick Links

Download this manual
201 Daktronics Drive PO Box 5128 Brookings, SD 57006-5128
Tel: 1-800-DAKTRONICS (1-800-325-8766) Fax: 605-697-4746
www.daktronics.com
Daktronics Tuff Sport
Four-Sided Basketball
LED Scoreboards
Display Manual
ED-13248
BB-2102
BB-2104
BB-2106
BB-2108
BB-2124
Rev 6 – 7 February 2013
Models
BB-2126
BB-2146
BB-2147
BB-2154
BB-2156
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BB-2102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daktronics BB-2102

Summary of Contents for Daktronics BB-2102

  • Page 1 Daktronics Tuff Sport Four-Sided Basketball LED Scoreboards Display Manual Rev 6 – 7 February 2013 ED-13248 Models BB-2102 BB-2126 BB-2104 BB-2146 BB-2106 BB-2147 BB-2108 BB-2154 BB-2124 BB-2156 201 Daktronics Drive PO Box 5128 Brookings, SD 57006-5128 Tel: 1-800-DAKTRONICS (1-800-325-8766) Fax: 605-697-4746 www.daktronics.com...
  • Page 3 – graphic, electronic, or mechanical, including photocopying, taping, or information storage and retrieval systems – without written permission of the publisher. ® ® ® ® All Sport , PanaView , Tuff Sport , and UniView and are trademarks of Daktronics, Inc.

  • Page 5: Table Of Contents

    Section 1: Introduction ..........................1 Scoreboard Controllers ......................1 Scoreboard Label ........................2 Model Number ........................2 Resources ..........................2 Daktronics Nomenclature ...................... 3 Product Safety Approval......................3 Section 2: Specifications .......................... 5 Section 3: Mechanical Installation ......................7 Lifting the Scoreboard ......................7 Four-Sided Scoreboard Suspension Options ...............
  • Page 6 Static System ........................29 Hoist System ........................29 Replacement Parts List ......................30 Daktronics Exchange and Repair & Return Programs ............. 31 Exchange Program ......................31 Repair & Return Program ..................... 32 Daktronics Warranty and Limitation of Liability ............32 Section 6: Scoreboard Options ......................

  • Page 7: Introduction

    Project-specific information takes precedence over any other general information found in this manual. Scoreboard Controllers Daktronics four-sided Tuff Sport scoreboards are designed for use with the All Sport 5000 ® series control consoles. This console uses keyboard overlays (sport inserts) to control numerous sports and scoreboard models.

  • Page 8: Scoreboard Label

    Scoreboard Label Serial and model numbers of a Daktronics scoreboard can be found on the ID label on the display, similar to that shown in Figure 1. Figure 1: Display ID Label Please list the model number, display serial number, and the date this display became operational in the blanks provided on the second page of this manual.

  • Page 9: Daktronics Nomenclature

    Power or signal jack Power or signal plug for the opposite jack Following the Replacement Parts List is the Daktronics Exchange Policy and the Repair & Return Program. Refer to these instructions if replacing or repairing any display component. Product Safety Approval Daktronics Tuff Sport scoreboards are ETL-listed, tested to CSA standards and CE-labeled for indoor use.

  • Page 11: Specifications

    Amps Driver # Model Watts Height, Width, Depth Weight 120/230 VAC & Address BB-2102 4'-2" H, 10'-10" W, 10'-10" D 780 lb 800 W 6.7 / 3.5 A (1270 mm, 3302 mm, 3302 mm) 354 kg [840 lb [1200 W] [10 / 5.2 A]...
  • Page 12 Dimensions: Uncrated Amps Driver # Model Watts Height, Width, Depth Weight 120/230 VAC & Address *BB-2146 8'-8" H, 12'-10" W, 12'-10" D 2750 lb 7488 W 62.4 / 32.6 A (2642 mm, 3912 mm, 3912 mm) 1247 kg [2810 lb [7888 W] [65.7 / 34.3 A] 1274 kg]...

  • Page 13: Mechanical Installation

    Be sure that the installation complies with local building codes. Note: Daktronics does not assume any liability for any installation derived from the information provided in this manual or installations designed and installed by others.

  • Page 14: Four-Sided Scoreboard Suspension Options

    There are two primary methods of installing a center-hung scoreboard: creating a static-hung system or using a hoist. Each method has its own benefits and drawbacks. Refer to the suspension publication, DD1627665, in Appendix F, and call Daktronics for help in making the best choice for your installation.

  • Page 15: Electric Hoist System

     Daktronics will inspect hoists installed by Daktronics.  Daktronics will certify the scoreboard weight but will require a liability waiver signed by the customer before the scoreboard is shipped.  Once the hoist is installed according to the specifications of the hoist manufacturer and the building engineer, refer to Section ‎...

  • Page 16: Assembly Overview

    Assembly Overview The assembly kit includes the following:  Floor frame – 2 halves, 2 side splice plates, and 4 top & bottom splice plates  Corner shrouds @ 4  Shroud brackets @ 8  Top corner brackets @ 4 ...

  • Page 17: Optional Lower Ad Panel Attachment

    Optional Lower Ad Panel Attachment Reference Drawing: Bottom 4-Side Ad Panel Mounting ............Drawing A-107664 This step is required only if the scoreboard has ad panels or auxiliary scoreboard displays to be attached to the bottom. Refer to Drawing A-107664 in Appendix C. Support brackets are attached to the bottom of the frame, and the ad panel sections are to be attached to these brackets.

  • Page 18: Optional Top Ad Panel Or Message Center Attachment

    Optional Top Ad Panel or Message Center Attachment Reference Drawing: Top 4-Side Ad Panel Mounting ............... Drawing A-107665 Note: Make sure all power and signal wires are connected on top of the scoreboard before mounting an ad panel/message center – it will be very difficult to make these connections once upper display tiers have been added.

  • Page 19: Attaching Corner Shrouds

    Drawing A-181903 and Drawing A-181935 in Appendix E show recommended component specifications of cable slings (these are not typically provided by Daktronics). Note: Refer to Drawing A-268195 for BB-2146 and BB-2147 models.
  • Page 20 The hoist installer must set upper and lower primary limits and all safety limits. Daktronics recommends maintaining a minimum of 2' (610 mm) between the scoreboard and the nearest obstruction. WARNING! Never raise or lower the scoreboard with personnel or equipment underneath!

  • Page 21: Electrical Installation

    It is the responsibility of the electrical contractor to ensure that all electrical work meets or exceeds local and national codes. Daktronics engineering staff must approve all changes or the warranty will be void. Installation Overview Electrical installation for four-sided scoreboards involves routing power and control signal wiring through separate conduit or wire ways to the scoreboard location, as well as routing power and signal wiring from section to section.

  • Page 22: Power/Signal Connections Between Sections

    The diagram shown in Figure 5 illustrates a typical wireless setup between the first scoreboard section and the control system. Refer to Section ‎ 6 .2 for more information about the wireless radio option. Figure 5: Wireless Installation Power/Signal Connections Between Sections Reference Drawing: Ad Panel/Message Center Hookup Overview, 4-Side ......
  • Page 23  Scoreboard power and signal connectors are located on top of the scoreboard cabinet. Input cables should be routed to the left, and output cables should be routed to the right (as viewed from the front). The scoreboard section that will receive main power/signal is designated “Face A”;...

  • Page 24: Main Power Connection

    Connect the scoreboard to earth ground. Proper grounding assures reliable equipment operation and protects the equipment against damaging electrical disturbances and lightning. Daktronics recommends a resistance-to-ground of 10 ohms or less. The electrical contractor performing the electrical installation can verify ground resistance. Daktronics Sales and Service personnel can also provide this service.

  • Page 25: Radio Settings

    SS Series 20mm Indoor Scoreboard Message Centers Installation & Operation Manual (DD1564453). At a minimum, use a paired, 22 AWG shielded cable (Daktronics part # W-1077) and connect the cable to a dual " J-box at the control console end.

  • Page 27: Maintenance & Troubleshooting

    If a problem occurs that is not listed or that cannot be resolved using the solutions in the following table, contact Daktronics using the information provided in Section ‎ 5 .9. Problem...
  • Page 28 Problem Possible Cause Solution/Items to Check Move the console 20-30 feet from the scoreboard and test again. Verify that both the console and scoreboard antennae are securely tightened and in a vertical position. Replace the radio receiver. Check that the scoreboard is receiving 120 (or 230) VAC power.

  • Page 29: Component Location & Access

    Problem Possible Cause Solution/Items to Check Bad digit or driver (see solution on previous page) Incorrect sport code (see solution on previous page) Incorrect driver address (see solution on previous page) Another console’s radio signal could Wrong console controlling Scoreboard works, but some scoreboard be transmitting to the scoreboard.

  • Page 30: Replacing Digits

    Replacing Digits LEDs are embedded in a circuit board that is mounted to the back of the digit panel. Do not attempt to remove individual LEDs. In the case of a malfunctioning LED or digit segment, replace the entire digit circuit board. The process of replacing digits varies by whether it is a PanaView digit or UniView digit (Figure 10).

  • Page 31: Uniview

    UniView To replace a UniView digit circuit board (Figure 12): Open the digit panel as described in Section ‎ 5 .2. Disconnect the power/signal connector from the back of the digit by squeezing together the locking tabs and pulling the connector free. Use a "...

  • Page 32: Led Drivers

    LED Drivers In each scoreboard, one or more LED drivers perform the task of switching LEDs on and off. LED drivers are located inside of a driver enclosure. Refer to Figure 13 to view the location and components of a Tuff Sport driver enclosure. Figure 13: Driver Enclosure Location &...
  • Page 33 Connector # Function 1-16 Output to digits and indicators Control signal Control for horn Address Refer to Drawing A-126174 in Appendix E for detailed driver pin out/switch specifications. When troubleshooting driver problems, three LEDs labeled DS1, DS2, and DS3, provide the following diagnostic information: Color Function...

  • Page 34: Replacing A Driver

    Replacing a Driver If the driver status indicators do not appear to be working correctly, it may be necessary to replace the driver. Open the digit panel or scoreboard face panel as described in Section ‎ 5 .2. Disconnect all connectors from the driver by squeezing together the locking tabs and pulling the connectors free.

  • Page 35: Segmentation And Digit Designation

    Located in Appendix D, schematic drawings show detailed power and signal wiring diagrams of internal display components such as drivers, horn interface cards, and transformers as well as optional components like TNMCs and radio receivers. Model Drawing Title Drawing Number BB-2102 BB-2146 BB-2104 BB-2147 BB-2106 BB-2154...

  • Page 36: Replacement Parts List

    Replacement Parts List Refer to the following table for Daktronics scoreboard replacement parts. Description Daktronics Part # Horn, 120V with capacitor 0A-1152-0332 Main clock, start/stop switch 0A-1166-0003 Shot clock, start/stop switch 0A-1196-0031 LED driver, 16-column 0P-1150-0126 16 V AC LED VHI 0P-1150-0233 PanaView Digit, 7”...

  • Page 37: Daktronics Exchange And Repair & Return Programs

    The Daktronics Exchange Program is a quick, economical service for replacing key components in need of repair. If a component fails, Daktronics sends a replacement part to the customer who, in turn, returns the failed component to Daktronics. This not only saves money but also decreases equipment downtime.

  • Page 38: Repair & Return Program

    Repair & Return Program For items not subject to exchange, Daktronics offers a Repair & Return Program. To send a part for repair, follow these steps: Call or fax Daktronics Customer Service: Refer to the appropriate market number in the chart listed on the previous page.

  • Page 39: Scoreboard Options

    Visual Horn Indicator (VHI) In addition to the horn, Daktronics offers both incandescent and LED visual horn indicators that light up when the buzzer sounds. To install the VHI, users must tap into the existing horn wiring to provide power and signal. For more information about installing the VHI options, refer to the Visual Horn Indicator Installation Instructions (ED-13397) or the BB-2133 LED Indicator Installation Instructions (ED-13806).

  • Page 40: Changeable Captions

    Changeable Captions Team name and statistics caption kits contain hardware for one caption only and consist of an upper caption retainer, a lower caption retainer, a changeable caption panel and screws. The standard HOME and GUEST captions are applied directly to the face of the scoreboard. Team name captions are on changeable panels that fit into retainers mounted above and below the standard captions.

  • Page 41: Tnmc Troubleshooting & Maintenance

    Section 7: TNMC Troubleshooting & Maintenance IMPORTANT NOTES: 1. Always disconnect scoreboard power before doing any repair/maintenance work on the message centers. 2. Permit only qualified service personnel to access internal display electronics. 3. Disconnect power when not using the scoreboard. Display Overview Team Name Message Centers (TNMCs) are programmable LED displays that allow users to show custom Home and Guest names or messages of ~15 characters on the scoreboard in...

  • Page 42: Initialization Information At Startup

    If a problem occurs that is not listed or that cannot be resolved using the solutions in the following table, contact Daktronics using the information provided in Section ‎ 5 .9. Symptom/Condition...

  • Page 43: Power & Signal Summary

    Power & Signal Summary Reference Drawings: Schematic: 3/4" and 1" DC TNMC’s ............Drawing B-146975 Refer to Drawing B-146975 in Appendix D for detailed schematics about display power and signal routing. Display signal routing can be summarized as follows: Data from the All Sport controller travels via signal cable (or radio) into the scoreboard.

  • Page 44: Diagnostic Leds

    Figure 17 illustrates some of the primary jacks and indicators of a display driver. Figure 17: Display Driver Diagnostic LEDs The following table explains the functions of the primary diagnostic LEDs on the drivers: LED Name Color Illumination Summary DS1 PWR Green Steady on or blinking when the driver has power Steady on or blinking when the driver is receiving...

  • Page 45: Modules

    Modules Display modules consist of LEDs embedded in a circuit board. One or more circuit boards are mounted to the back of a display face panel. Do not attempt to remove individual LEDs. In the case of malfunctioning LEDs, replace the entire module circuit board. Replacing Modules Access the internal components as described in Section ‎...

  • Page 46: Power Supplies

    Indoor TNMC Card 0P-1150-0206 Module; 8x16, Amber 0P-1186-0112 Power Supply; 5V @ 10A, 85-264VAC A-1568 Cable; 18 pos, Ribbon, 6" W-1320 See Section ‎ 5 .9 for information on Daktronics Exchange and Repair and Return program. TNMC Maintenance & Troubleshooting...

  • Page 47: Appendix A: Mechanical Specification Drawings

    Appendix A: Mechanical Specification Drawings Drawing Title Drawing Number Mechanical Spec, BB-2102 ...................... B-148777 Mechanical Spec, BB-2104 ...................... B-148922 Mechanical Spec, BB-2106 ...................... B-148923 Mechanical Spec, BB-2108 ...................... B-148924 Mechanical Spec, BB-2124 ...................... B-165593 Mechanical Spec, BB-2126 ...................... B-167572 Mechanical Spec- BB-2147 ...................... B-267980 Mechanical Spec- BB-2146 ......................

  • Page 55: Appendix E: Additional Reference Drawings

    PERIOD PERIOD WIRE ROPE SLING SET BY OTHERS REFERENCE DAKTRONICS DRAWING 1237-E10A- RECOMMENDED COMPONENT SIZES. MIN RECOMMENDED HEIGHT FROM EVENT LEVEL...
  • Page 56 HOME GUEST PERIOD DAKTRONICS...

  • Page 57: Appendix F: Hoist Suspension Systems

    HOME GUEST T.O.L. T.O.L.
  • Page 58 HOME GUEST PERIOD T.O.L. T.O.L.

  • Page 59: Appendix G: Daktronics Warranty And Limitation Of Liability

    Drawing Title Drawing Number Electrical and Signal Spec- BB-2107 and BB-2108 ..............A-158571 Electrical and Signal Spec- BB-2101 and BB-2102 ..............A-158845 Electrical and Signal Spec- BB-2103 and BB-2104 ..............A-158848 Electrical and Signal Spec- BB-2105 and BB-2106 ..............A-158849 Electrical and Signal Spec- BB-2123 and BB-2124 ..............
  • Page 61 HOME GUEST PERIOD FOULS T.O.L. PLAYER FOUL T.O.L. FOULS SCORE MATCH SCORE daktronics HOME GUEST PERIOD FOULS T.O.L. PLAYER FOUL T.O.L. FOULS SCORE MATCH SCORE...
  • Page 62 HOME GUEST PERIOD HOME GUEST PERIOD...
  • Page 63 HOME GUEST PERIOD FOULS PLAYER FOUL FOULS T.O.L. T.O.L. SCORE MATCH SCORE HOME GUEST PERIOD PERIOD FOULS PLAYER FOUL FOULS T.O.L. T.O.L. SCORE MATCH SCORE...
  • Page 64 HOME GUEST PERIOD HOME GUEST PERIOD...
  • Page 65 HOME GUEST PERIOD FOULS PLYR FOUL FOULS daktronics HOME GUEST PERIOD PLYR FOUL FOULS Patent Pending...
  • Page 66 HOME GUEST PERIOD FOULS T.O.L. PLAYER FOUL T.O.L. FOULS SCORE MATCH SCORE daktronics HOME GUEST PERIOD FOULS T.O.L. PLAYER FOUL T.O.L. FOULS SCORE MATCH SCORE...
  • Page 67 THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS DAKTRONICS, INC. DRAWING ARE CONFIDENTIAL AND PROPRIETARY. DO NOT REPRODUCE BY ANY MEANS WITHOUT THE EXPRESSED WRITTEN CONSENT OF DAKTRONICS, INC. COPYRIGHT 2012 DAKTRONICS, INC. TUFF SPORT SCOREBOARDS ELECTRICAL AND SIGNAL SPEC; BB-2153 AND BB-2154 JVANAAR...
  • Page 68 THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS DAKTRONICS, INC. DRAWING ARE CONFIDENTIAL AND PROPRIETARY. DO NOT REPRODUCE BY ANY MEANS WITHOUT THE EXPRESSED WRITTEN CONSENT OF DAKTRONICS, INC. COPYRIGHT 2013 DAKTRONICS, INC. TUFF SPORT SCOREBOARDS ELECTRICAL AND SIGNAL SPEC, BB-2155 AND BB-2156 KDRAGT...
  • Page 69 Appendix C: Scoreboard Options Drawing Title Drawing Number Bottom 4-Side Ad Panel Mounting .................... A-107664 Top 4-Side Ad Panel Mounting ....................A-107665 Installation, 6" Amber 8x48 TNMC ................... A-148701 12V DC Horn Option Installation ....................A-148960 T.O.L. Option Installation ......................A-149030 Changeable Team Name Caption Installation ................
  • Page 72 UPDATED ANGLE BRACKETS AND CHANGED DATE: TAPPING SCREW FROM HC-1073 TO HC-1496 07 AUG 02 LABLED ANGLE BRACKETS, AND MODIFIED DATE: MOUNTING INSTRUCTIONS 12 DEC 01 FIXED CORNER SHROUDING ATTACHMENT. DATE: 10 NOV 00 ADDED FLAT WASHERS AND REINFORCEMENT PLATES DATE: TO CORNER MOUNTING BRACKET ATTACHMENT 29 JUN 12...
  • Page 79 Appendix D: Schematic Drawings Drawing Title Drawing Number Schematic; Dual 1/” Phone J-box w/ Shunt Jack ..............A-125316 Schematic: 3/4" and 1" DC TNMCs ..................B-146975 Schematic- 16V 1 Driver- 120 or 230VAC ................A-158348 Schematic, 16V 2 Driver, 120 or 230 VAC ................B-158859 Schematic Drawings...
  • Page 85 Appendix E: Additional Reference Drawings Drawing Title Drawing Number Signal Connection, Installation ....................A-28124 Segmentation, 7 Segment Bar Digit ................... A-38532 Address Table, 1 Through 128 ....................A-115078 Protocol Table, 1 Through 15 ....................A-115081 A/S 5000 Capable TNMC Shift Card; Specifications ..............A-123794 16 Column LED Driver II Specifications ..................
  • Page 103 Appendix F: Hoist Suspension Systems Document Title Document Number Scoreboard Hoist Suspension System Specifications .............. SL-03610 Suspension Systems for Centerhung Scoreboards ............... DD1627665 Hoist Suspension Systems...
  • Page 105 • Low Voltage Push Button Control Station (Standard) • The manual control center for the Daktronics S Series self-contained rigging system shall be wall mountable and contain two momentary control push buttons for direction and a hoist enable selector switch for each hoist in the system.
  • Page 106 Provide all labor, materials, and equipment to perform the following • Accept, lift, and remove hoist from freight carrier. Coordinate all shipments with Daktronics. You are responsible for coordinating delivery, offloading, and staging and on site transportation of all equipment and materials provided by your company.
  • Page 107 SUSPENSION SYSTEMS FOR CENTERHUNG SCOREBOARDS Daktronics centerhung scoreboards can be suspended in two different ways. A static suspension system holds the scoreboard securely in place using cables attached to the structural framework of a building. This technique works well with smaller scoreboards and in applications where the scoreboard has no need for lowering and raising.
  • Page 109 Appendix G: Daktronics Warranty and Limitation of Liability Daktronics Warranty and Limitation of Liability...
  • Page 111 WARRANTY AND LIMITATION OF LIABILITY This Warranty and Limitation of Liability (the “Warranty”) sets forth the warranty provided by Daktronics with respect to the Equipment. By accepting delivery of the Equipment, Purchaser agrees to be bound by and accept these terms and conditions. All defined terms within the Warranty shall have the same meaning and definition as provided elsewhere in the Agreement.
  • Page 112 In no event shall Daktronics be liable to Purchaser or any other party for loss, damage, or injury of any kind or nature arising out of or in connection with this Warranty in excess of the purchase price of the Equipment actually delivered to and paid for by the Purchaser.
