Daktronics FB-2004-11 Installation, Maintenance, And Specifications Manual

Multi-section outdoor led scoreboards

Table of Contents

Quick Links

Download this manual

Multi-Section Outdoor

LED Scoreboards

Installation, Maintenance,

and Specifications Manual

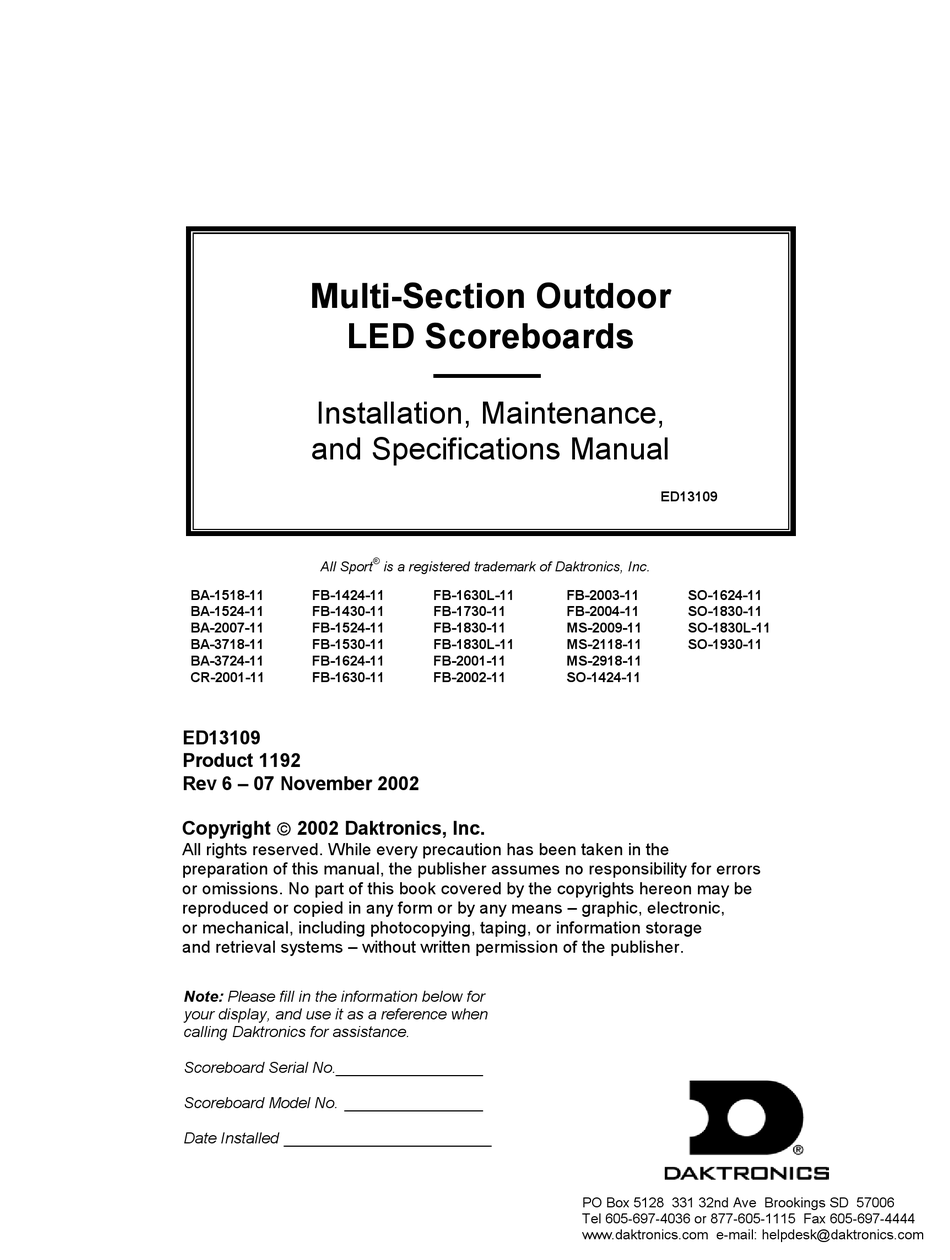

All Sport

BA-1518-11

FB-1424-11

BA-1524-11

FB-1430-11

BA-2007-11

FB-1524-11

BA-3718-11

FB-1530-11

BA-3724-11

FB-1624-11

CR-2001-11

FB-1630-11

ED13109

Product 1192

Rev 6 – 07 November 2002

preparation of this manual, the publisher assumes no responsibility for errors

or omissions. No part of this book covered by the copyrights hereon may be

reproduced or copied in any form or by any means – graphic, electronic,

or mechanical, including photocopying, taping, or information storage

and retrieval systems – without written permission of the publisher.

Note: Please fill in the information below for

your display, and use it as a reference when

calling Daktronics for assistance.

Scoreboard Serial No._________________

Scoreboard Model No. ________________

Date Installed ________________________

is a registered trademark of Daktronics, Inc.

FB-1630L-11

FB-1730-11

FB-1830-11

FB-1830L-11

FB-2001-11

FB-2002-11

ED13109

FB-2003-11

SO-1624-11

FB-2004-11

SO-1830-11

MS-2009-11

SO-1830L-11

MS-2118-11

SO-1930-11

MS-2918-11

SO-1424-11

PO Box 5128 331 32nd Ave Brookings SD 57006

Tel 605-697-4036 or 877-605-1115 Fax 605-697-4444

www.daktronics.com e-mail: helpdesk@daktronics.com

Table of Contents

Troubleshooting

Need help?

Do you have a question about the FB-2004-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daktronics FB-2004-11

Page 1 Multi-Section Outdoor LED Scoreboards Installation, Maintenance, and Specifications Manual ED13109 ® All Sport is a registered trademark of Daktronics, Inc. BA-1518-11 FB-1424-11 FB-1630L-11 FB-2003-11 SO-1624-11 BA-1524-11 FB-1430-11 FB-1730-11 FB-2004-11 SO-1830-11 BA-2007-11 FB-1524-11 FB-1830-11 MS-2009-11 SO-1830L-11 BA-3718-11 FB-1530-11 FB-1830L-11 MS-2118-11 SO-1930-11...
Page 3: Table Of Contents
Table of Contents Section 1: Introduction....................1-1 How To Use This Manual ..................1-1 Daktronics Nomenclature...................1-2 Manual Overview.......................1-3 Product Overview.......................1-3 Model Names118 .......................1-4 Product Safety Approval ....................1-4 Section 2: Model Identification .................. 2-1 Section 3: Specifications.................... 3-1 Multi-Section Scoreboards..................3-2 Section 4: Component Locations ................
Page 4 Segmentation and Digit Designation ................. 8-5 Troubleshooting......................8-5 Lightning Protection ....................8-6 Replacement Parts ..................... 8-6 Daktronics Exchange and Repair and Return Programs..........8-7 Section 9: Team Name Message Center Maintenance ..........9-1 Team Name Message Center System Overview............9-1 Maintenance and Troubleshooting Overview............9-1 Signal Summary......................
Page 5: Introduction
Reference drawings in this manual are grouped and inserted in alphanumeric order in the Appendix. Listed below are a number of drawing types commonly used by Daktronics, along with the information each is likely to provide. ¡ System Riser Diagrams: overall system layout from control room to display, power, and phase requirements.
Page 6: Daktronics Nomenclature
For example, this manual would be referred to as ED13109. The serial and model numbers of a Daktronics scoreboard can be found on the ID label on the display. The label will be similar to the one shown in Figure 2. When calling Daktronics Customer Service,...
Page 7: Manual Overview
Contains all drawings referenced in this manual and additional miscellaneous documents. Product Overview Daktronics outdoor LED scoreboards are part of a family of scoring and timing displays designed to offer easy installation, readability, and reliability. Microprocessor control assures consistent operation and accuracy.
Page 8: Model Names118
AC power requirement. Models that operate with 230 V power are also available. Product Safety Approval Daktronics outdoor scoreboards are ETL listed, tested to CSA standards and CE labeled for outdoor use. Contact Daktronics with any questions regarding the testing procedures.
Page 9: Model Identification
Section 2: Model Identification Use the following drawings to determine your scoreboard's model number. The drawings are listed here in alphabetical order by scoreboard model line; they are located in Appendix A: Reference Drawings, where they are inserted in alphanumeric order by drawing number. Individual scoreboard drawings may also be found in the Appendix.
Page 11: Specifications
Section 3: Specifications The table on the following pages shows all of the mechanical specifications, circuit specifications, and maximum power requirements for each model in this manual. Models are listed in alphanumeric order. Specifications...
Page 12: Multi-Section Scoreboards
Multi-Section Scoreboards Note: Signal wires must be a minimum of 22 AWG with shield. Daktronics recommends using W-1234 Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single...
Page 13 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ BA-1524-11 2 Total H9’-0”, W16’-0”, D6” 480 lb 300 W 120 V AC 3.0 A Indicators (2743 mm, 4877...
Page 14 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ BA-2007-11 4 Total H9’-4”, W36’-0”, D6” 840 lb 920 W 120/240 V AC 7.7 A Innings, Runs, w/TNMC...
Page 15 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ BA-3718-11 4 Total H7’-0”, W28’-0”, D6” 720 lb 950 W 120/240 V AC 7.9 A Innings, Runs, w/TNMC...
Page 16 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ BA-3724-11 4 Total H9’-4”, W36’-0”, D6” 960 lb 995 W 120/240 V AC 8.0 A Innings, Runs, w/TNMC...
Page 17 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ FB-1424-11 2 Total H8’-0”, W18’-0”, D6” 400 lb 540 W 120/240 V AC 4.5 A Indicators w/TNMC...
Page 18 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ FB-1524-11 2 Total H8’-0”, W18’-0”, D6” 520 lb 560 W 120/240 V AC 4.7 A Indicators w/TNMC...
Page 19 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ FB1630-11 2 Total H8’-0”, W25’-0”, D6” 600 lb 395 W 120 V AC 3.3 A Clock (2438 mm, 7620...
Page 20 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ FB-1630L- 2 Total H8’-0”, W32’-0”, D6” 840 lb 695 W 120/240 V AC 5.8 A Clock 11 w/TNMC...
Page 21 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ FB-1830-11 2 Total H8’-0”, W25’-0”, D6” 640 lb 430 W 120/240 V AC 3.6 A Clock (2438 mm, 7620...
Page 22 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ FB-1830L- 2 Total H8’-0”, W32’-0”, D6” 900 lb 755 W 120/240 V AC 6.3 A Clock 11 w/TNMC...
Page 23 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ FB-2002-11 2 Total H8’0”, W20’-0”, D6” 520 lb 365 W 120/240 V AC 3.0 A (2438 mm, 6096 236 kg...
Page 24 Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ FB-2004-11 2 Total H10’-0”, W32’-0”, 880 lb 370 W 120/240 V AC 3.1 A Clock D6” (3048 mm, 400 kg 30” (762 mm) ¡ 9754 mm, 152 mm) (1672 lb) 18”...
Page 25 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ MS-2118-11 2 Total H8’-0”, W12’-0”, D6” 275 lb 370 W 120 V AC 3.1 A Clock, Score, (2438 mm, 3658...
Page 26 (Continued from previous page) Model Number of Dimensions Weight Digit Size Maximum Power Amps per Driver Sections (Height, Width, Uncrated Wattage Line Number Depth) (Crated) (Single Phase) Address ¡ SO-1624-11 2 Total H8’-0”, W18’-0”, D6” 440 lb 385 W 120/240 V AC 3.2 A Indicators (2438 mm, 5486...
Page 27: Component Locations
Component Locations; FB-2001-11 A-162141 FB-2001-11 TNMC Component Locations, FB-2001-11 w/LED TNMC A-172659 FB-2002-11 Component Locations; FB-2002-11 A-162558 FB-2003-11 Component Locations; FB-2003-11 A-162738 FB-2004-11 Component Locations; FB-2004-11 A-162146 FB-2004-11 TNMC Component Locations; FB-2004-11 w/LED A-177842 (Continued on next page) Component Locations...
Page 28 (Continued from previous page) Model Drawing Title Drawing MS-2009-11 Component Locations; MS-2009-11 A-163509 MS-2118-11 Component Locations; MS-2118-11 A-163616 MS-2918-11 Component Locations; MS-2918-11 A-172038 SO-1424-11 Component Locations; SO-1424-11 A-161277 SO-1624-11 Component Locations; SO-1624-11 A-162857 SO-1830-11 Component Locations; SO-1830-11 A-162948 SO-1830L-11 Component Locations; SO-1830L-11 A-163055 SO-1930-11 Component Locations, SO-1930-11...
Page 29: Schematics
Section 5: Schematics Reference Drawings: Schematic, Gen II Outdoor LED, 16 Column Drvr ....... Drawing A-154330 Schematic; Gen II OD LED, 3 Drvr, Multi-Sect & TNMC...... Drawing A-158084 Schematic; LED TNMC, Gen II............Drawing A-158552 Schematic; Gen II, OD LED, 1 Drvr Display & TNMC......Drawing A-159419 Schematic;...
Page 30 Schematic; Gen II, OD LED, 2 Drvr Display & TNMC A-160547 FB-2004-11 Schematic; Gen II, OD LED, 2 Drvr Display A-159999 FB-2004-11 w/TNMC Schematic; Gen II, OD LED, 2 Drvr Display & TNMC A-160547 MS-2009-11 Schematic; Gen II, OD LED, 2 Drvr Display...
Page 31: Mechanical Installation
Scoreboard Protective Devices K Note: Some users install devices to protect the scoreboard from projectiles. Scoreboard protection devices not provided by Daktronics must be approved by Daktronics prior to installation. Failure to follow this approval procedure will void the scoreboard warranty.
Page 32 FB-1630L-11, FB-1830L-11, Beam & Footing Recommendations, FB- A-158779 SO-1830L-11 XX30L Beam Spacings, Football/Track/Soccer A-70089 Structure, Football A-44556 FB-2001-11, FB-2004-11 Beam and Footing Recommendations, FB- A-160931 200X Beam Spacings, Football/Track/Soccer A-70089 Structure, Football A-44556 FB-2002-11, FB-2003-11 Installation Specifications, FB-2002 & FB...
Page 33 The columns and footings and all connection details must be designed and certified by a professional engineer licensed to practice in the state in which scoreboard will be installed. Daktronics does not assume any liability for any installation derived from the information provided in this manual or for those designed and installed by others.
Page 34: Lifting The Scoreboard Or Optional One- Or Two-Line Message Center
The eyebolts are located along the top of the cabinet for each scoreboard or scoreboard section. Daktronics strongly recommends using a spreader bar, or lifting bar, to lift the display. Using a spreader bar ensures that the force on the eyebolts is straight up, minimizing lifting stress. Lifting methods are shown in Figure 3 and in Drawing A-44548.
Page 35: Scoreboard Mounting
In typical multi-section installations, the lower scoreboard section is installed first and secured to the support beams, and then the upper section is placed atop or above the lower section and attached to the beams. There may be cables extending from the top of the lower section. Guide these cables into the hole in the bottom of the upper section for later connection.
Page 36: Optional One- Or Two-Line Message Center Mounting
Mount the ad panel or ad panels in the following manner: 1. Use the mounting channel to determine which hole combination to use. Be sure to keep the bolts as close to the beam as possible. 2. Using the mounting channel as a template, drill 9/16" holes in the upper and lower rear flange of the ad panel where the supports will go.
Page 37: Electrical Installation
Schematic; Gen II Outdoor LED, 16 Column Drvr ....... Drawing A-154330 Daktronics outdoor LED scoreboards have been designed for easy access to components, and the power and control signal hookup has been simplified. Front panels are removable to allow access to the digits, cabling, and other electronic components.
Page 38: Grounding
Schematic; Gen II Outdoor LED, 16 Column Drvr....Drawing A-154330 Displays MUST be grounded according to the provisions outlined in Article 250 of the National Electrical Code and according to the specifications in this manual. Daktronics recommends a resistance-to-ground of 10 ohms or less.
Page 39: Power And Signal Connection
Figure 5 illustrates the printed circuit board and the terminal blocks. For signal cable, Daktronics recommends, as a minimum, single-pair, shielded cable, 22 AWG (Daktronics part number W- 1077). Two-pair shielded cable (Daktronics part W-1234) is preferred.
Page 40: Interconnect Panel Connections
Interconnect Panel Connections Reference Drawing: Interconnect Panel Digit Designation ........Drawing A-174754 All multi-section football and soccer scoreboards use an interconnect panel as a connection between the digits of the top section and their corresponding driver. Because one driver runs the top section of the board, while the other driver runs the bottom section, only the top section digits use an interconnect panel.
Page 41: Scoreboard Maintenance And Troubleshooting
Section 9 or the service manual that accompanies those units. Cabinet Specifications Cabinets for the Daktronics outdoor LED scoreboards are constructed of heavy-gauge aluminum. Exact dimensions and weights for each model are listed in the chart in Section 3. Removable panels for digits and indicators and for component access are detailed in each model's component locations drawing, listed in Section 4.
Page 42: Replacing A Digit
Component placement varies with each scoreboard model; consult the model-specific component locations drawing to determine the layout for your scoreboard. With a non-digit access panel, simply remove the top, side, and bottom screws holding it in place. As noted previously, some access panels are hinged doors and swing open when the screws are removed or loosened.
Page 43: Replacing A Digit Segment
Replacing a Digit Segment Reference Drawing: 30" Amber LED Digit Assembly ..........Drawing A-161254 When a digit malfunctions, in most cases it is necessary to replace the entire digit circuit board. Some larger digits (24", 30", 36"), however, are constructed in segments (see Figure 9), and it may be possible to make repairs by removing only the defective segment.
Page 44: Replacing A Driver
6. Follow steps 1 through 5 in reverse order to attach a new driver. Schematics Refer to Section 5 for a complete listing of the schematics for the Daktronics multi-section outdoor LED scoreboards. The drawings diagram the power and signal inputs and all wiring for each scoreboard model.
Page 45: Segmentation And Digit Designation
For the scoreboard to receive signal and function properly, the driver must be set to the correct address. This address is set with jumper wires in a 12-pin plug which mates with a jack on the driver. Drawing A-134371 details the specifications for the 16-column driver. Refer to Drawing A-115078 for a listing of the wire/pin connections for driver addresses 1 - 128.
Page 46: Lightning Protection
The same surges that may damage the scoreboard's driver can also damage the console's circuit. Replacement Parts Refer to the following table for Daktronics scoreboard replacement parts. (Refer to the appropriate manual for a listing of parts required for the service of optional message centers.) Daktronics...
Page 47: Daktronics Exchange And Repair And Return Programs
To serve customers' repair and maintenance needs, Daktronics offers both an Exchange Program and a Repair and Return Program. Daktronics' unique Exchange Program is a quick, economical service for replacing key components in need of repair. If a component fails, Daktronics sends the customer a replacement, and the Scoreboard Maintenance and Troubleshooting...
Page 48 Help Desk – 877-605-1115 – if you have questions regarding the Exchange Program or any other Daktronics service. When you call the Daktronics Help Desk, a trained service technician will work with you to solve the equipment problem. You will work together to diagnose the problem and determine which exchange replacement part to ship.
Page 49 This is how to reach us: Mail: Customer Service Daktronics, Inc. PO Box 5128 331 32nd Ave Brookings SD 57006 Phone: Daktronics Help Desk: 877-605-1115 (toll free) or 605-697-4036 Fax: 605-697-4444 E-mail: helpdesk@daktronics.com Scoreboard Maintenance and Troubleshooting...
Page 51: Team Name Message Center Maintenance
Standard Daktronics outdoor LED scoreboards are typically front-accessible, but some models may be ordered with rear service access. Consequently, Daktronics team name message centers have been designed so that they may be accessed from both the front and rear for easy maintenance and repair of internal components.
Page 52: Signal Summary
Signal Summary Reference Drawing: Control Layout; Outdoor LED TNMC ........... Drawing B-107507 Refer to Drawing B-107507 for complete information on TNMC signal routing. From signal input from the All Sport controller, routing can be summarized as follows: 1. Data from the display controller travels via cable harness into the display. 2.
Page 53: Tnmc Current Loop Interface Card
Component Part Number Location TNMC CLI card 0A-1146-0020 Behind modules, on TNMC back panel. Refer to Drawing A-145045. TNMC controller 0A-1146-0061 Behind modules, on TNMC back panel. Refer to Drawing A-145045. Modules 0A-1208-3002 Over entire face of the TNMC. Refer to Drawings A-159055 and A-159081.
Page 54 switches are located on the controller's MDC (see preceding illustration). These DIPswitches set the hardware address that the software uses to identify that particular display. When replacing a controller board, be sure to set the DIP switches in the same address configuration as the defective controller.
Page 55: Modules And Drivers
Removing/Changing the Controller Complete the following steps to remove the controller from the display. 1. To access the controller from the front, unlatch the latch fasteners on the LED module. (The fasteners may be referred to as "latch plugs" on the drawings). One is centered below the top row of pixels and one is centered above the bottom row.
Page 56: Power Supplies
To access the controller from the rear of the TNMC, remove the right rear-access panel from the TNMC by loosening all four of the screws. Slide the access panel sideways to the larger keyhole and carefully lift it off the TNMC. Take care not to drop the panel, and remember that the module controller is attached to the panel.
Page 57: Weatherstripping
Removing/Changing a Power Supply Complete the following steps to remove a power supply from the display: 1. See the directions above in the Module and Drivers subsection for information on how to access the component from the front or rear. 2.
Page 58: Initialization Information At Startup
Symptom/Condition Possible Cause/Remedy ¡ One or more LEDs on a single module Check/replace the ribbon cables on the module. ¡ fails to light Replace the module. ¡ One or more LEDs on a single module Check/replace the ribbon cables on module. ¡...
Page 59 W-1234 Electrical contact cleaner/lubricant (CaiLube) CH-1019 To prevent theft Daktronics recommends purchasing a lockable cabinet to store manuals and replacement and spare parts. Refer to Section 8.9 for information on the Daktronics Exchange and Repair and Return programs. TNMC Maintenance...
Page 61: Scoreboard Options
Section 10: Scoreboard Options This section lists information on optional equipment for the outdoor LED scoreboards. 10.1 Football Scoreboard Accessories The following options are available for the Daktronics football scoreboard. They make the scoreboard more adaptable to scoring and timing needs: ¡...
Page 62: 10.3 Trumpet Horn
An optional caption changer is available for installing and removing panels from the ground. Each caption panel is punched with keyholes. Screw heads on the crossbar of the caption changer fit into the keyholes. The caption changer pole consists of three sections, with a ring tightener to adjust for length.
Page 63: Dc Trumpet Horn Installation (Externally Mounted)
5. Close and secure the access panel. 6. Screw the trumpet into the horn body. The trumpet will tilt down about 10 degrees to allow moisture drainage. 7. Connect to power to the scoreboard. 8. Connect the control console to the scoreboard. 9.
Page 64: 10.4 Radio Control
10.4 Radio Control Radio control is an option with all Daktronics outdoor LED scoreboards, the system providing display control via a 2.4 GHz, extra-high frequency FM signal. The radio transmitter and receiver are not standard equipment. This setup requires a control console such as the All Sport, equipped with radio output.
Page 65: Appendix A: Reference Drawings
Appendix A: Reference Drawings A Drawings Segmentation, 7 Segment Bar Digit ............Drawing A-38532 Multiple Section Football Scbd Models............Drawing A-42148 Display Mounting..................Drawing A-44412 Caption Options, Baseball & Softball............Drawing A-44431 Caption Options, Track ................Drawing A-44432 Beam & Footing Recommendations, FB-XX24 ........... Drawing A-44514 Beam &...
Page 66 Installation Specifications, MS-2918 ............Drawing A-172188 Component Locations, FB-2001-11 w/LED TNMC ........Drawing A-172659 Interconnect Panel Digit Designation; FB Displays ........Drawing A-174754 Component Locations; FB-2004-11 w/LED TNMC ........Drawing A-177842 B Drawings Control Layout; Outdoor LED TNMC............Drawing B-107507 Exploded Front, Module ................
Page 159 Appendix B: Eyebolts Eyebolts ........................ED7244 Eyebolts...
Page 161 Eyebolts Almost every display that leaves Daktronics is equipped with eyebolts for lifting the display. There are two standard sizes of eyebolts: ½″ and A″. Load Increase Factor: The load increases as the lift angle (θ) decreases. The allowable load on the eyebolts also decreases with the lift angle due the bending stress on the eyebolts.
Page 162 F. Eyebolts should never be painted or otherwise coated when used for lifting. Such coatings may cover potential flaws in the eyebolt. G. To attain the safe working loads listed for regular eyebolts, 90% of the thread length must be engaged. Copyright 1996-2001 ED-7244 Daktronics, Inc. Rev. 4 – 14 March 2001...
