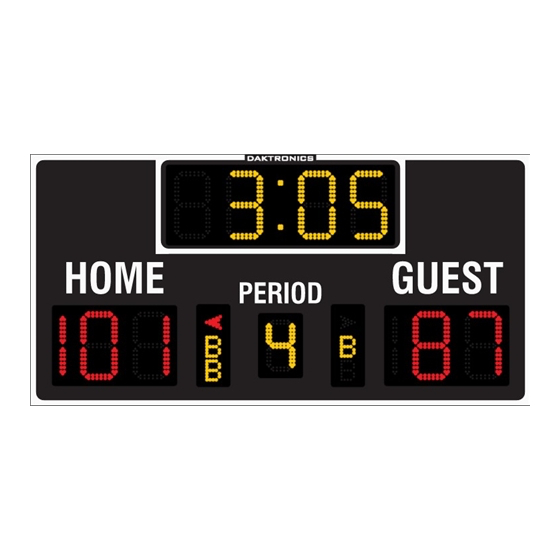

  • Page 1 BB-3123 PN-2101 TI-2200 BB-2116 BB-2144 BB-3125 SD-2101 VB-2101 BB-2117 BB-2152 BB-3142 SD-2102 BB-2119 BB-2153 H-2101 SD-2103 BB-2121 BB-2155 H-2102 SD-2104 * ColorSmart or compatible model 201 Daktronics Drive PO Box 5128 Brookings, SD 57006-5128 Tel: 1-800-DAKTRONICS (1-800-325-8766) Fax: 605-697-4746 www.daktronics.com/support...
  • Page 3 – without written permission of the publisher. ® ® ® All Sport , ColorSmart , and Tuff Sport are trademarks of Daktronics, Inc. Other trademarks used in this manual are the property of their respective owners.

  • Page 5: Table Of Contents

    H-2103 Power/Signal Connection ................11 Shot Clock Signal Connection ..................... 11 Lightning Protection ......................11 Section 4: Daktronics Exchange and Repair & Return Programs ..........13 Exchange Program ........................ 13 Before Contacting Daktronics..................13 Repair & Return Program ....................14 Shipping Address ......................
  • Page 6 Appendix A: Specifications ........................17 Appendix B: Reference Drawings ......................19 Appendix C: Daktronics Warranty and Limitation of Liability ............21 Table of Contents...

  • Page 7: Introduction

    All Sport 5000 Series Control Console Operation Manual (ED-11976)  Remote Control System RC-100 All Sport Operation Manual (ED-15133) Daktronics ColorSmart scoreboards are only compatible with the All Sport 5500 series control console. Refer to the manual below:  All Sport 5500 Series Control Console Operation Manual (ED-16809) Sport Codes Below is a table of common sport codes.

  • Page 8: Troubleshooting

    Drawing C-325405. Figure 2: Daktronics Drawing Label Daktronics identifies manuals by the DD or ED number located on the cover page of each manual. For example, this manual would be referred to as DD2481645. Product Safety Approval Daktronics indoor scoreboards are ETL-listed, tested to CSA standards and CE-labeled for indoor use.

  • Page 9: Mechanical Installation

    Be sure that the installation complies with local building codes. Note: Daktronics does not assume any liability for any installation derived from the information provided in this manual or installations designed and installed by others. Lifting the Scoreboard...

  • Page 10: Scoreboard & Statistics Display Mounting

    Appendix A. Due to the variety of wall materials used in sports facilities, Daktronics cannot anticipate a user’s individual installation needs or provide mounting hardware suitable for every installation. Choose a method of installation that will safely support the weight of the display.

  • Page 11: Corner Mounting

    Refer to Drawing A-91230 in Appendix B for shot clock mounting information. Note: Daktronics does not supply the hardware or brackets to mount shot clocks to backstops and is not responsible for the integrity of suitability of mounting systems manufactured and installed by others.

  • Page 13: Electrical Installation

    It is the responsibility of the electrical contractor to ensure that all electrical work meets or exceeds local and national codes. Daktronics engineering staff must approve all changes or the warranty will be void. Installation Overview The diagram shown in Figure 6 illustrates a typical wired setup between a scoreboard and the control system.

  • Page 14: Power

    Connect the scoreboard to earth ground. Proper grounding assures reliable equipment operation and protects the equipment against damaging electrical disturbances and lightning. Daktronics recommends a resistance-to-ground of 10 ohms or less. The electrical contractor performing the electrical installation can verify ground resistance. Daktronics Sales and Service personnel can also provide this service.

  • Page 15: Power-On Self-Test (Post)

    (J-box) near the display. Refer to Figure 6 for typical signal layout. Refer also to Drawings A-28124 and A-125316 in Appendix B for signal wire connection. At a minimum, use a paired, 22 AWG shielded cable (Daktronics part # W-1077) and connect the cable to a dual "...

  • Page 16: Bb-2117 & Bb-2119 Signal Connection

    BB-2117 & BB-2119 Power/Signal Connection Route the interconnect cable (P51) located in the left side of the BB-2117/BB-2119 up through the hole in the top of the cabinet into the hole in the bottom of the BB-2116 and connect to a mating interconnect cable (J51).

  • Page 17: H-2103 Power/Signal Connection

    H-2103 Power/Signal Connection H-2103 hockey scoring modules must receive power and signal from an H-2102 or H-2115. H-2103 modules may be placed above, below, or beside other scoreboard sections and are equipped with digit jacks on both the top and the bottom of the cabinet. Connect the two DIGIT INPUT jacks (J11 and J12) to the matching DIGIT OUTPUT jacks (J11 and J12) using the included 9-pin to 9-pin cables.

  • Page 19: Daktronics Exchange And Repair & Return Programs

    The Daktronics Exchange Program is a service for quickly replacing key components in need of repair. If a component fails, Daktronics sends a replacement part to the customer who, in turn, returns the failed component to Daktronics. This decreases equipment downtime.

  • Page 20: Repair & Return Program

    Repair & Return Program For items not subject to exchange, Daktronics offers a Repair & Return Program. To send a part for repair, follow these steps: Call or fax Daktronics Customer Service: Refer to the appropriate market phone number in the chart on the previous page.

  • Page 21: Scoreboard Options

    Visual Horn Indicator (VHI) In addition to the horn, Daktronics offers a visual horn indicator (VHI) that lights up when the buzzer sounds. To install a VHI, users must tap into the existing horn wiring to provide power and signal.

  • Page 22: Light Strips

    For more information about TNMCs or electronic captions, contact a Daktronics representative or refer to the service manual listed in Section 1.2.
  • Page 23 (replace “DD#######” with one of the Spec Sheet numbers shown below). Note: Refer to Figure 1 to determine a scoreboard’s model number. Model Spec Sheet Model Spec Sheet Model Spec Sheet DD2481847 DD2481927 DD2541499 BB-2101 BB-2143 H-2106 DD2481852 DD2481929 DD2541505 BB-2103 BB-2144 H-2108 DD2481855 DD2061941...
  • Page 25 Appendix B: Reference Drawings Drawing Title Drawing Number Signal Connection; Installation ....................A-28124 Backstop Mounting Suggestions ....................A-91230 Wiring for Shot Clock on Portable Backstop ................A-98293 Block Diagram: AS5000 BB- VB and WR #1 ................A-124686 Block Diagram: AS5000 BB- VB and WR #3 ................A-124688 Block Diagram, A/S 3000 or 5000 Hockey ................
  • Page 31 ADDED CORRECT SIGNAL ROUTING FOR SCBD WITH DATE: STATS PANELS. 02 MAR 12 DATE:...
  • Page 32 THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS DAKTRONICS, INC. DRAWING ARE CONFIDENTIAL AND PROPRIETARY. DO NOT REPRODUCE BY ANY MEANS WITHOUT THE EXPRESSED WRITTEN CONSENT OF DAKTRONICS, INC. COPYRIGHT 2012 DAKTRONICS, INC. ALL SPORT 5000 BLOCK DIAGRAM: A/S5000 HOCKEY E BRAVEK...
  • Page 39 TEAM NAME/ELECTRONIC CAPTION MOUNTING AREA ON SCOREBOARD TNMC CAPTION BASE TNMC CAPTION PANEL 8-32 X .5" SCREW 1144 NOTE: ALIGN CAPTION CENTER HORIZONTALLY NUTSERT BASED ON SCOREBOARD AND 8-32 X .5" SCREW 1269 1144 CLOSEST ALIGNMENT HOLE. CENTER CAPTION VERTICALLY. PROCEDURE: 1.
  • Page 40 INSTALL THE EYEBOLTS IN HOLES IN THE ANGLES AND SECURE WITH LOCK NUTS. ATTACH SUSPENSION CABLES TO EACH EYEBOLT WITH A SHACKLE (CLEVIS) AND PIN. DAKTRONICS RECOMMENDS THAT TWO CABLES BE USED AT EACH END OF THE SCOREBOARD FOR REDUNDANCY. CABLES DIVERGE TO MINIMIZE SWINGING.
  • Page 41 Appendix C: Daktronics Warranty and Limitation of Liability Daktronics Warranty and Limitation of Liability...
  • Page 43 WARRANTY AND LIMITATION OF LIABILITY This Warranty and Limitation of Liability (the “Warranty”) sets forth the warranty provided by Daktronics with respect to the Equipment. By accepting delivery of the Equipment, Purchaser agrees to be bound by and accept these terms and conditions. All defined terms within the Warranty shall have the same meaning and definition as provided elsewhere in the Agreement.
  • Page 44 In no event shall Daktronics be liable to Purchaser or any other party for loss, damage, or injury of any kind or nature arising out of or in connection with this Warranty in excess of the purchase price of the Equipment actually delivered to and paid for by the Purchaser.
