1.

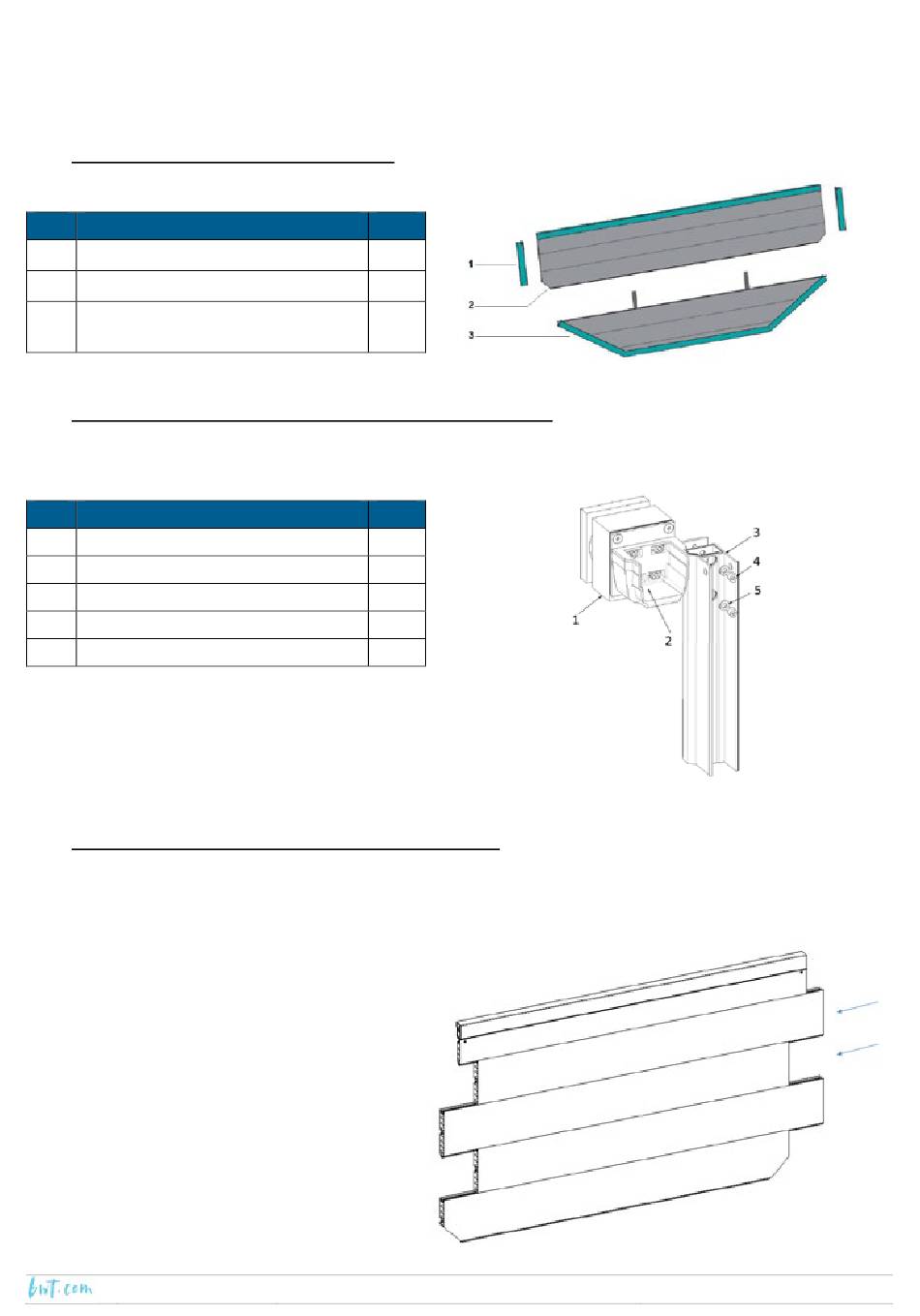

Description of the product

Ref Description
1
Pit wall mounting flange
2
Straight separating pit wall
3
Separating pit wall cut to fit shaped
walls (e.g. trapezoidal)
2.

Mounting the pit wall mounting flanges

The vertical profiles are fastened to the beam mounting units.
Ref Description
1 Inéo beam shoe mounting unit
2 Beam shoe
3 Pit wall vertical profile, LH + RH
4 HSHC screw M 8 x 10 A4 SS
5 Washer Z 8 A4 SS
3.

Assembling the separating pit wall

Avoid assembling the pit wall on very windy days.
3.1.

Straight wall

The various panels fit together by a tongue and
groove mechanism (sliding). Orient the panels
such that the notch faces the cover pit for aesthetic
purposes.
PROTECTION & SAFETY

SEPARATING PIT WALL

Qty
2
1
1
Qty
-
-
1+1
4
4
22 2021/07 - Version: C - Code : 34681
