Motor Drive System; Materials Provided; Installing The Motor - BWT STARDECK INEO Installation And Maintenance Instructions Manual

1.

Materials provided

‐ Motor with connection box
‐ Automatic cover control panel
‐ Motor pin
‐ U-shaped pin
‐ Flywheel (in the case of an AQUAMAT motor)
2.

Installing the motor

Orient the groove in the shaft upwards.
Insert the motor pin in the shaft groove.
Put the motor in position by aligning the pin with the groove in the hollow shaft.
Push it in fully. If there is resistance, check that the motor pin is correctly positioned.
Put the U-shaped pin in position, making sure that it protrudes from the bottom of the throughwall flange.

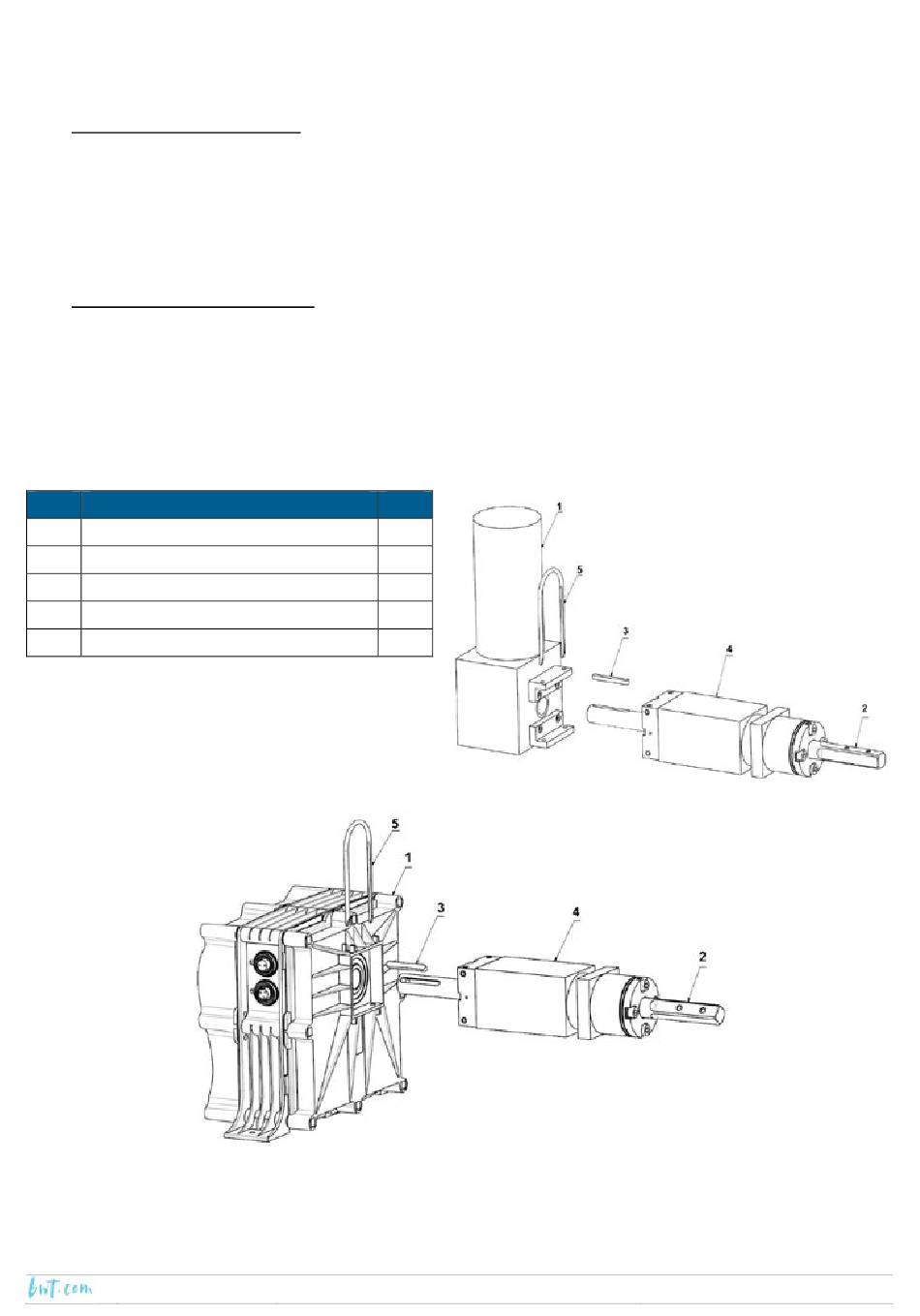

Ref Description
1 Aquamat or PL3 motor
2 SS shaft Ø30 mm
3 Motor pin
4 Stardeck throughwall flange
5 U-shaped pin
PROTECTION & SAFETY

MOTOR DRIVE SYSTEM

Qty
1
1
1
2
2
14 2021/07 - Version: C - Code : 34681
