8.

The electrical panel

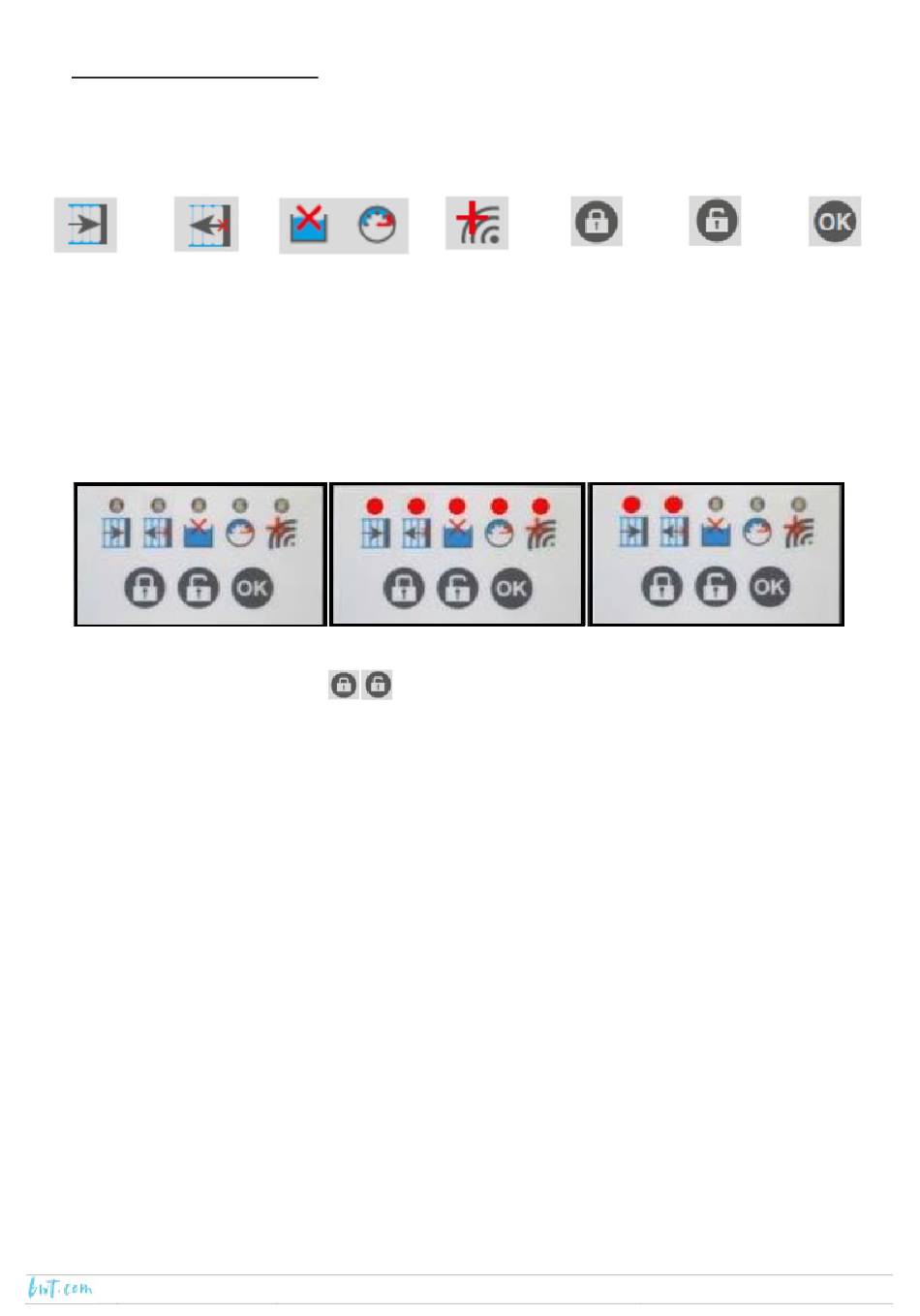

This panel features 3 buttons and 5 LEDs, as described in the table below.
As regards the first 2 LEDs, blinking signifies that learning is underway, while a fixed light indicates that learning
must be carried out (for the first two LEDs).
If the 5th LED is lit up, this means that there is a fault on the motor sensor signal line.
Ends of Not used
travel
The PCB automatically manages stopping of the cover apron when it is fully opened or closed. The exact
positions must be established and saved when the cover is commissioned according to following procedure and
steps. These positions may be altered at any time by following the same procedure.
8.1.

Initialisation of the printed circuit board

On the control panel, all the LEDs are out.
Hold these keys down for 5 seconds:
All five LEDs will blink.
Press OK briefly.
The first two LEDs will light up, initialisation is complete.
8.2.

Validation of the direction of rotation of the axle

Insert the key into the key switch. When the key is turned to FERM, the cover apron should roll out over the pool.
When turned to OUV, the cover apron should roll up around the axle.
NOTA BENE: it is normal for the key to return to the 0 position when it is released.
If the direction of rotation is inversed with respect to the markings on the key switch, change the position of
dipswitch 1 (see above) on the printed circuit board.
PROTECTION & SAFETY
Not used Motor
sensor
signal
19
Validation of Validation of
the closed the open
position position
2021/07 - Version: C - Code : 34681
Validation of
the step
performed
