1.

Axle, diameter 150 or 180 mm

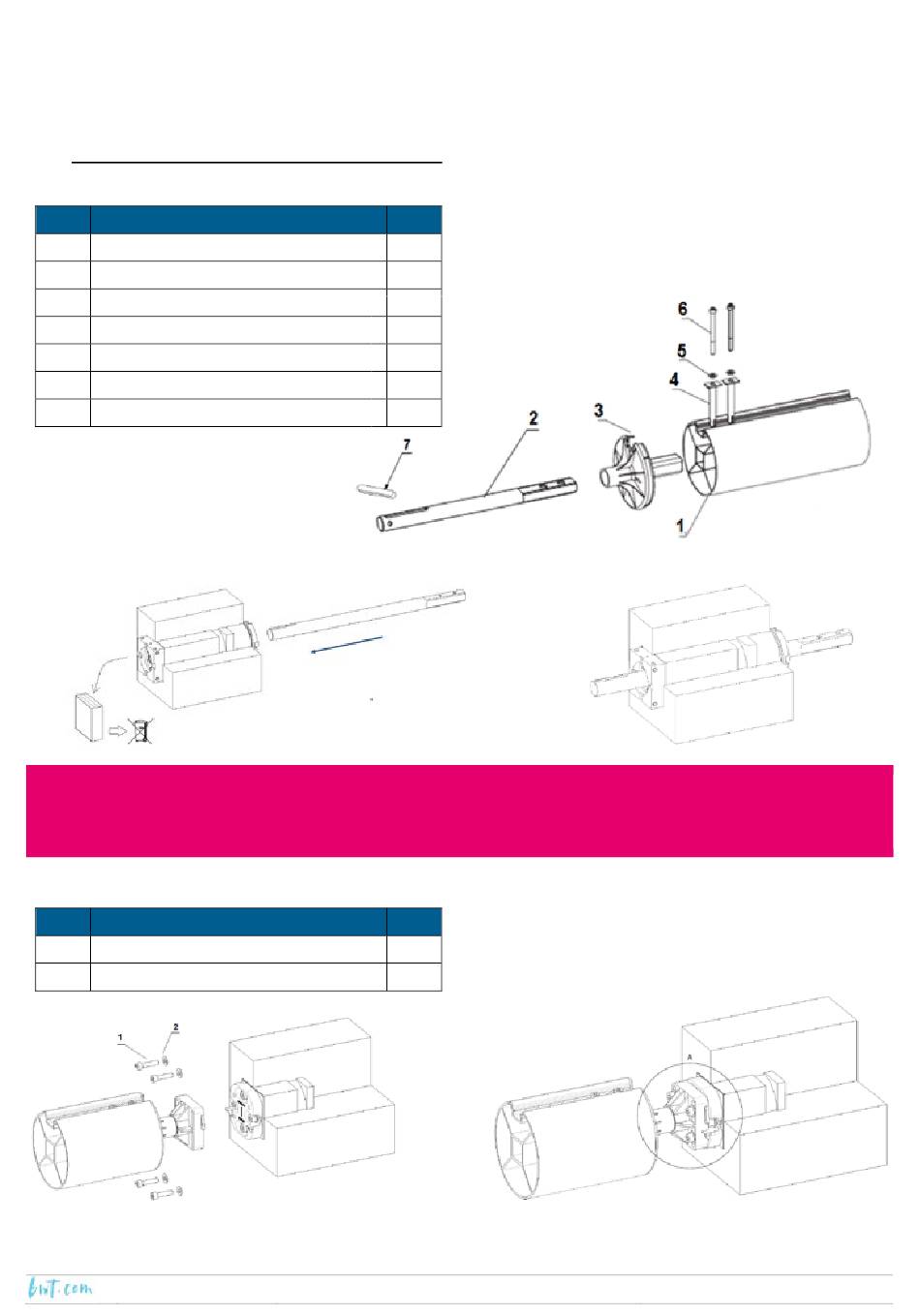

Product presentation
Ref Description
1 Aluminium axle Ø150 or Ø180
2 SS shaft
3 Axle end piece
4 Locking cannula
5 M8 washer A4 SS
6 HSHC screw M8x65 A4 SS
7 Protective pin
Feeding the stainless steel shaft through the throughwall flange from the pool to the motor pit
The protective pin must be left in place when feeding the stainless steel shaft through
Mounting the axle on the bearing
Ref Description
1 HSHC screw M8x35 A4 SS
2 M8 washer A4 SS
Do not block the screws
PROTECTION & SAFETY

STARDECK AXLE

Qty
1
1
1
2
2
2
1
CAUTION
the throughwall flange to avoid cutting the gaskets.
Qty
4
4
11 2021/07 - Version: C - Code : 34681
