The cables connected to the Aquamat motor must form a loop lower than the motor connectors to avoid
7.

Setting and programming ends of travel

The ends of travel are managed by a printed circuit board. An electrical panel is used to program the ends of
travel.
7.1.

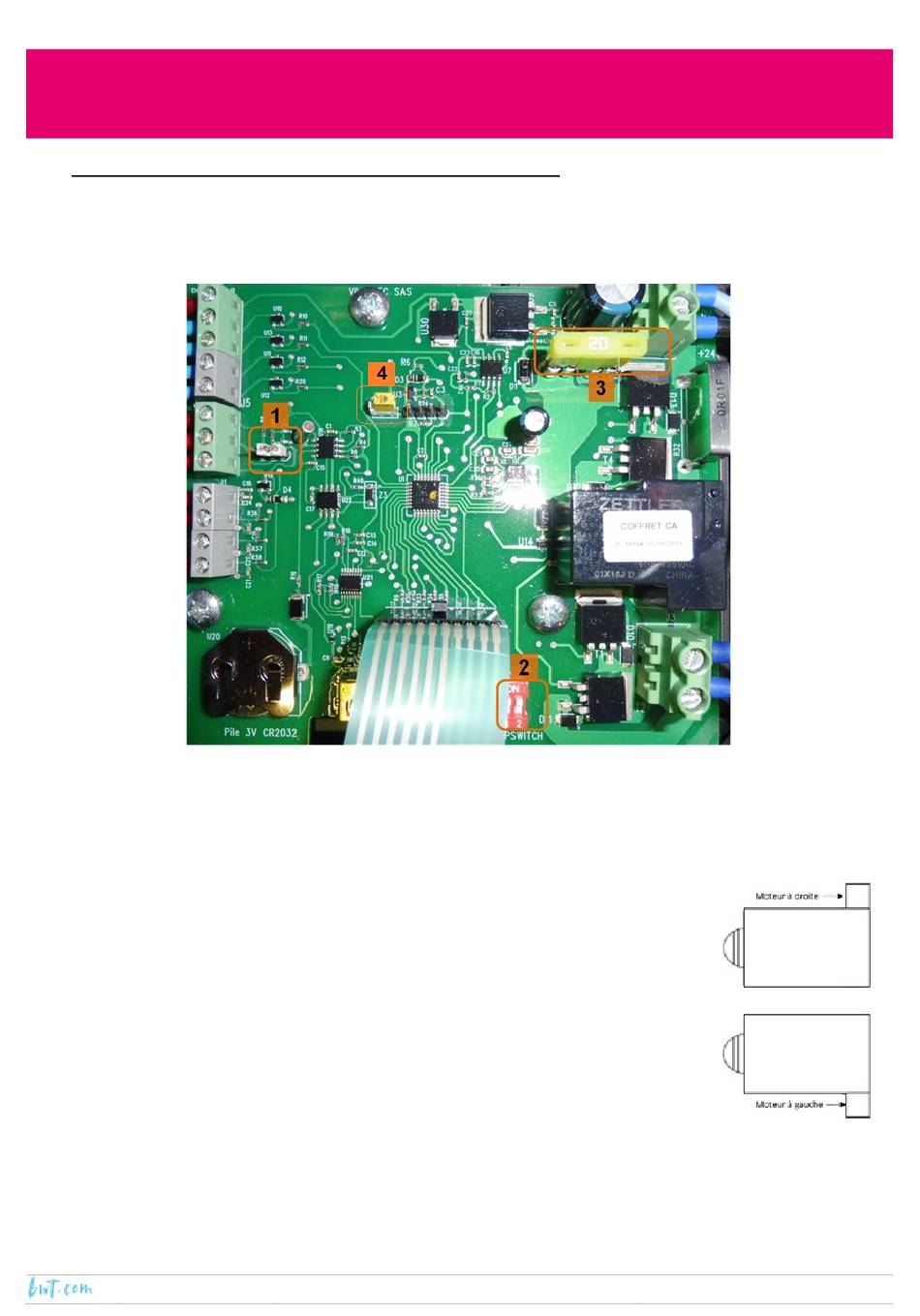

The printed circuit board

Number 1: Jumper
There are two possible positions for the jumper, the position is selected depending on the motor drive system.
In the case of an AQUAMAT motor, the jumper connects the
Number 2: Dipswitch
Dipswitch number 1 is used to change the direction of rotation of the motor, this will
depend on the side of the pool on which the motor is located (refer to the figure opposite):
‐ Motor on the right-hand side: dipswitch 1 should be set to OFF
‐ Motor on the left-hand site: dipswitch 1 should be set to ON
Dipswitch number 2 should always be set to ON.
Number 3: Fuse
The board should never be fitted with a fuse with a rating above 20 A. The use of a fuse
rated for the automatic cover motor is highly recommended.
In the case of an AQUAMAT motor,
Number 4: Reset
This is used to reset the PCB.
PROTECTION & SAFETY
CAUTION
water infiltrations.
place the 10 A fuse (supplied) on the PCB.
