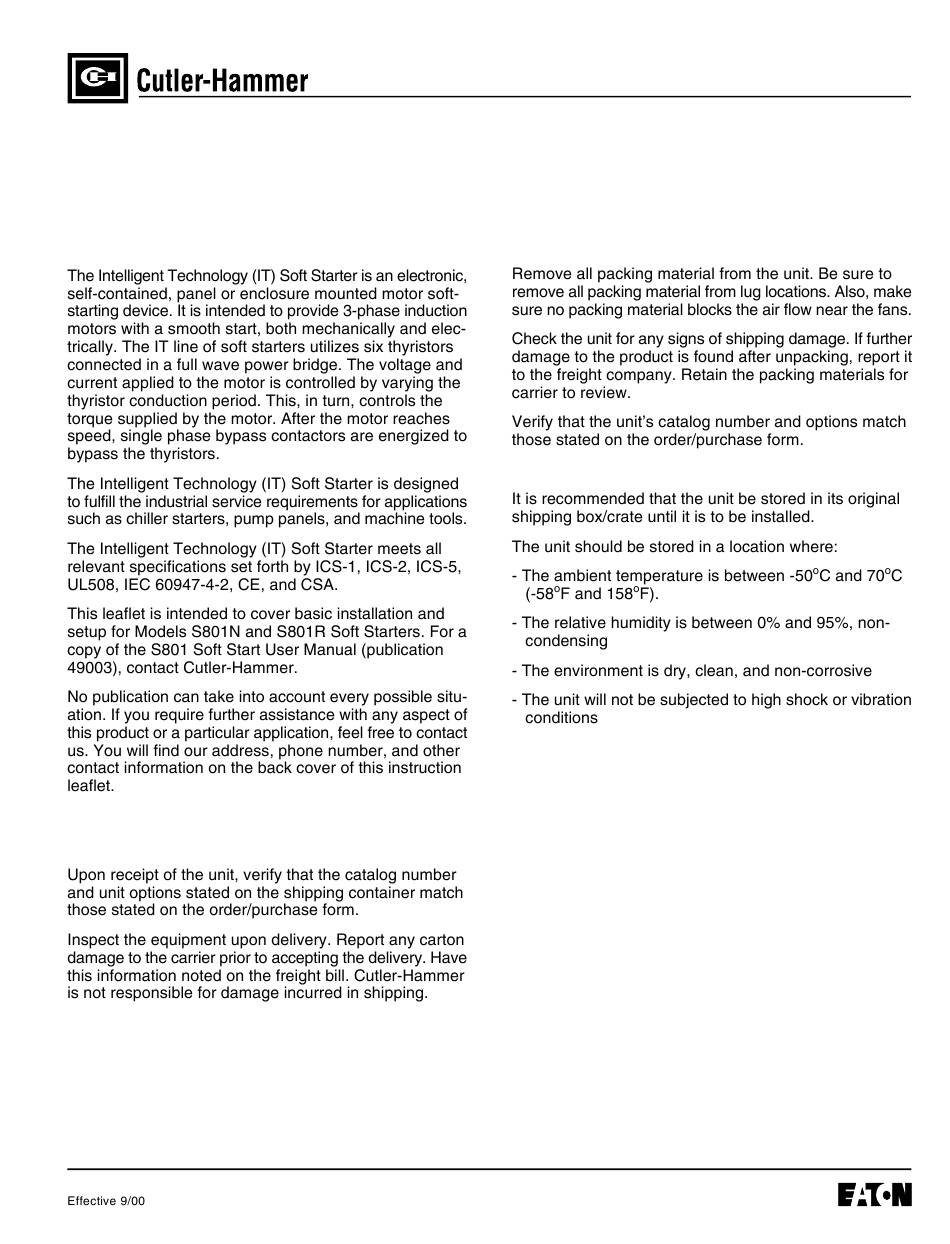

- Page 1 All manuals and user guides at all-guides.com Pub 49004 Revision F Cutler-Hammer Intelligent Technology (IT) S801N and S801R Soft Starter Models Quick Setup Guide Unpacking Introduction Storage Inspection General...
- Page 2 All manuals and user guides at all-guides.com Pub 49004 Mounting Dimensions Fig. 1 Model S801N (65mm) Fig. 2 Model S801R (110mm) Table 1 Required Mounting Hardware Frame Screw Washer Quantity Torque Size Size Size Required Required Table 2 Weight Support Requirements Frame Size Weight of Unit...
- Page 3 All manuals and user guides at all-guides.com Pub 49004 Table 3 Environmental Requirements Operating Temperature Range Storage Temperature Range Elevation Humidity Operating Orientation Pollution Degree IEC 947-1 Shock Resistance Vibration Resistance Mounting Instructions for Models S801N and S801R WARNING TO AVOID SHOCK HAZ- ARD, DISCONNECT ALL AVERTISSEMENT POWER BEFORE ANY...
- Page 4 All manuals and user guides at all-guides.com Pub 49004 Fig. 5 Terminal Board Fig. 4 Elementary Diagram for Soft Starter with CAUTION HAND/OFF/AUTO/RESET with PLC Shown with 120VAC Alarm and Run Indication THERE CAN BE LINE VOLTAGE POTENTIAL AT THE MOTOR LOAD TERMINALS EVEN WITH THE START- Power Wiring ER IN THE OFF STATE.
- Page 5 All manuals and user guides at all-guides.com Pub 49004 Table 4 Control Wiring Inputs Name Terminal Board Default Input Designation Providing Control Power CAUTION APPLY ONLY 24VDC TO CONTROL TERMINAL BOARD UNLESS SPECIFIED OTHERWISE IN THIS MANUAL. ALL CONTROL WIRING IS 22 - 12 AWG. FAILURE TO FOLLOW THIS CAUTION COULD RE- SULT IN SEVERE DAMAGE TO THE CONTROLLER.
- Page 6 All manuals and user guides at all-guides.com Pub 49004 Procedure for Starting Protective Features, Cont’d Application Note - Permissive (P) Table 6 Protective Setting Factory Feature Default 24VDC Power Requirements Programming Settings General Table 5 Catalog Steady State Inrush Input Number Wattage Wattage...
- Page 7 All manuals and user guides at all-guides.com Pub 49004 Soft Starter Flash Codes Sent to CIM S.S. TRIP EMA71 OVERLOAD - DISABLE DISABLE STALL DISABLE PH. LOSS DISABLE PH. REV. DISABLE MANUAL RESET AUTO RESET RAMP START CURRENT LIMIT TORQUE B Y P A S S B Y P A S S START...
- Page 8 All manuals and user guides at all-guides.com Pub 49004 Ratings HP and KW Ratings Three-Phase Motor kW Rating (50 Hertz) hp Rating (60 Hertz) Frame Catalog 380-400 200V 230V 460V 575V Width Current Number Volt Volt Volt 1.0SF 1.15SF 1.0SF 1.15SF 1.0SF 1.15SF...
- Page 9 All manuals and user guides at all-guides.com Pub 49004 Three-Phase Motor Catalog kW Rating (50 Hertz) hp Rating (60 Hertz) Frame Number 380-400 200V 230V 460V 575V Width Current Volt Volt Volt 1.0SF 1.15SF 1.0SF 1.15SF 1.0SF 1.15SF 1.0SF 1.15SF 65mm 18.5 18.5...
- Page 10 All manuals and user guides at all-guides.com Pub 49004 Cutler-Hammer Solid State Reduced Voltage Motor Starter Aftermarket Services Technical/telephone support. Resident service engineers in major trading centers. Factory repair services. Warranty administration. Equipment Modification and upgrading services Training seminars. For additional information on this product, please call our Customer-Support Center at: 1-800-356-1243 For service or start-up assistance,...
