Instructional Leaflet IL03902001E

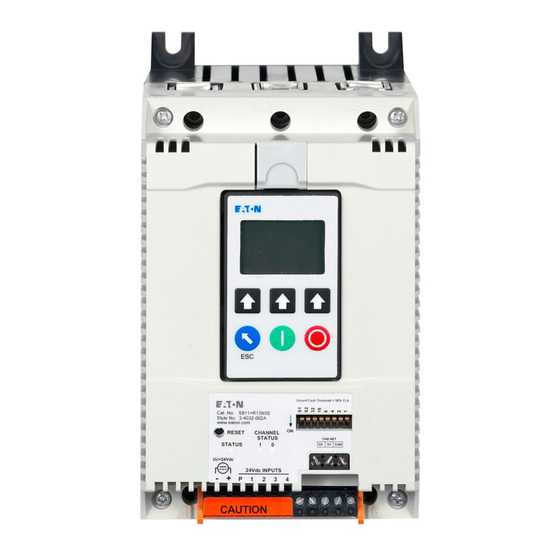

S811 quick installation guide
ONLN SS OXFDO1 H STOP
3
XXXX
XXXX
XXXX
JOG
ESC
Figure 1. Digital Interface Module
(DIM)—Display Mode
Figure 2. Typical Wiring Diagram
Status Bar
Line Currents
L1 Amp
L1 Amp
L1 Amp
Soft Key Functions
RESET
H->A
Soft Keys
Predefined Keys
Power Supply
24 Vdc
+
–
Jumper
+24V to 3
E-Stop maintained
As required per national and local electric codes
Effective February 2011
Supersedes June 2007
–
E-Stop
+
Stop
P
1
Start
2
Jog
3
4
Reset
13
In Bypass
14
95
Ready
96
Fault
98
Optional 24 Vdc
Pilot Lights
Incoming Lines
1
2
3
Disconnect
L1/1 L2/3 L3/5
24 Vdc Power
S811 Soft Starter
Inputs
24 Vdc Only
Internal
Contacts
T1/2 T2/4 T3/6
Motor
Advertisement
Table of Contents
Related Manuals for Eaton S811
Summary of Contents for Eaton S811
- Page 1 Effective February 2011 Instructional Leaflet IL03902001E Supersedes June 2007 S811 quick installation guide Status Bar ONLN SS OXFDO1 H STOP Line Currents XXXX L1 Amp XXXX L1 Amp XXXX L1 Amp Soft Key Functions RESET H->A Soft Keys Predefined Keys Figure 1.
- Page 2 Instructional Leaflet IL03902001E S811 quick installation guide Effective February 2011 Table 1. Settings for Typical Applications Factory Unloaded rock parameter Setting pump conveyor crusher compressor Configuration Menu Overload trip FLA Motor FLA Motor FLA Motor FLA Motor FLA Motor FLA...
- Page 3 S811N72N3S, S811V72V3S 265–850 S811N85N3S, S811V85V3S troubleshooting S811V10N3S 310–1000 For additional setting details, refer to the S811 User Manual 500A rating does not have IEC certification. MN03902002E available at www.eaton.com/electrical. For technical questions, please contact EatonCare at 877-ETN-CARE (386-2273). eaton corporation www.eaton.com...
- Page 4 Instructional Leaflet IL03902001E S811 quick installation guide Effective February 2011 Eaton Corporation Electrical Sector 1111 Superior Ave. Cleveland, OH 44114 United States 877-ETN-CARE (877-386-2273) Eaton.com © 2011 Eaton Corporation PowerChain Management is a registered All Rights Reserved trademark of Eaton Corporation.
