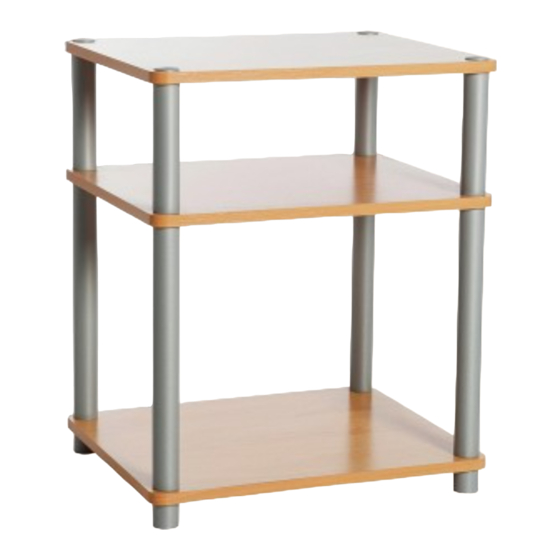

Verona hifi unit

Advertisement

Quick Links

Verona HiFi Unit
Assembly Instructions -
Dimensions
Width - 48cm
Depth - 40cm
Height - 59cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
609/5088
610/7378
issue 1 4/26/10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Verona 609/5088 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Verona 609/5088

  • Page 1 Verona HiFi Unit Assembly Instructions - 609/5088 Please keep for future reference 610/7378 Dimensions Width - 48cm Depth - 40cm Height - 59cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 issue 1 4/26/10...
  • Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Check you have all the Do not stand on the panels, this We do not components and tools listed on could cause damage. recommend the use pages 2 and 3.
  • Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below Shelf x 3 (48 x 40cm) Leg x 4 (37.1 x Ø3.5cm) Short leg x 4 (19.3 x Ø3.5cm) Foot x 4 (4.7 x 3.4cm)
  • Page 4 Assembly Instructions Step 1 Step 1 Fitting the legs Unscrew Cap screws a from the Feet Screw in Legs fix the Feet onto the shelf Screw in Short legs to fix the Shelf onto the unit.
  • Page 5 Assembly Instructions Step 2 Finishing the unit Screw in Cap screws a to fix the other Shelf onto the unit. Carefully place the unit in the desired location. Note: Before use always make sure the unit is secure. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline : 08456 400800...
  • Page 6 Components Verona HiFi Unit Simple Assembly Instructions 3 x Shelf Please keep for future reference 4 x Foot 4 x Leg 4 x Short Leg IMPORTANT Fittings 3. Take all the fittings out of the plastic bag 1. Read these instructions carefully and and separate them into their groups.
  • Page 7 Assembly Instructions Assembly Instructions Stage 1 – Stage 2 – Fitting the Legs Finishing the Unit fig. 1 1. Unscrew Cap Screws from the Feet B . See fig. 1. 1. Screw in Cap Screws to fix the other Shelf A onto the unit. See fig.
